Flexplate Or Flywheel And Crankshaft Rear Seal: Notes
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

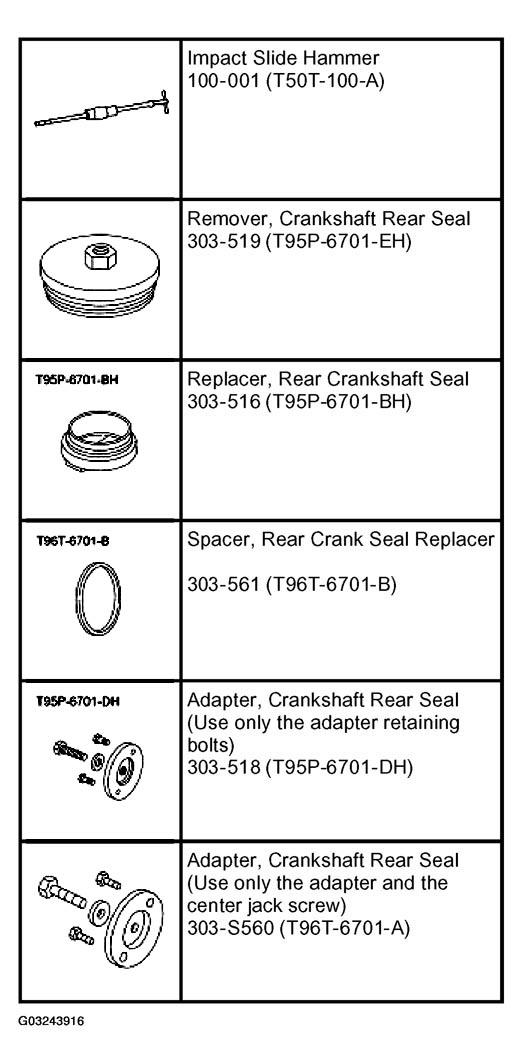

Special Tool(s)
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Super Premium SAE 5W-20 XO-5W20-QSP or equivalent | WSS-M2C153-H |
- With the vehicle in neutral, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Remove the transaxle. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .

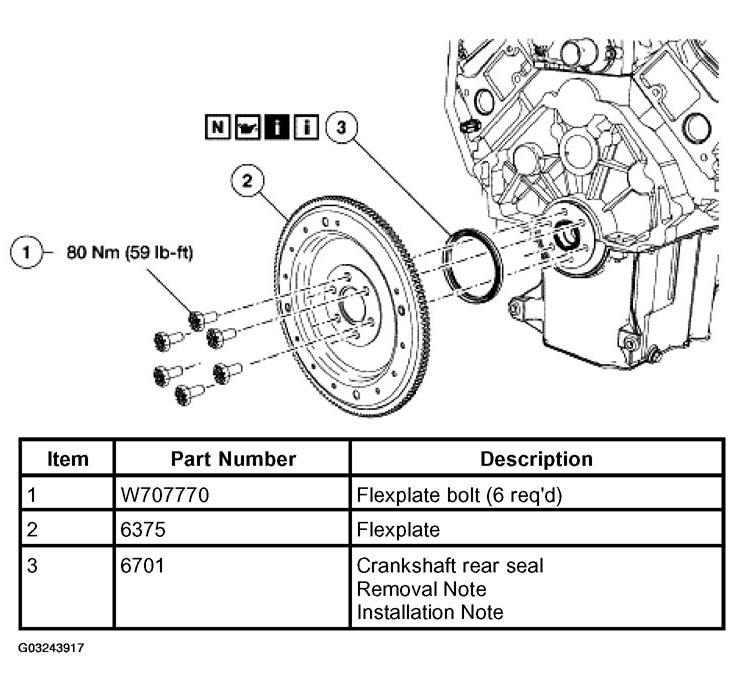

- Remove the parts in the order indicated in the following illustration.
To remove individual parts, only carry out the listed steps:
| Part | Steps |
|---|---|
| Flexplate | 1 - 2 |
| Crankshaft rear seal | 1 - 3 |
