Item 8: EGR System Module Gasket Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The EGR system module gasket sealing surfaces are soft metals.
  1. Do not reuse the EGR system module gasket. Carefully clean the EGR system module gasket sealing surfaces. Item 8: EGR System Module Gasket Installation Note
  1. Install a new EGR system module gasket with the side with the raised circle facing the intake manifold.

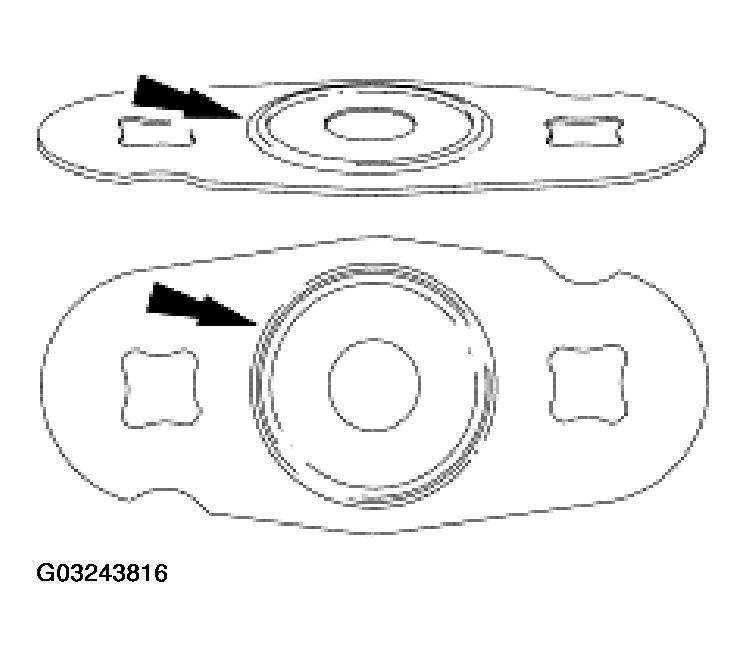

Fig 1: Identifying EGR System Module Gasket With Raised Circle Facing
G03243816Courtesy of FORD MOTOR CO.
