Items 23-17: Timing Components Installation Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

Install the timing chain tensioner and bolts.

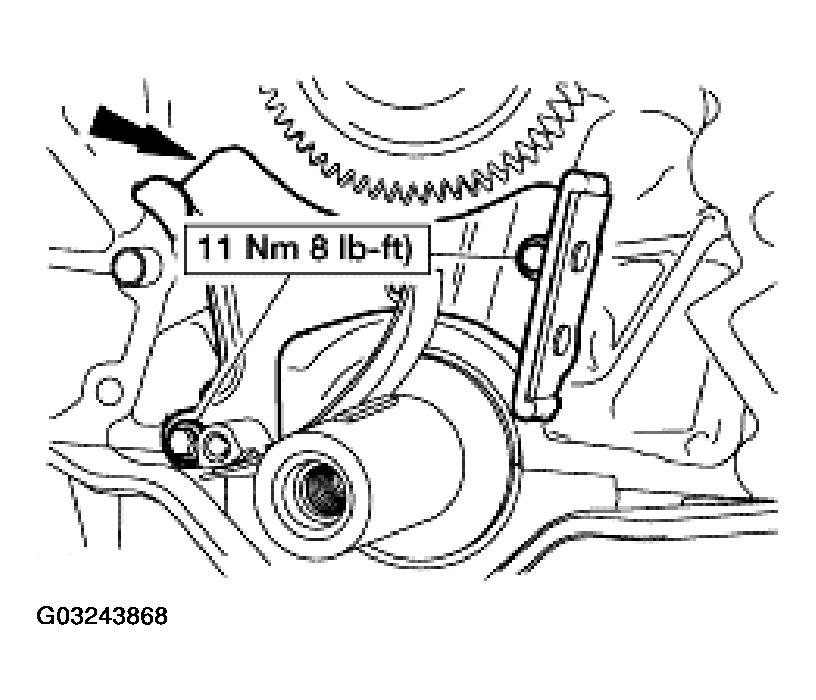

Fig 1: Installing Timing Chain Tensioner
Courtesy of FORD MOTOR CO.
If necessary, retract the tensioner pad retracting mechanism and insert a retaining pin.

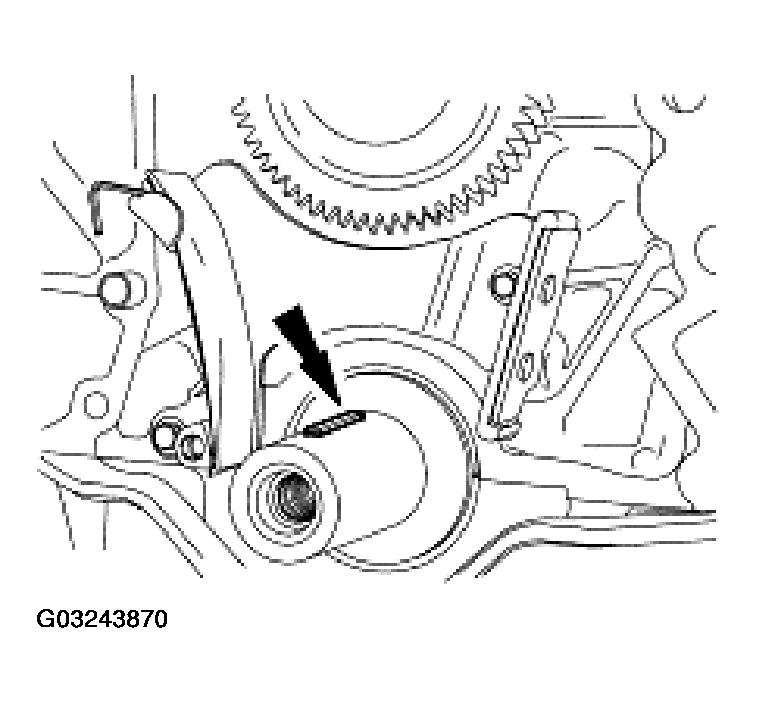

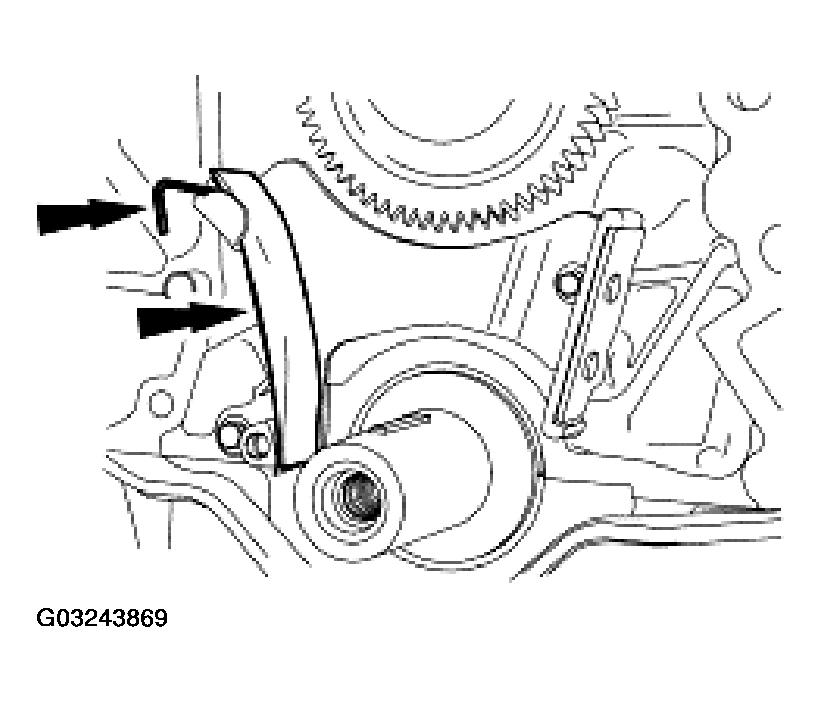

Fig 2: Retracting/Retaining Tensioner Pad Retracting Mechanism
Courtesy of FORD MOTOR CO.
Rotate the crankshaft so the number one piston is at top dead center (TDC) and the key is at the 12 o'clock position.

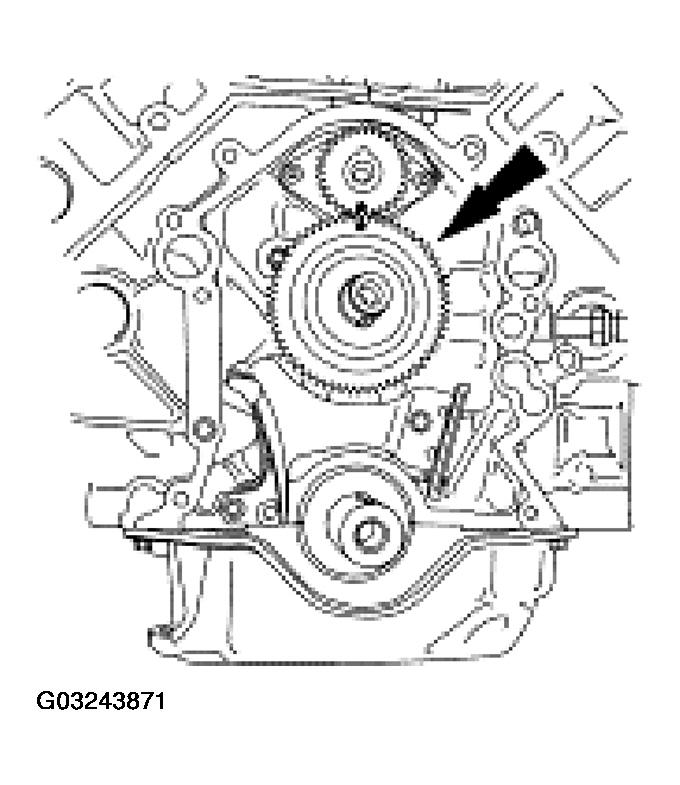

Fig 3: Rotating No. 1 Piston To TDC With Crankshaft Key At 12 O'Clock Position
Courtesy of FORD MOTOR CO.
Turn the camshaft gear so that the timing mark is on the bottom of the balance shaft.

Fig 4: Aligning Camshaft Gear Timing Mark
Courtesy of FORD MOTOR CO.
Install the timing chain, crankshaft gear and camshaft gear as an assembly.

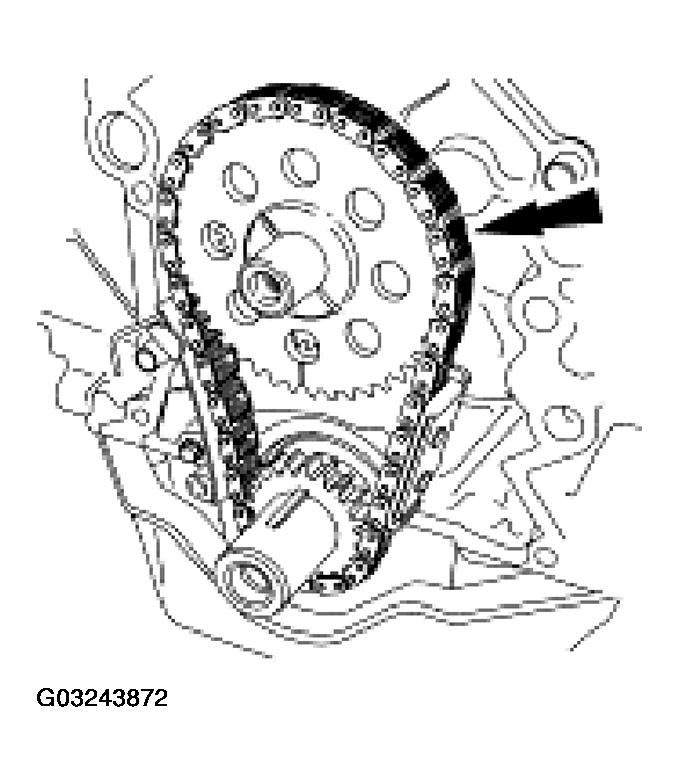

Fig 5: Installing Timing Chain, Crankshaft Gear And Camshaft Gear
Courtesy of FORD MOTOR CO.
Make sure that the timing marks and the keyways are aligned.

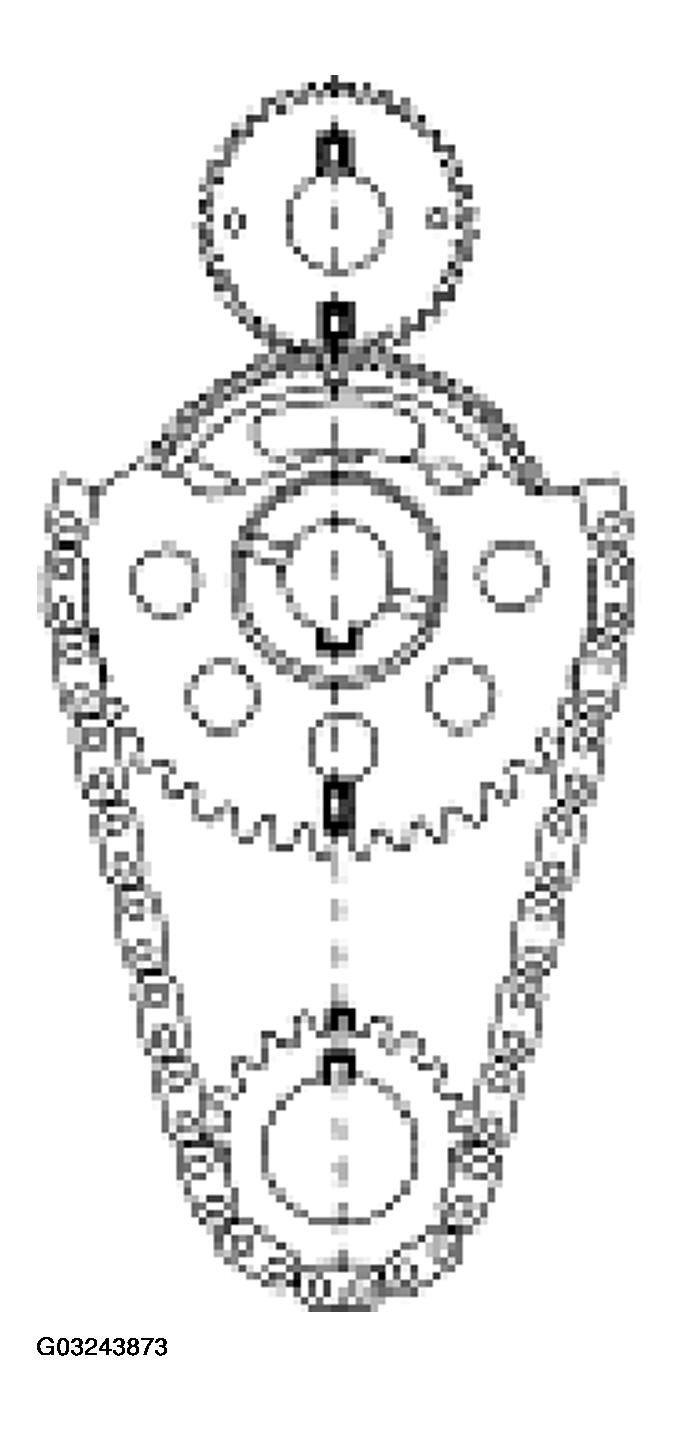

Fig 6: Checking Alignment Between Timing Marks And Keyways
Courtesy of FORD MOTOR CO.
Remove the retaining pin.

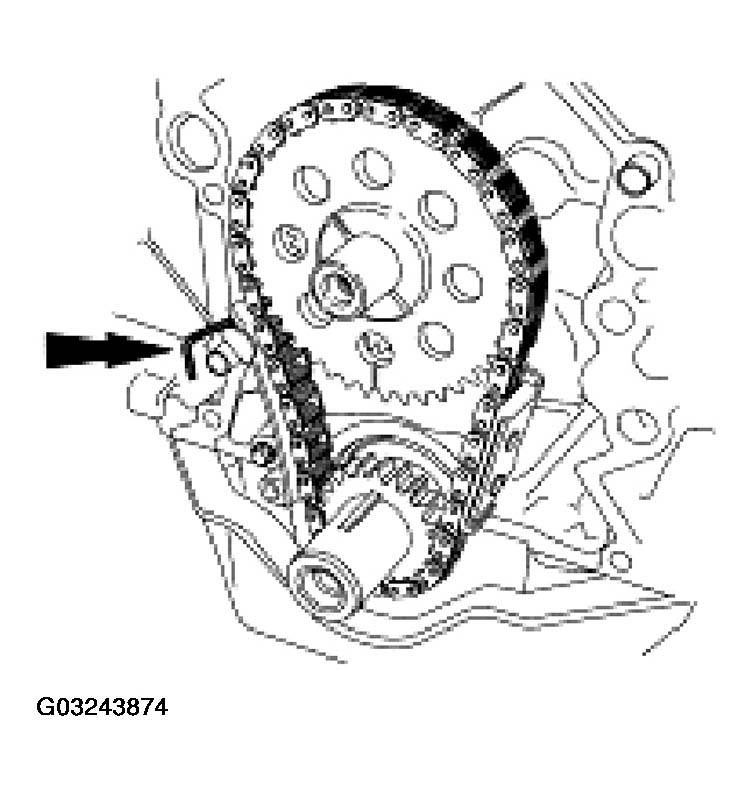

Fig 7: Removing Timing Chain Tensioner Retaining Pin
Courtesy of FORD MOTOR CO.
Install the synchronizer drive gear.

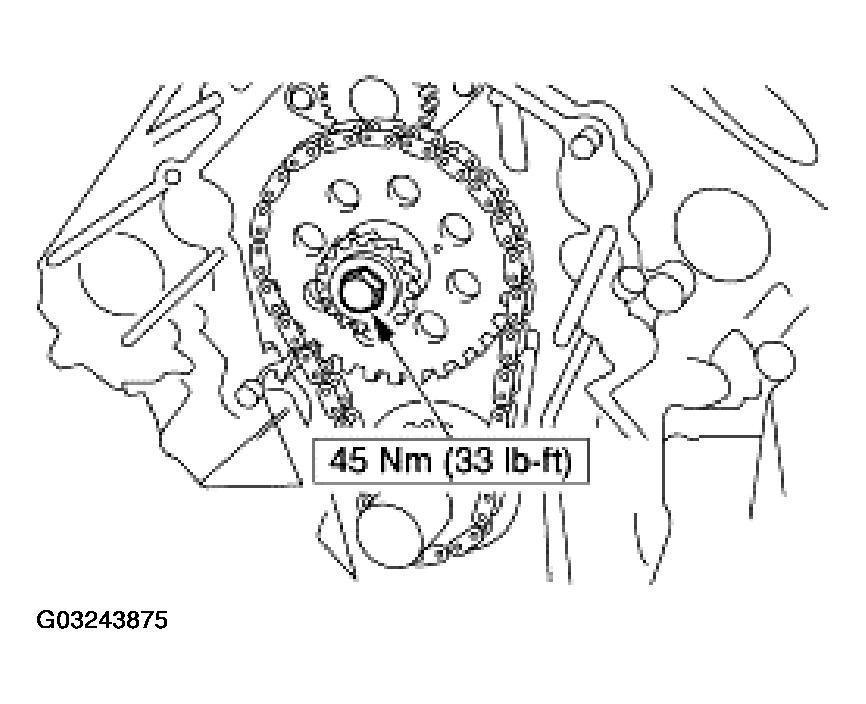

Fig 8: Installing Synchronizer Drive Gear
Courtesy of FORD MOTOR CO.
