Item 9: Crankshaft Front Seal Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

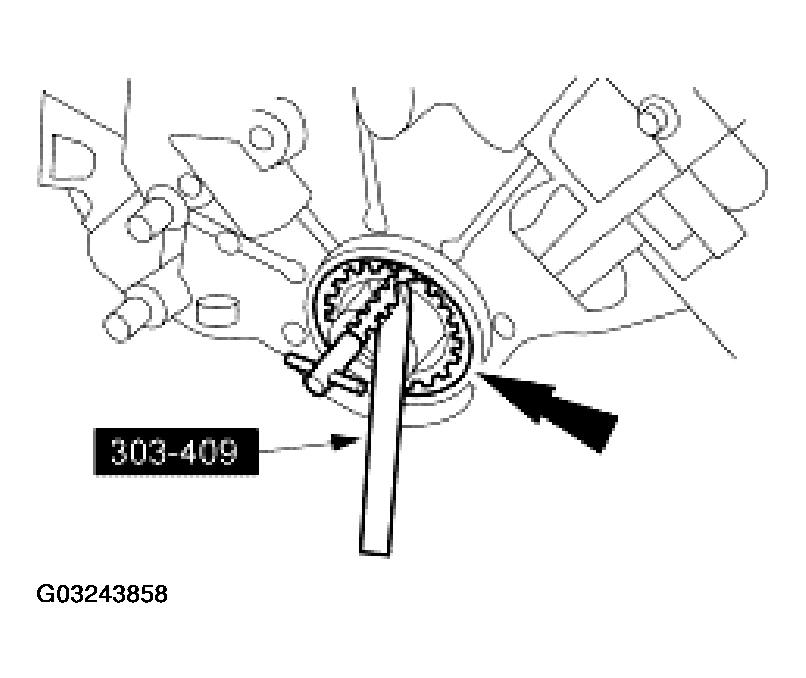

  1. Using the special tool, remove the front crankshaft front seal.
    Fig 1: Removing Front Crankshaft Front Seal
    G03243858Courtesy of FORD MOTOR CO.
  2. Raise the subframe into position, then install the bolts.
Fig 2: Raise Subframe Into Position & Installing Bolts
G03243859Courtesy of FORD MOTOR CO.
