Item 8: Crankshaft Pulley Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the RH front anti-lock brake wheel sensor electrical connector.

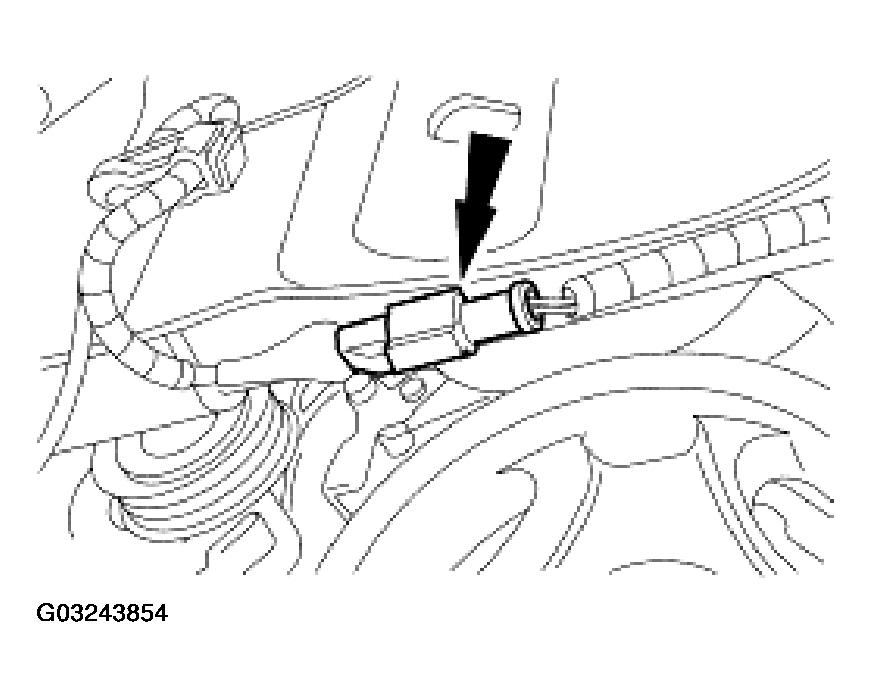

    Fig 1: Disconnecting RH Front Anti-Lock Brake Wheel Sensor Electrical Connector
    G03243854Courtesy of FORD MOTOR CO.
  2. Position a safety stand under the RH side of the subframe.

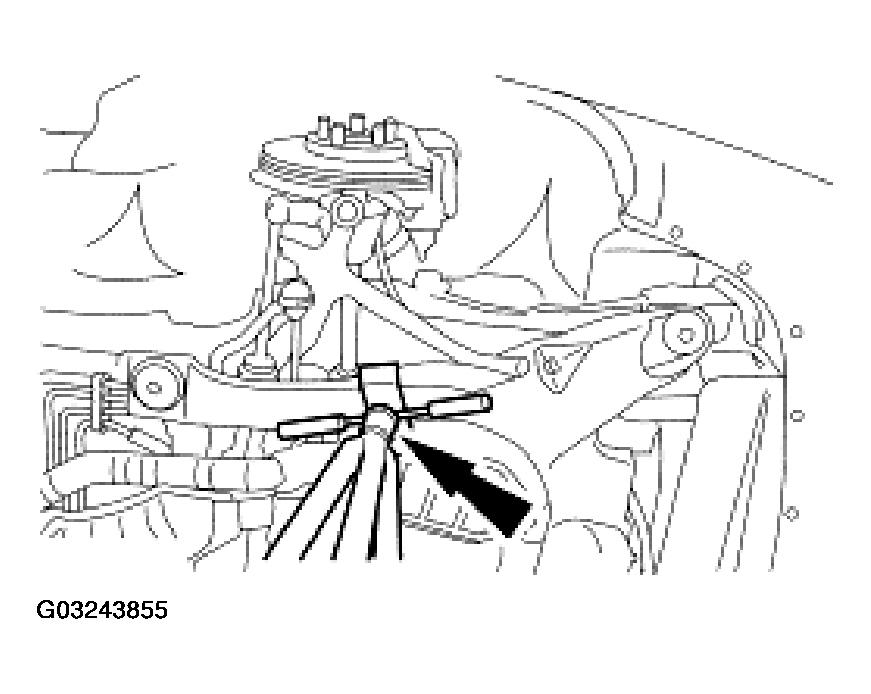

    Fig 2: Positioning Safety Stand Under RH Side Of Subframe
    G03243855Courtesy of FORD MOTOR CO.
  3. Lower the RH side of the subframe 50.8 mm (2 in).
    • Remove the bolts.
    • Lower the subframe.

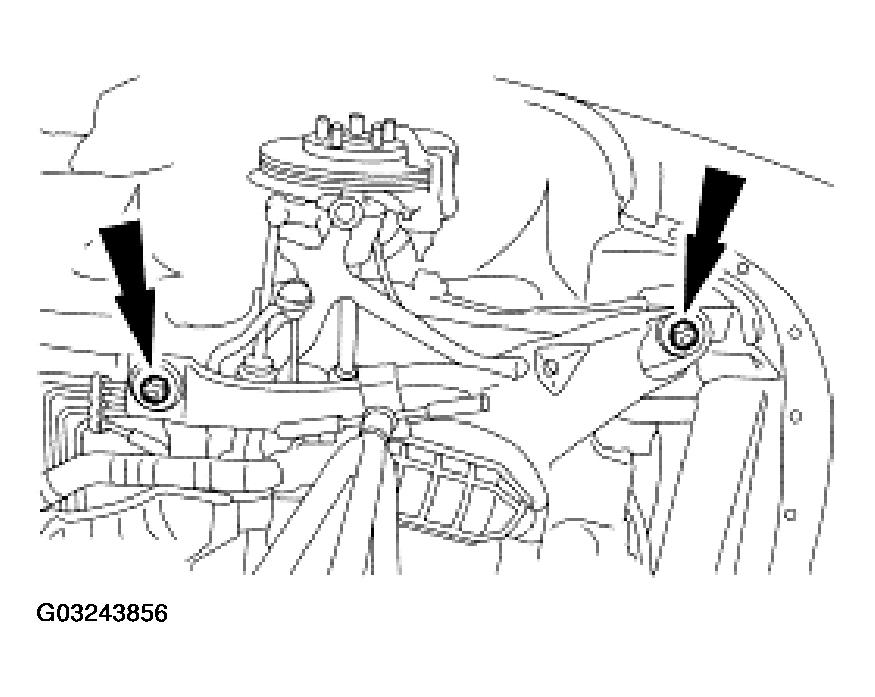

    Fig 3: Lowering RH Side Of Subframe
    G03243856Courtesy of FORD MOTOR CO.
  4. Using the special tool, remove the crankshaft pulley.

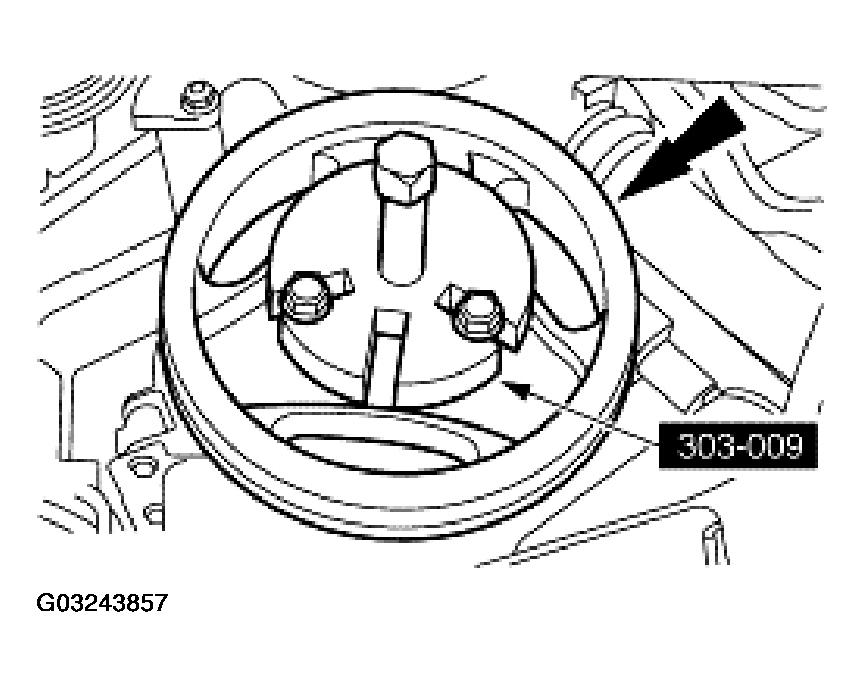

Fig 4: Removing Crankshaft Pulley
G03243857Courtesy of FORD MOTOR CO.
