Item 8: Crankshaft Pulley Installation Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Apply a bead of sealant to the keyway in the crankshaft pulley.

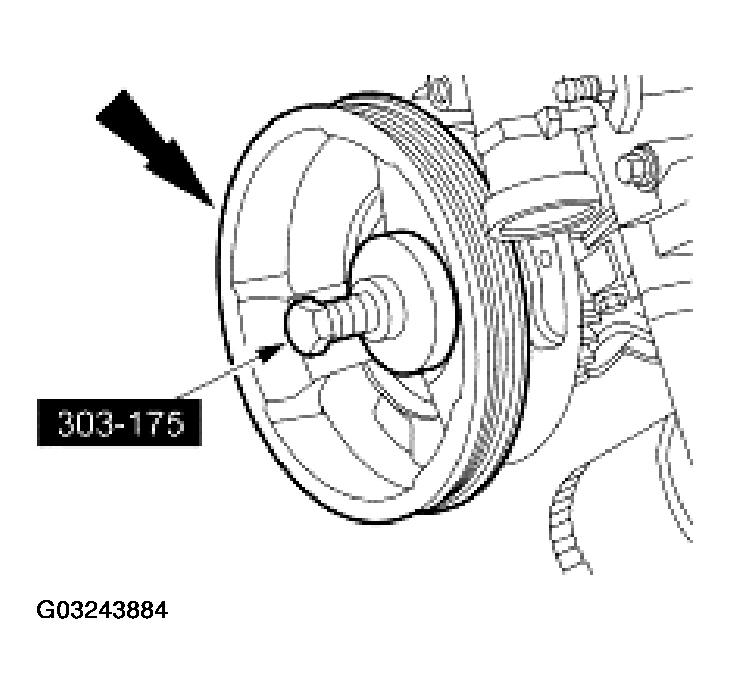

Fig 1: Installing Crankshaft Pulley

Courtesy of FORD MOTOR CO.

Using the special tool, install the crankshaft pulley.
Raise the subframe into position, then install the bolts.

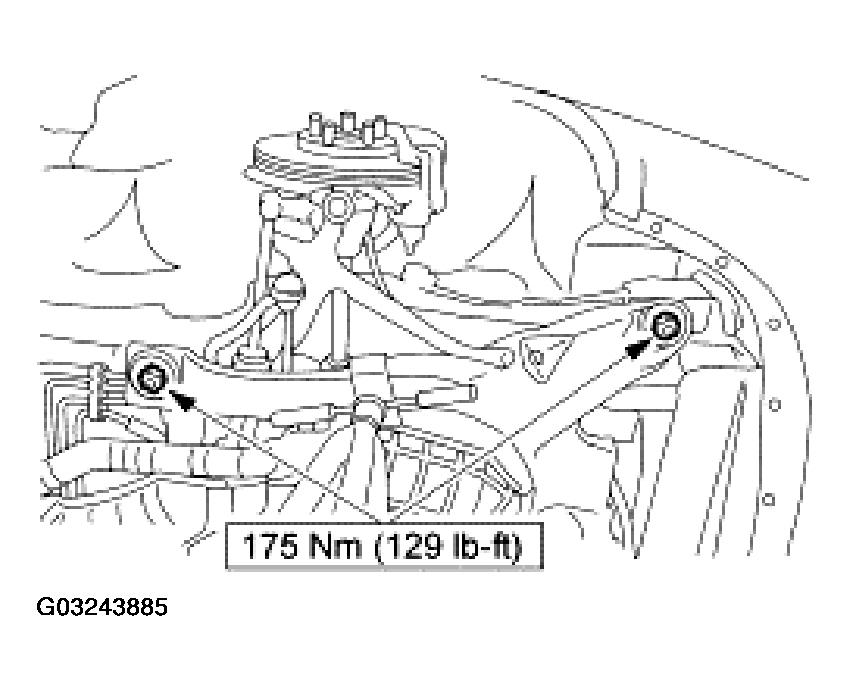

Fig 2: Raise Subframe Into Position & Installing Bolts
Courtesy of FORD MOTOR CO.
Connect the RH front anti-lock brake wheel sensor electrical connector.

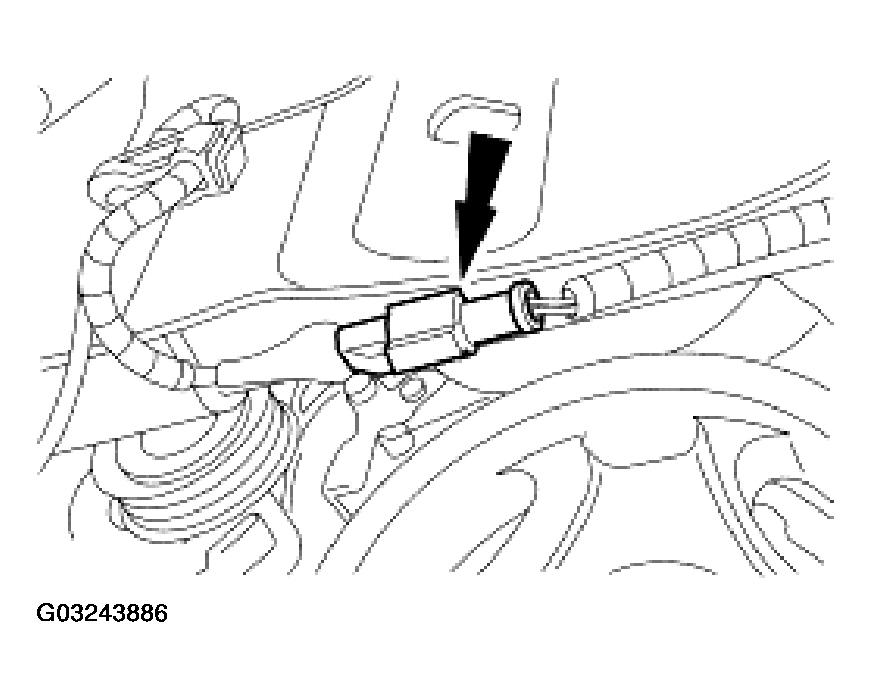

Fig 3: Connecting RH Front Anti-Lock Brake Wheel Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
