Cylinder Head - RH: Material

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP or equivalent WSS-M2C153-H
Motorcraft Silicone Gasket Remover
ZC-30
-
Motorcraft Metal Surface Prep
ZC-31
-

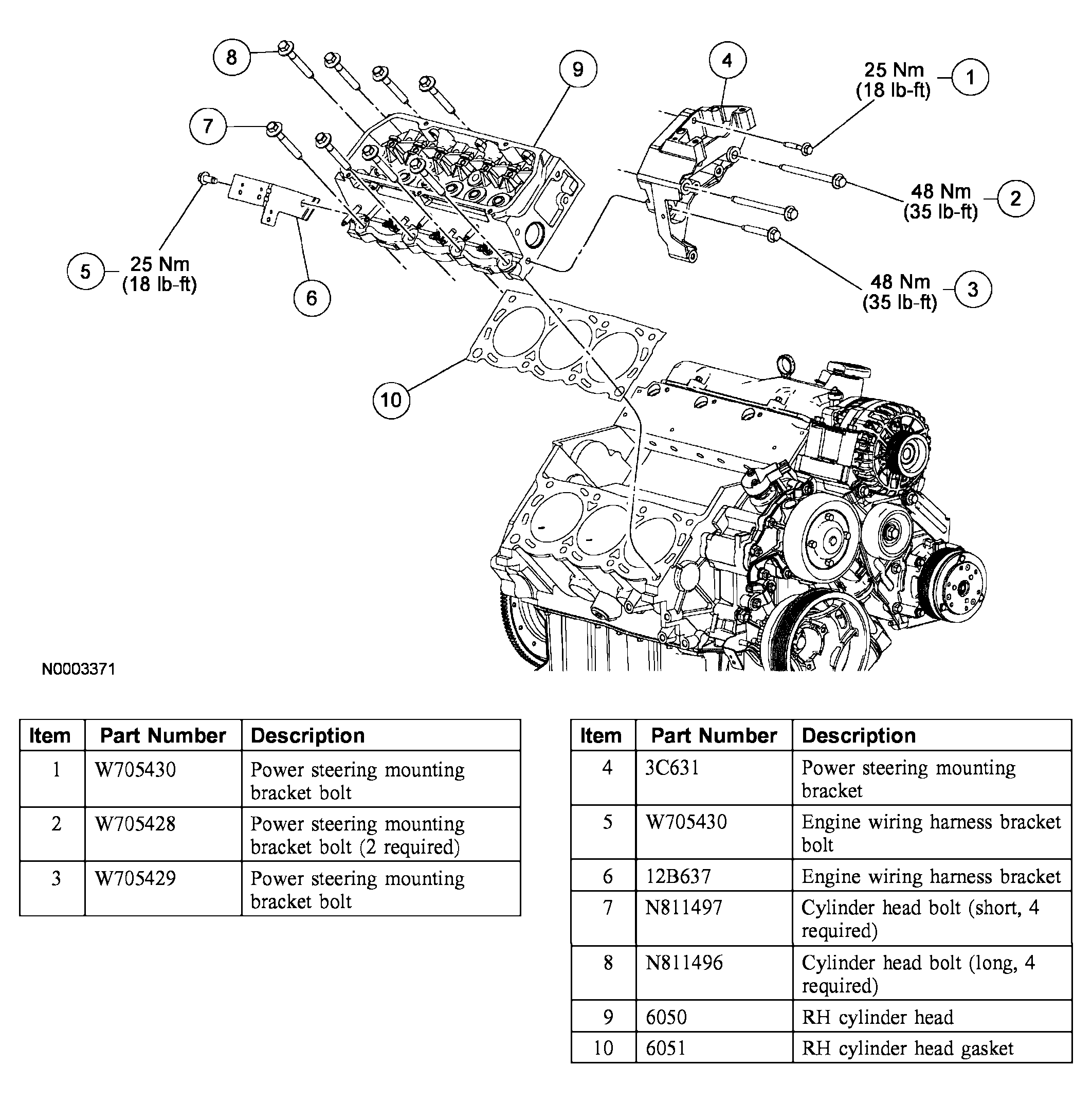

Fig 1: Identifying RH Cylinder Head Components
G04003989Courtesy of FORD MOTOR CO.
