Accessory Drive Belt, Tensioner And Pulley: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in neutral, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the parts in the order indicated in the following illustration

    To remove individual parts, only carry out the listed steps:

    Part Steps
    Accessory drive belt 1
    Accessory drive belt tensioner 1-3
    Accessory drive belt idler pulley 1, 4-5

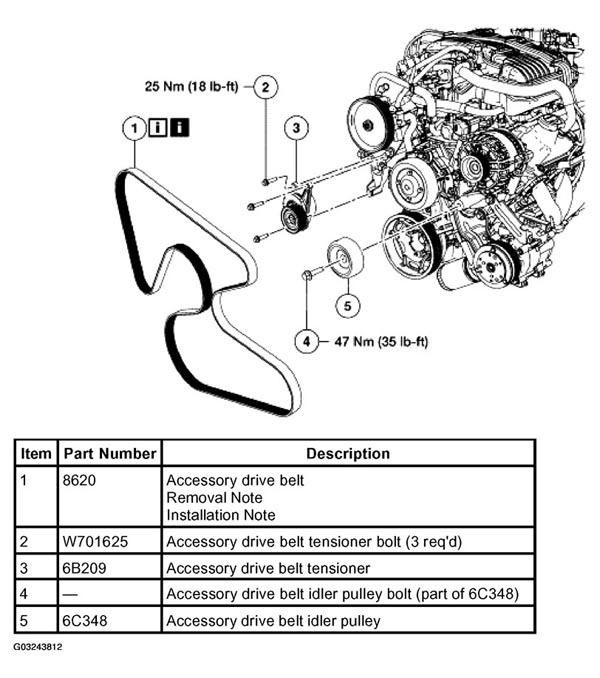

    Fig 1: Accessory Drive Belt, Tensioner And Pulley Components Removal Sequence
    G03243812Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
