Camshaft Journal - Clearance, Push Rod Engines, Micrometer Method
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The camshaft journals must meet specifications before checking camshaft journal clearance.

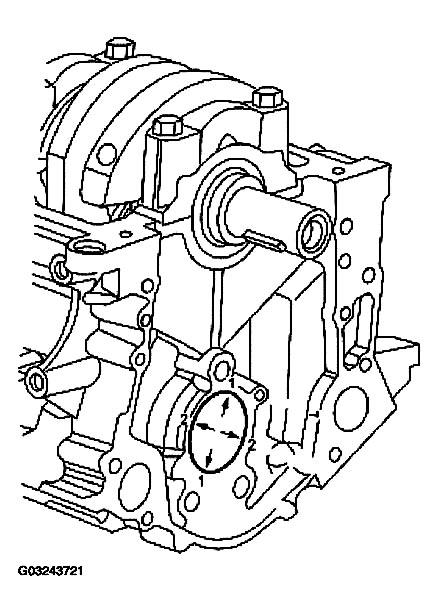

- Measure each camshaft bearing (6261) in two directions.
- Subtract the camshaft journal diameter from the camshaft bearing diameter.
Courtesy of FORD MOTOR CO.
