Camshaft - Lobe Surface

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

Inspect camshaft lobes for pitting or damage in the contact area. Minor pitting is acceptable outside the contact area.

If excessive pitting or damage is present, install new components as necessary. Refer to ENGINE - 3.9L & 4.2L for the procedure.

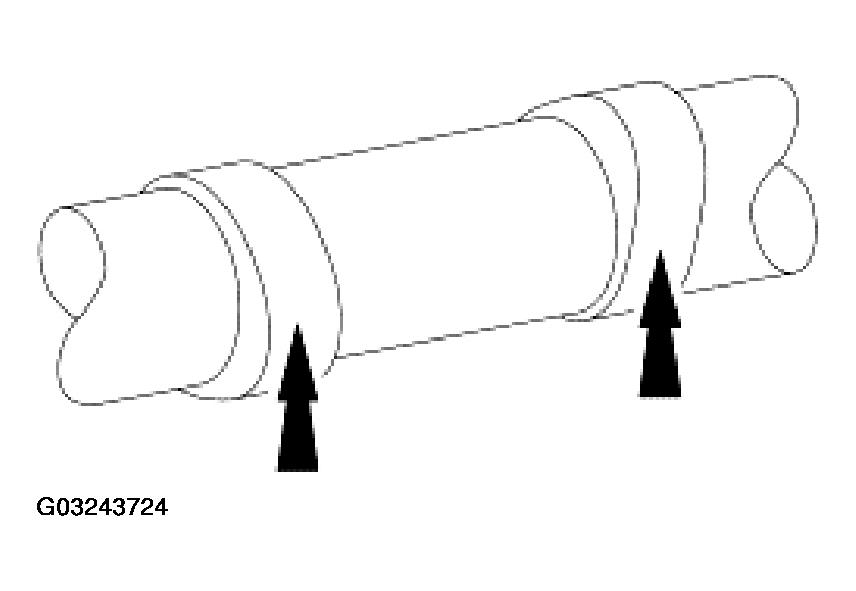

Fig 1: Inspecting Camshaft Lobes For Pitting

Courtesy of FORD MOTOR CO.
