Instrument Cluster Connector C220a

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

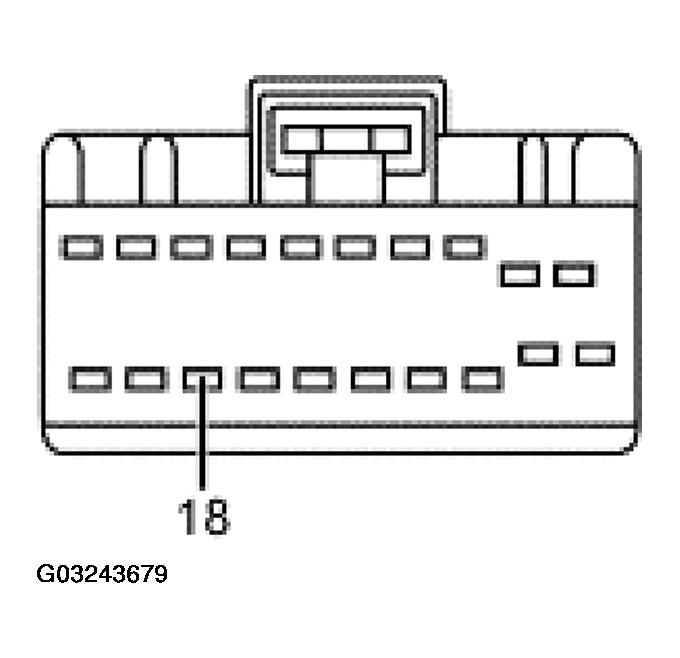

Fig 1: Identifying Instrument Cluster Connector C220a
G03243679Courtesy of FORD MOTOR CO.
CLUSTER CONNECTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
18 295 (LB/PK) Ignition accessory (ACC) power from ignition switch B+ voltage with ignition switch in RUN or ACC.
