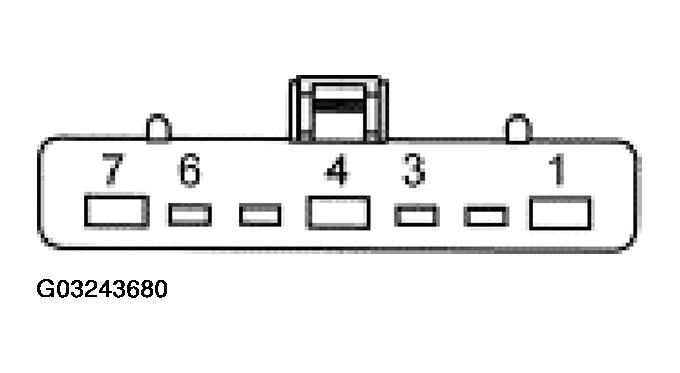

Ignition Switch Connector C250
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
CLUSTER CONNECTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 16 (RD/LG) Ignition RUN power from ignition switch | B+ voltage with ignition switch in RUN or START. |
| 3 | 31 (WH/RD) brake shift interlock solenoid signal | 12 volts on actuation. |
| 4 | 37 (YE) ignition switch power from battery junction box (BJB) | B+ voltage at all times. |
| 6 | 687 (GY/YE) ignition accessory (ACC) power from ignition switch | B+ voltage with ignition switch in RUN or ACC. |
| 7 | 50 (RD) ignition START power | 12 volts with ignition switch in START position |
