Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

Disconnect the battery. For additional information, refer to BATTERY & CHARGING SYSTEM .
Raise and support the vehicle. For additional information, refer to IDENTIFICATION CODES
Remove the parts in the order indicated in the following illustration and table.

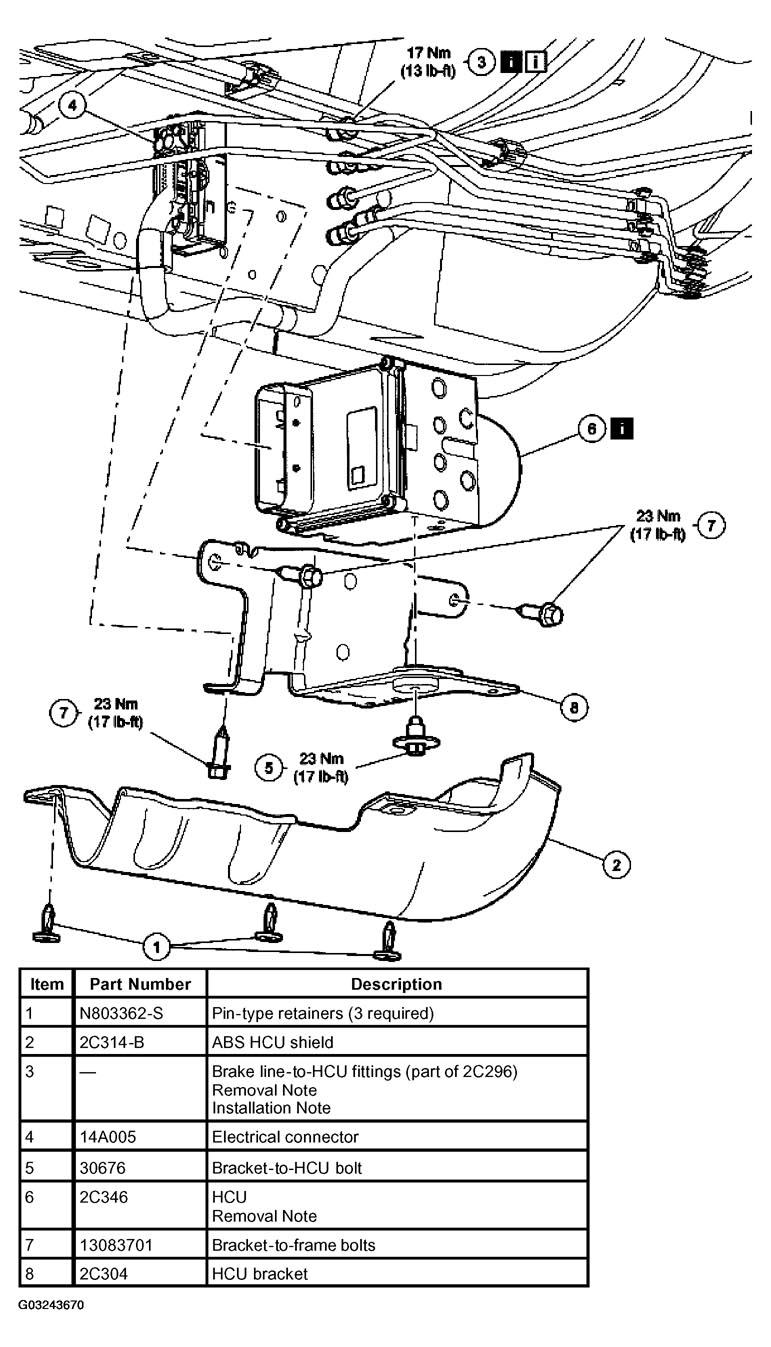

Fig 1: Removing Hydraulic Control Unit (HCU)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
