Removal & Installation (3.0L)
WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

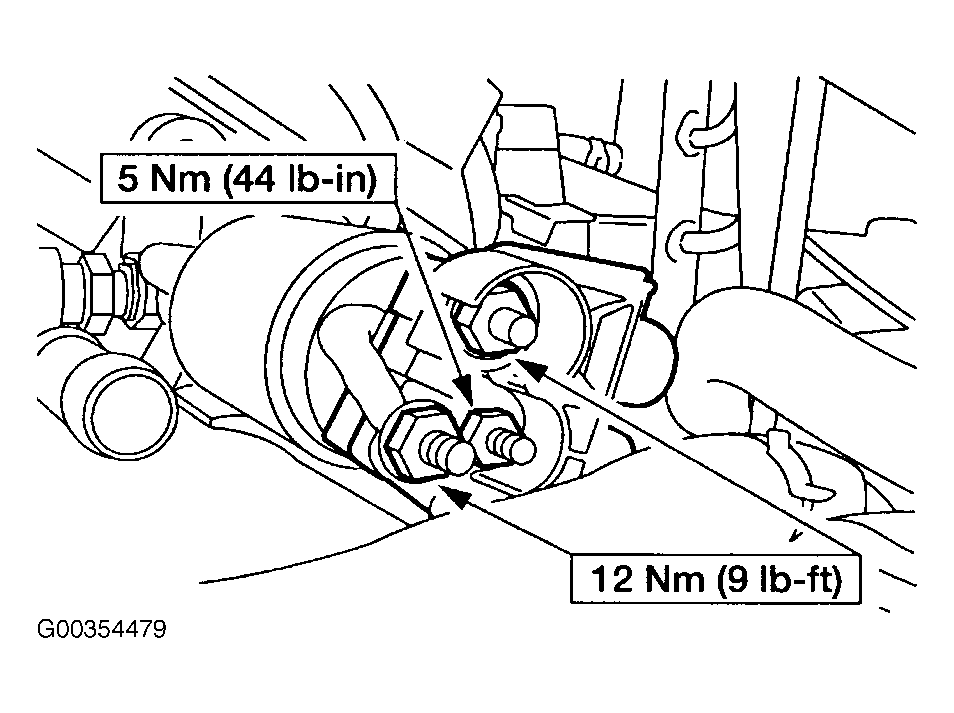

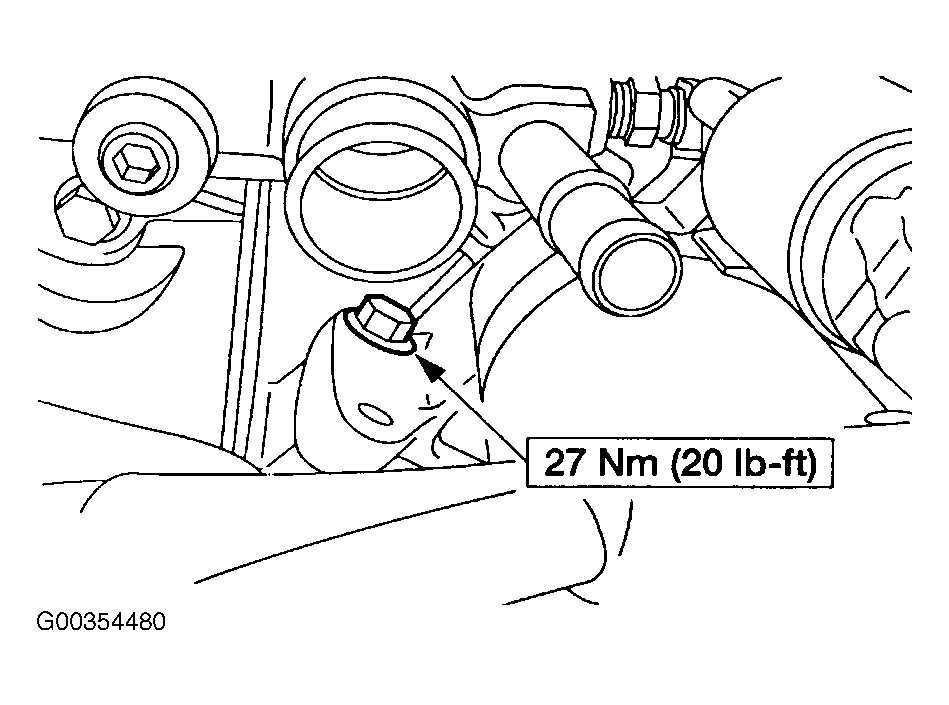

Disconnect negative battery cable. Remove air cleaner outlet tube and air cleaner assembly. Drain engine cooling system. Disconnect the 3 hoses and position thermostat aside. Remove starter solenoid cable nuts and position solenoid cables aside. See Fig 1. Remove starter motor mounting bolts and starter motor. See Fig 2. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
