Removal & Installation (2.0L)

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable. Remove starter bolts. See Fig 1. Raise and support vehicle. Remove halfshaft support bracket bolts and nuts. See Fig 2. Remove battery cable and starter control electrical connector nuts. See Fig 3. Remove starter motor. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .

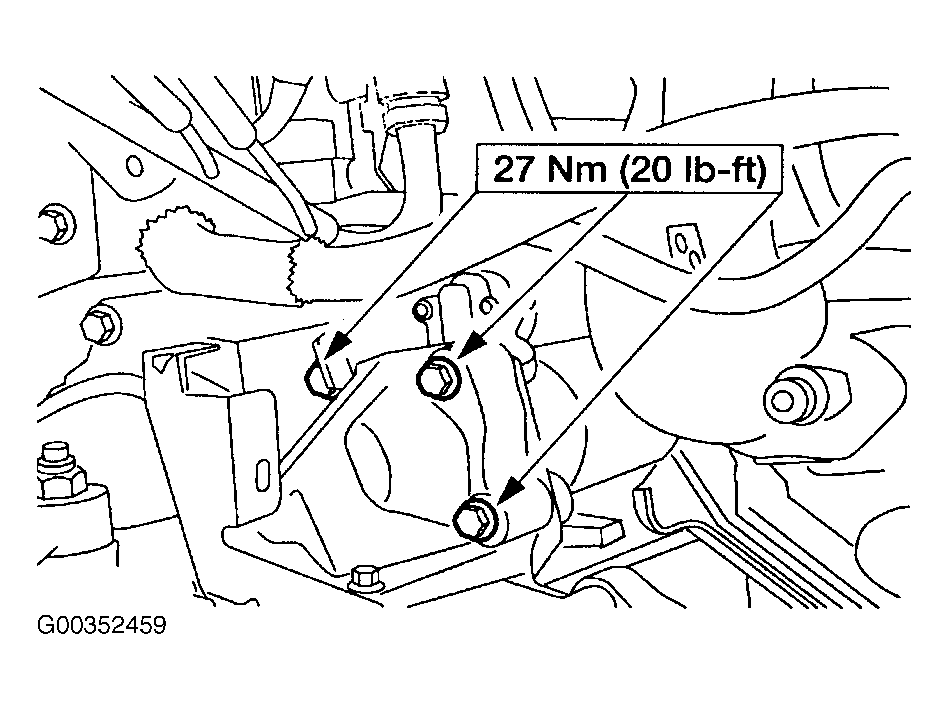

Fig 1: Identifying Starter Bolts

Courtesy of FORD MOTOR CO.

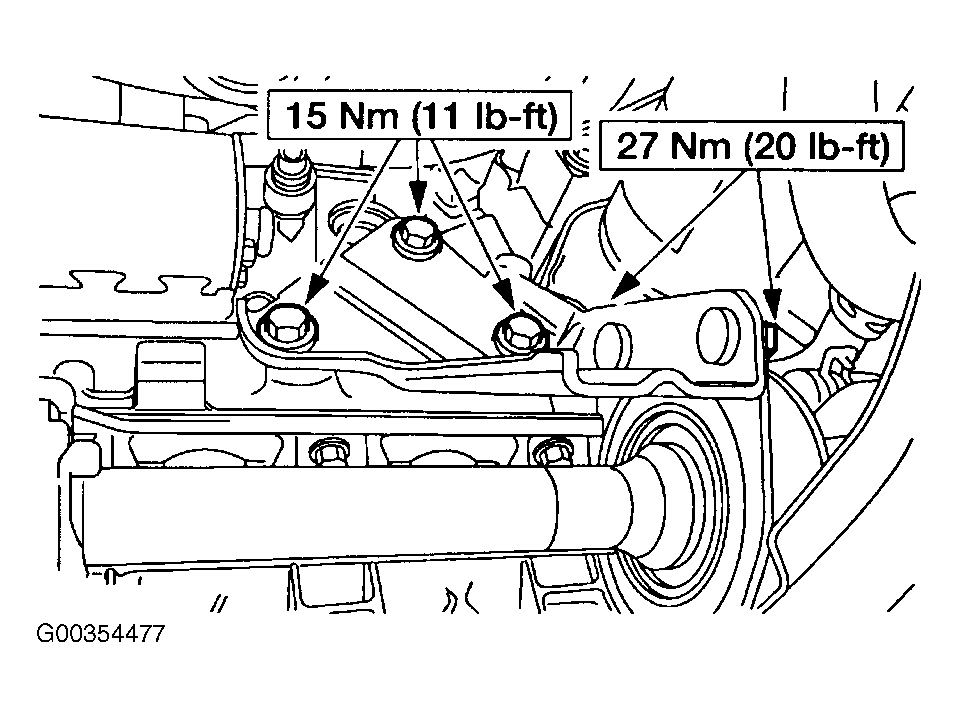

Fig 2: Identifying Halfshaft Support Bracket Bolts

Courtesy of FORD MOTOR CO.

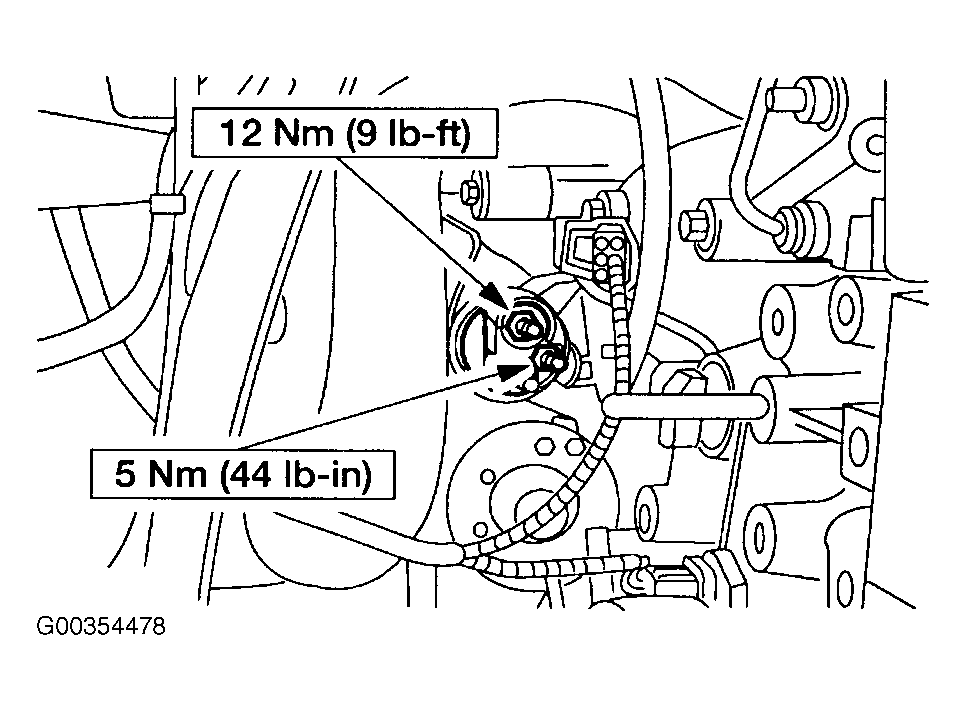

Fig 3: Identifying Battery Cable & Starter Control Connector Nuts

Courtesy of FORD MOTOR CO.
