Items 4: Front Parking Brake Cable and Conduit Removal Note
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
- Lower the parking brake control handle.
- Raise and support the vehicle to access the front cable and conduit equalizer. For additional information, refer to JACKING & LIFTING .

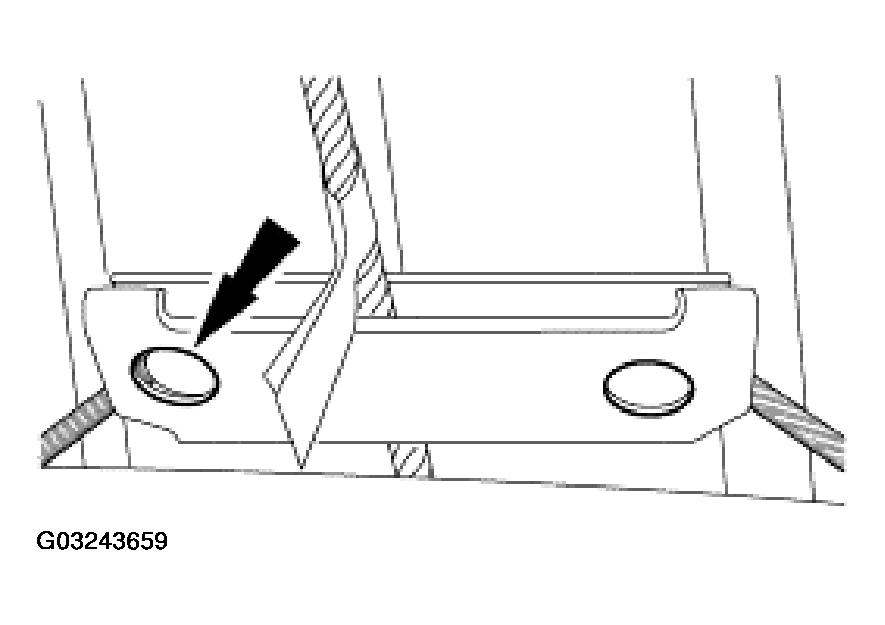

- Disconnect the 2 rear parking brake cables from the equalizer.
- If removing the cable assembly, position the cable guide through the floor pan and disconnect the cable assembly from the parking brake control.
