Item 14: Brake Booster Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

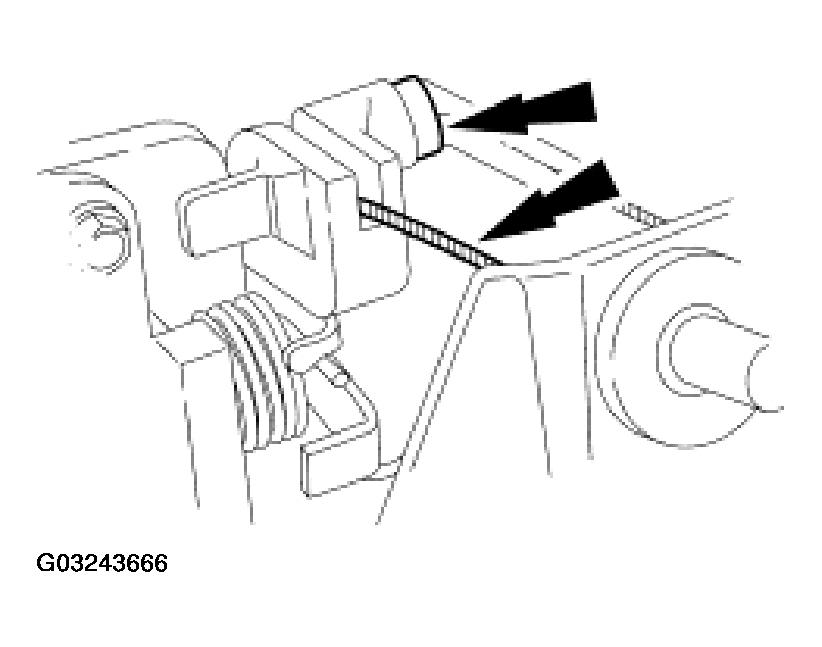

Disconnect the speed control and the accelerator cables.

Fig 1: Disconnecting Speed Control And Accelerator Cables
Courtesy of FORD MOTOR CO.

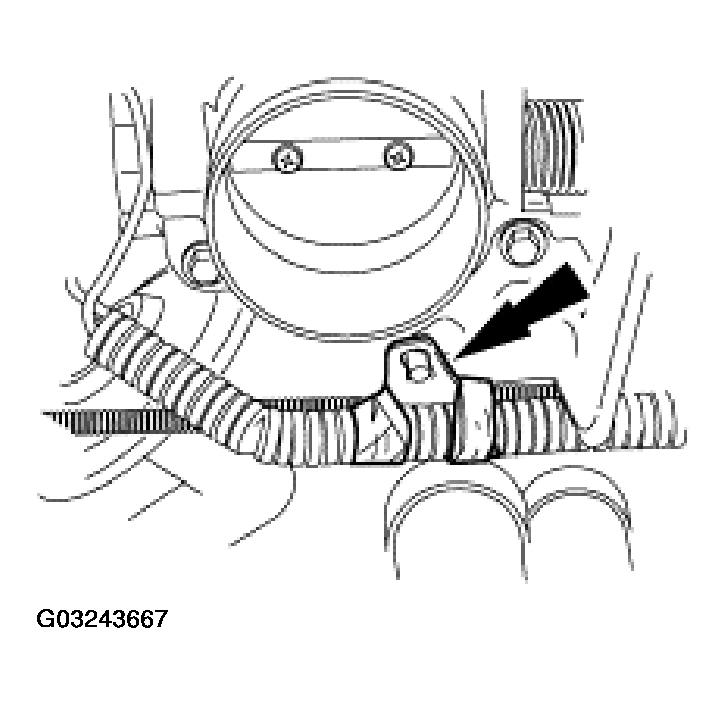

Remove the wiring harness retaining bracket.

Fig 2: Removing Wiring Harness Retaining Bracket
Courtesy of FORD MOTOR CO.

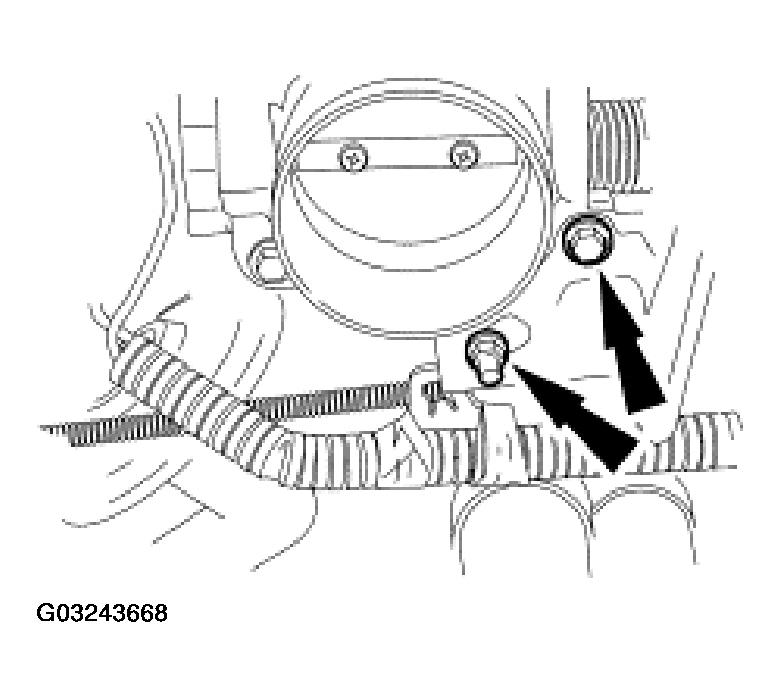

Remove the cable bracket bolts and position bracket aside.

Fig 3: Removing Cable Bracket Bolts
Courtesy of FORD MOTOR CO.

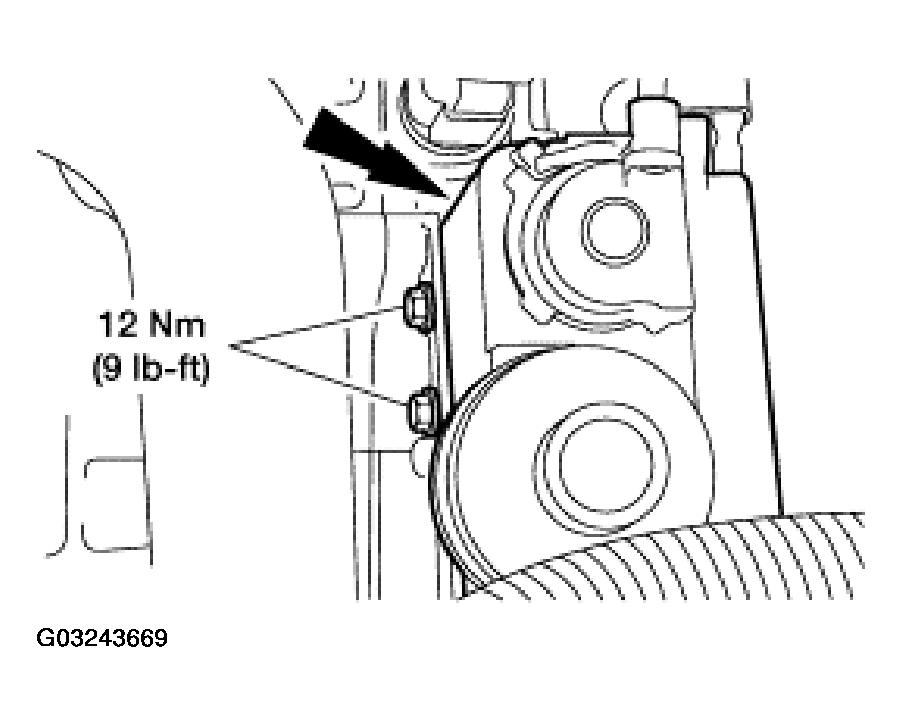

Remove the bolts and position the speed control module aside.

Fig 4: Positioning Speed Control Module Aside
Courtesy of FORD MOTOR CO.
