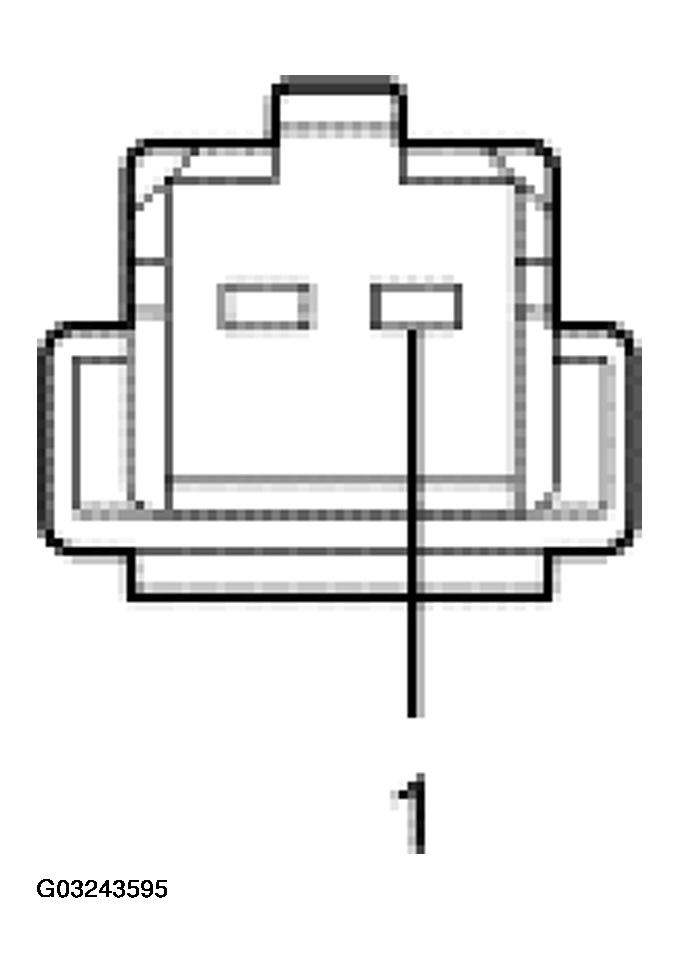

Parking Brake Switch C306
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. PIN NUMBER (S) AND CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 1 |
1309 (RD/YE) parking brake switch sense circuit |
Less than 5 ohms resistance between the SJB and the parking brake switch connectors (both disconnected). |
