Adjustable Pedal Motor C2003
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

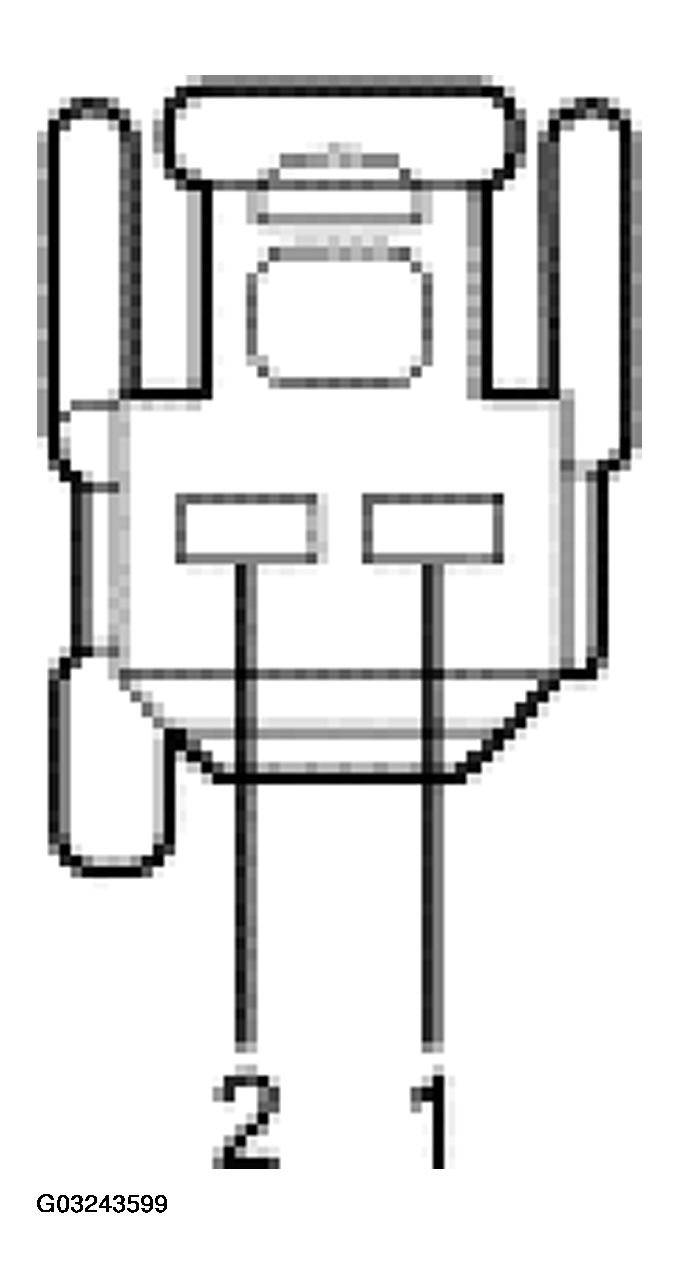

PIN NUMBER (S) AND CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 (without memory) | 1495 (WH) adjustable pedal motor power feed or ground (switched) | Greater than 10 volts with motor in one direction and ground when in opposite direction. Less than 5 ohms resistance between the adjustable pedal switch and the adjustable pedal motor connectors (both disconnected). |
| 1 (with memory) | (DB/VT) adjustable pedal motor power feed or ground (switched) | Greater than 10 volts with motor in one direction and ground when in opposite direction. Less than 5 ohms resistance between the adjustable pedal switch and the adjustable pedal motor connectors (both disconnected). |
| 2 (without memory) | 1494 (RD) adjustable pedal motor ground or power feed (switched) | Ground with motor in one direction and greater than 10 volts when in opposite direction. Less than 5 ohms resistance between the adjustable pedal switch and the adjustable pedal motor connectors (both disconnected). |
| 2 (with memory) | (VT/DB) adjustable pedal motor ground or power feed (switched) | Ground with motor in one direction and greater than 10 volts when in opposite direction. Less than 5 ohms resistance between the adjustable pedal switch and the adjustable pedal motor connectors (both disconnected). |
