Item 11: Wheel Stud Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable press, remove the wheel stud from the wheel hub and bearing assembly.

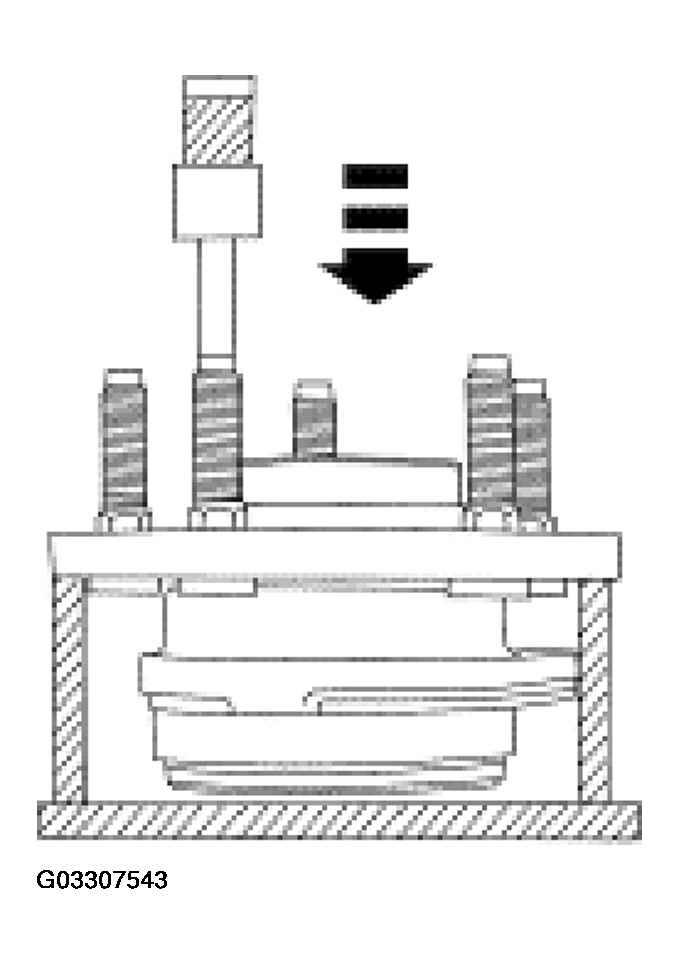

    Fig 1: Removing Wheel Stud From Wheel Hub And Bearing Assembly
    G03307543Courtesy of FORD MOTOR CO.
