Item 1: Axle Shaft Nut Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and discard the axle shaft nut.
  2. Using the special tools, separate the front driveshaft and joint from the wheel hub.

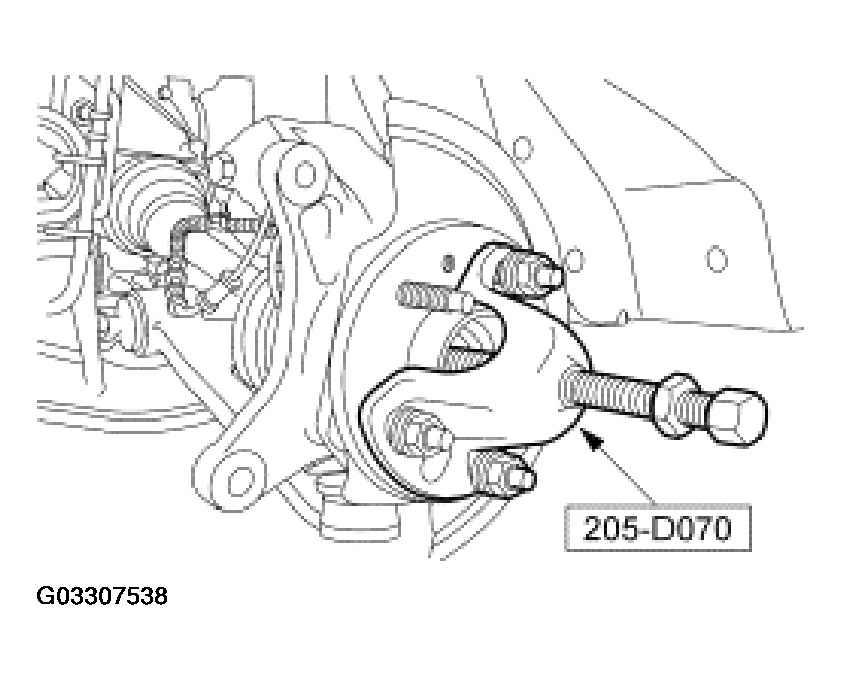

    Fig 1: Removing Front Driveshaft And Joint From Wheel Hub
    G03307538Courtesy of FORD MOTOR CO.
  3. Remove the front brake disc. For additional information, refer to BRAKE SYSTEM .
