Item 7: Stabilizer Bar Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and discard the outer tie-rod end-to-wheel knuckle nuts.
  2. Using the special tool, disconnect the outer tie-rod ends from the wheel knuckles.
  3. Remove the stabilizer bar from the vehicle.

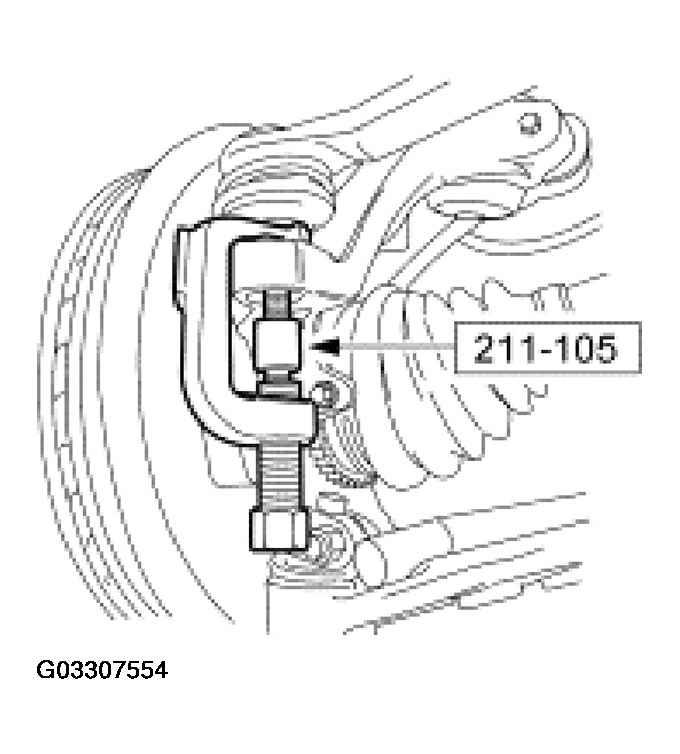

    Fig 1: Disconnecting Outer Tie-Rod Ends From Wheel Knuckles
    G03307554Courtesy of FORD MOTOR CO.
