Item 7: Stabilizer Bar Installation Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the stabilizer bar into the vehicle.
  2. Connect the outer tie-rod ends to the wheel knuckles and install new nuts.

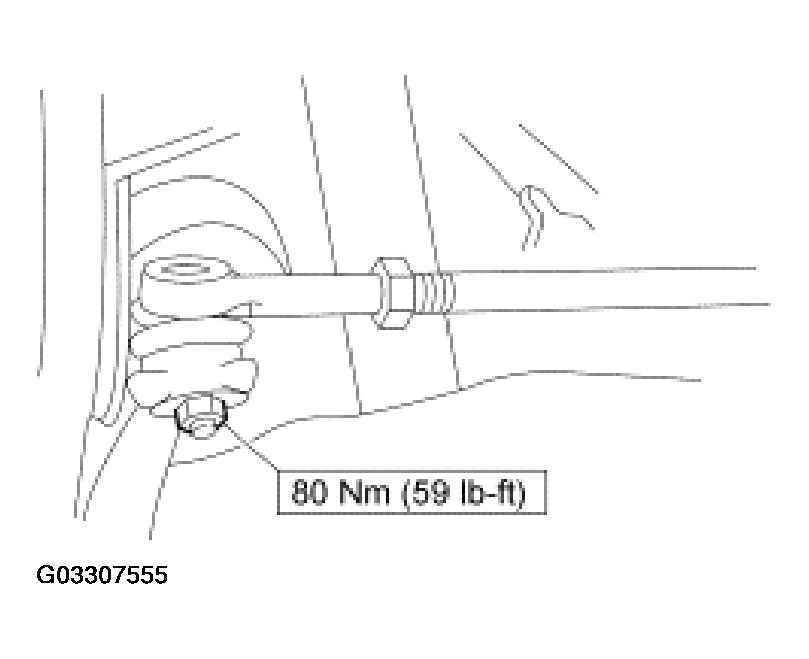

    Fig 1: Connecting Outer Tie-Rod Ends To Wheel Knuckles
    G03307555Courtesy of FORD MOTOR CO.
