Rear Suspension: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

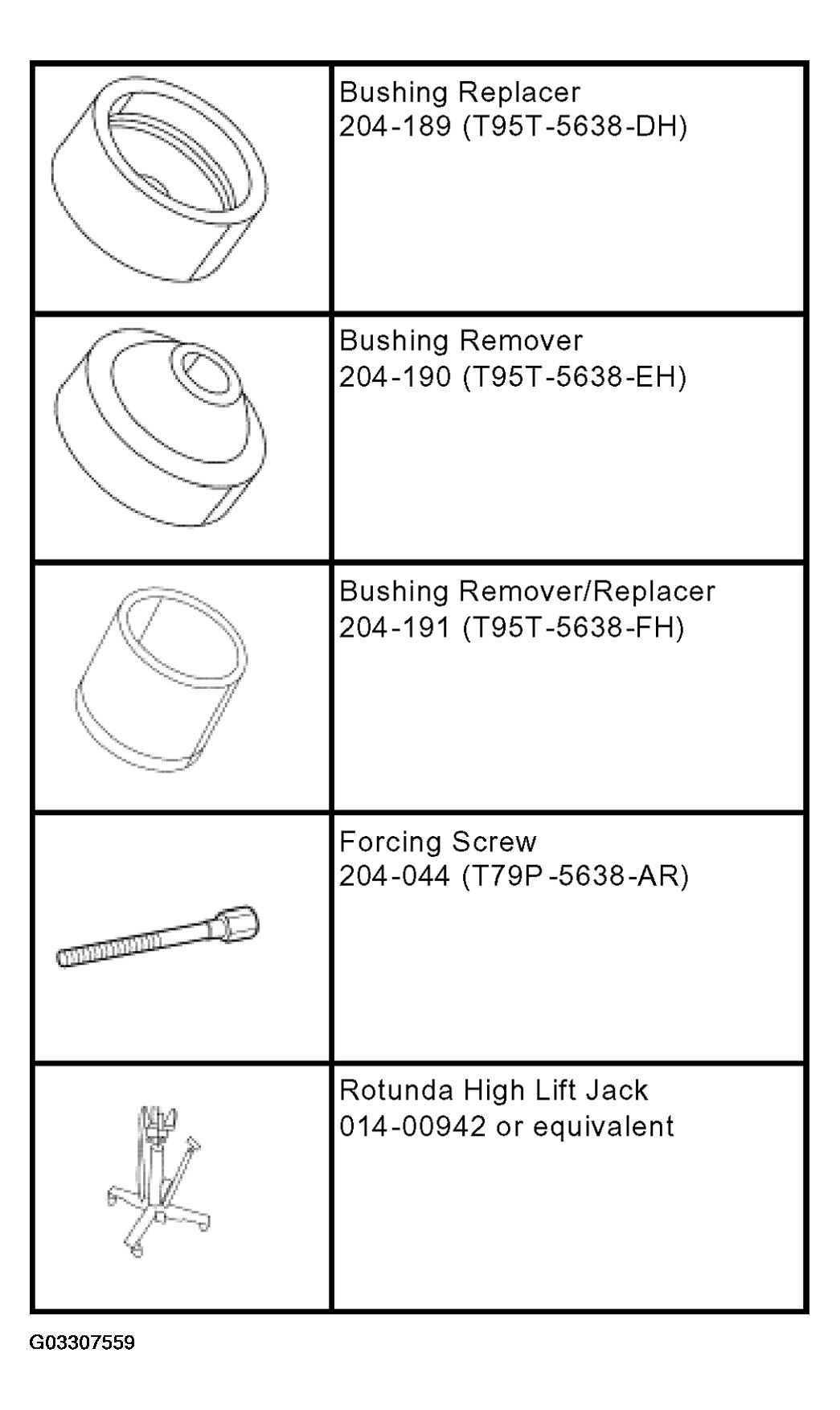

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to IDENTIFICATION CODES .
Remove the rear brake disc. For additional information, refer to BRAKE SYSTEM .
If the rear axle assembly is being removed, disconnect the brake lines and ABS rear wheel speed sensor wire bundle from the rear axle assembly.
Remove the parts in the order indicated in the following illustrations and tables.

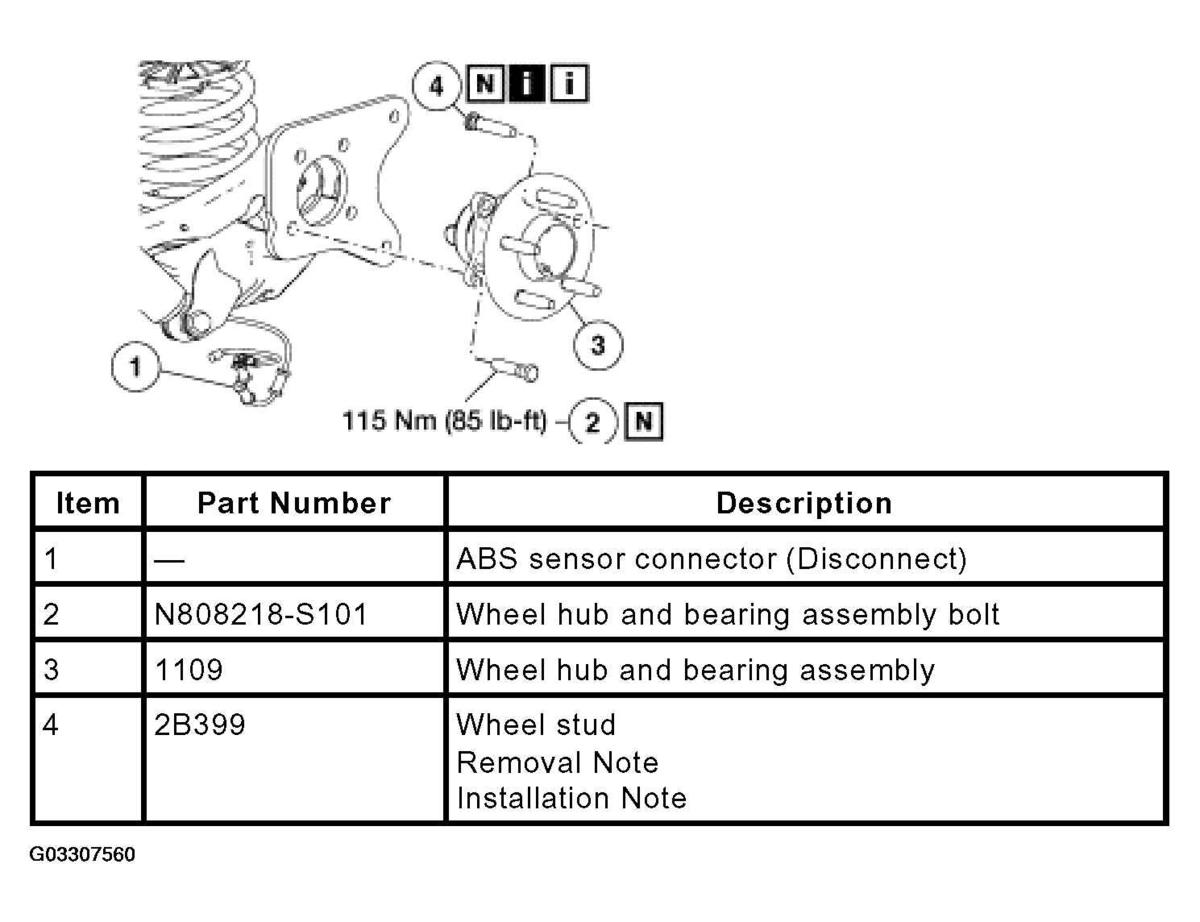

Fig 2: Rear Suspension Components Removal Sequence (Items 1-4)
Courtesy of FORD MOTOR CO.

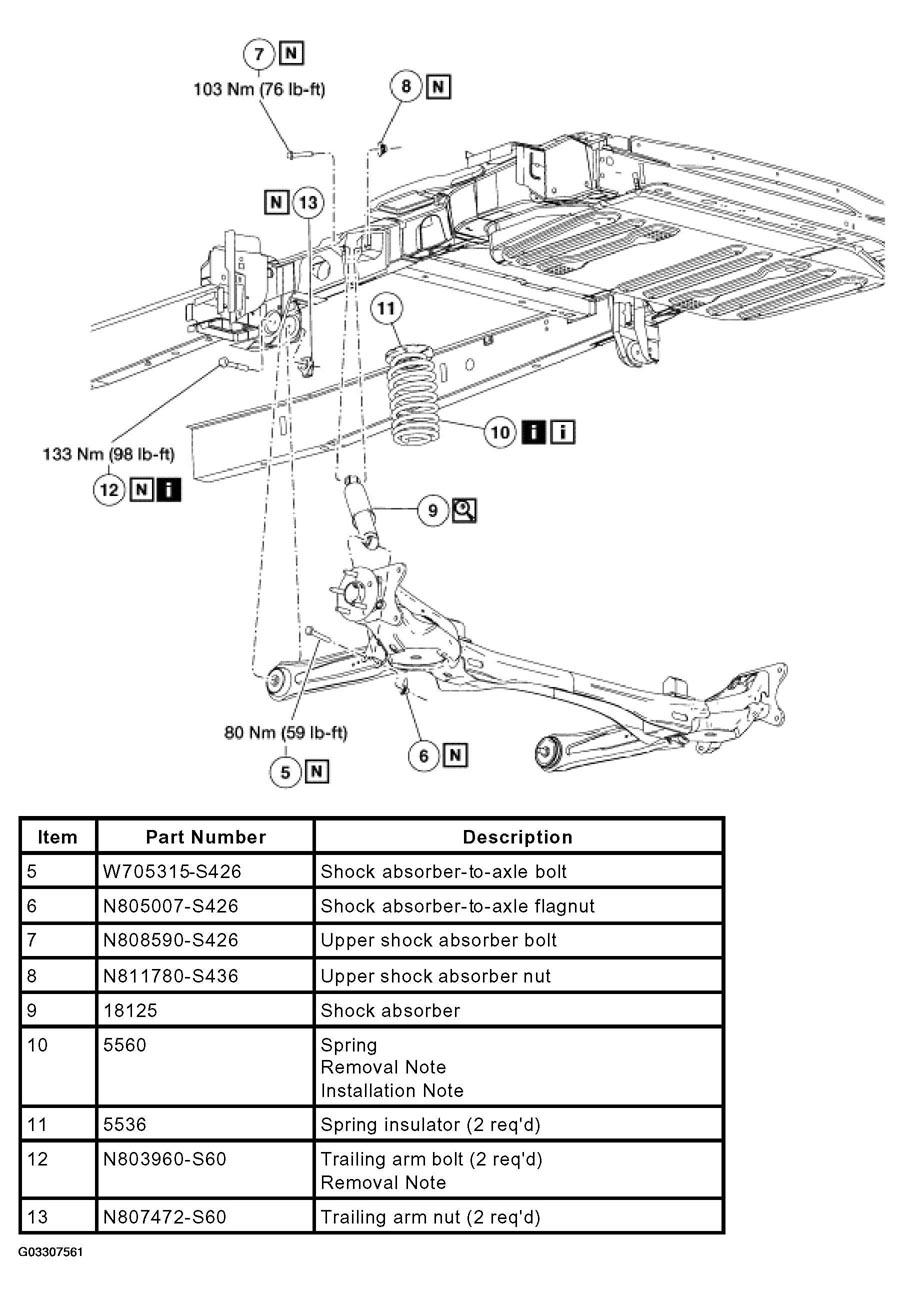

Fig 3: Rear Suspension Components Removal Sequence (Items 5-13)
Courtesy of FORD MOTOR CO.

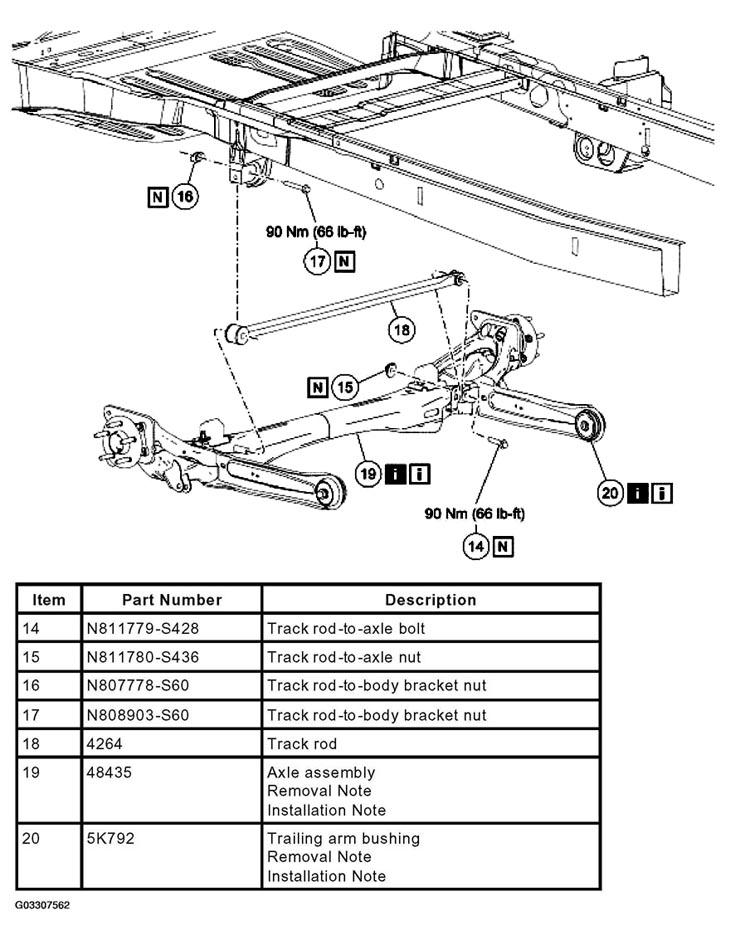

Fig 4: Rear Suspension Components Removal Sequence (Items 14-20)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
