Item 20: Trailing Arm Bushing Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, remove the trailing arm bushing.

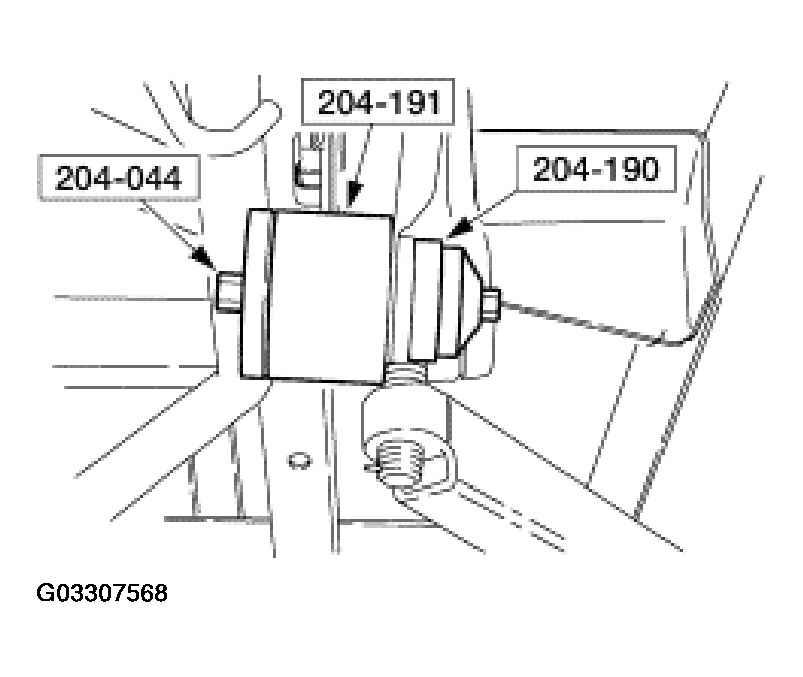

    Fig 1: Removing Trailing Arm Bushing
    G03307568Courtesy of FORD MOTOR CO.
  2. Using a suitable calibrated telescoping micrometer, measure the trailing arm bushing bore. If the measurement exceeds the specification, install a new rear axle assembly.

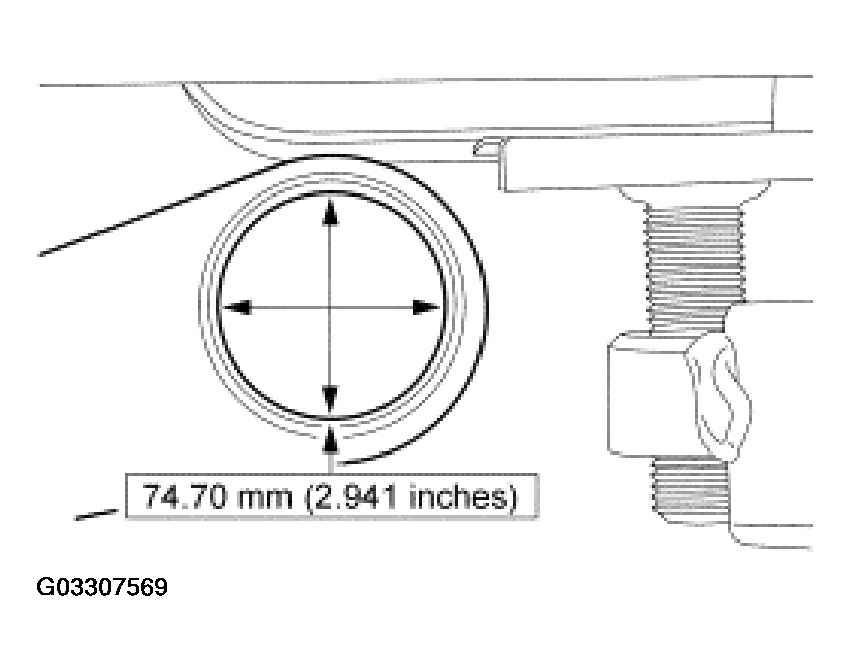

    Fig 2: Identifying Trailing Arm Bushing Bore Dimension
    G03307569Courtesy of FORD MOTOR CO.
