Front Camber And Caster Adjustment

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cowl top vent panel. For additional information, refer to BODY SYSTEM - EXTERIOR .
  2. Center punch the four spot welds.

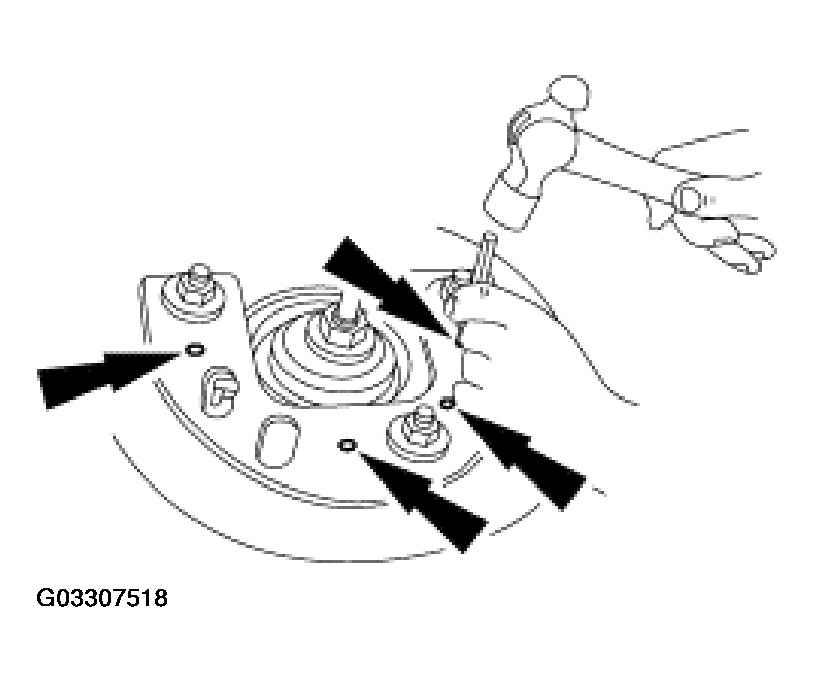

    Fig 1: Punching Spot Welds
    G03307518Courtesy of FORD MOTOR CO.
  3. Loosen the nuts.

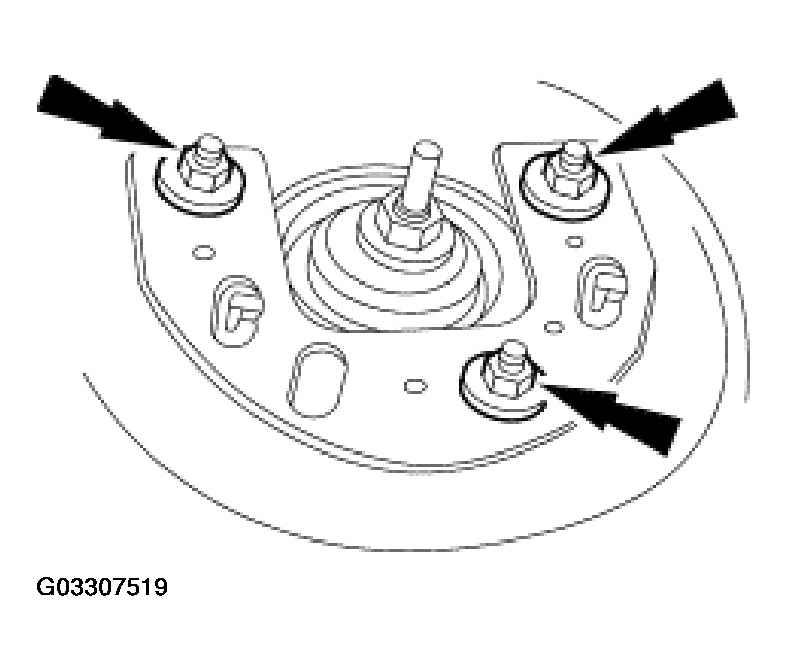

    Fig 2: Loosening Strut Tower Nuts
    G03307519Courtesy of FORD MOTOR CO.
  4. CAUTION: Do not cut deeper than necessary to remove the alignment plate.

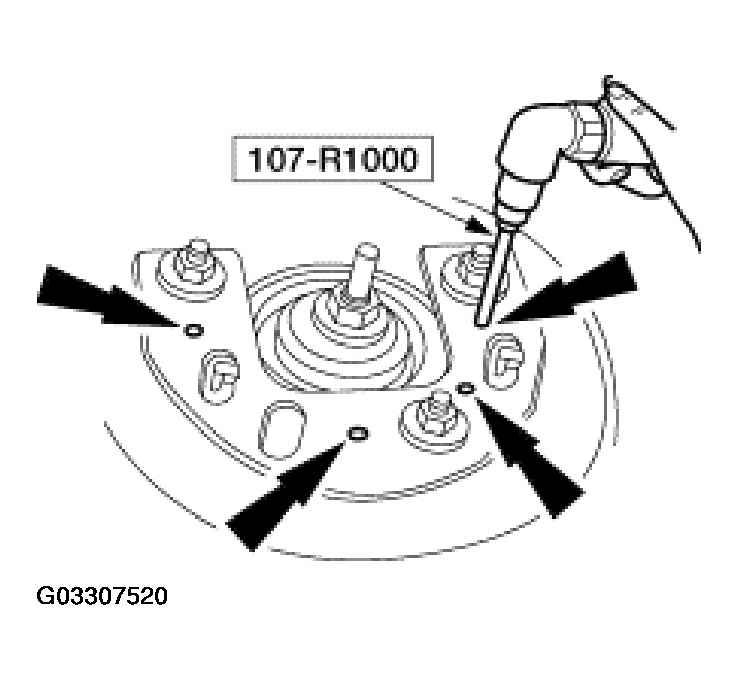

    Fig 3: Removing Spot Welds
    G03307520Courtesy of FORD MOTOR CO.
  5. Using the special tool, remove the four spot welds.
  6. Remove the nuts and the alignment plate.

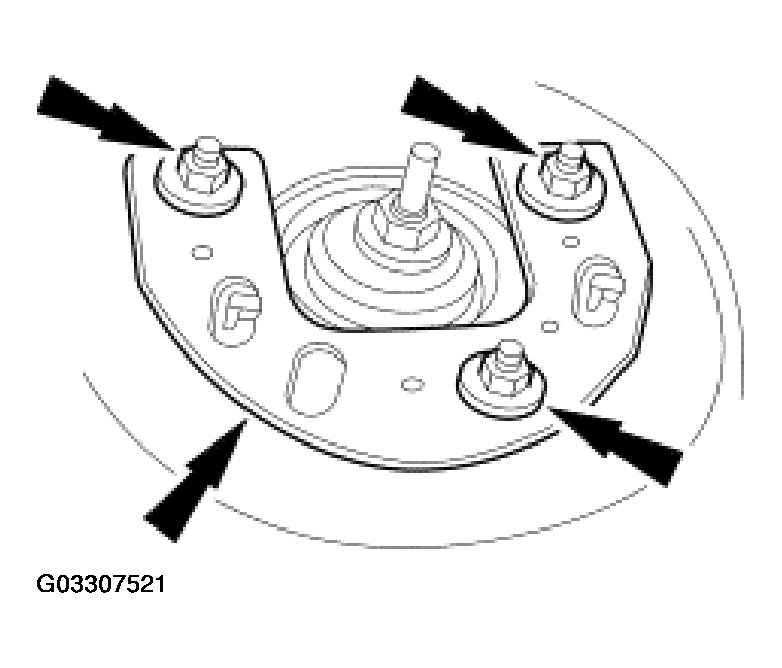

    Fig 4: Removing Alignment Plate
    G03307521Courtesy of FORD MOTOR CO.
  7. Prepare the shock tower and alignment plate surfaces.
    • Remove any burrs.
    • Clean and paint any exposed metal.

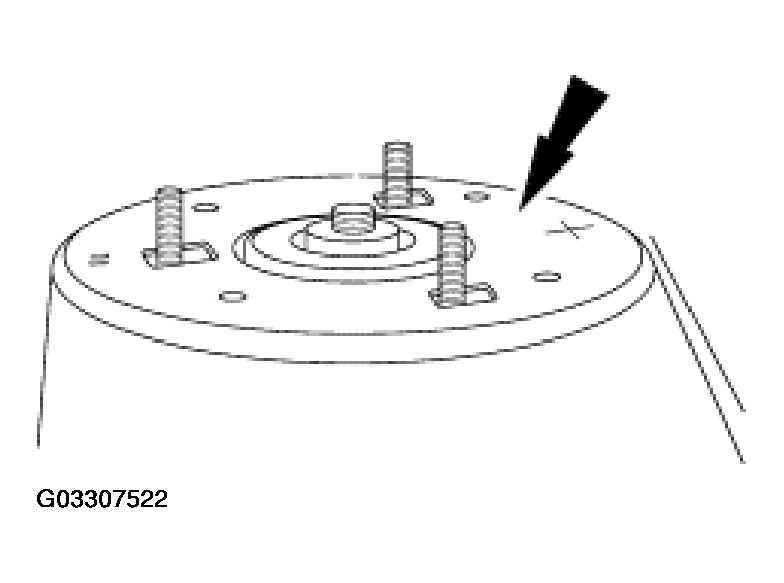

    Fig 5: Preparing Shock Tower And Alignment Plate Surfaces
    G03307522Courtesy of FORD MOTOR CO.
  8. Position the alignment plate. Loosely install the nuts.

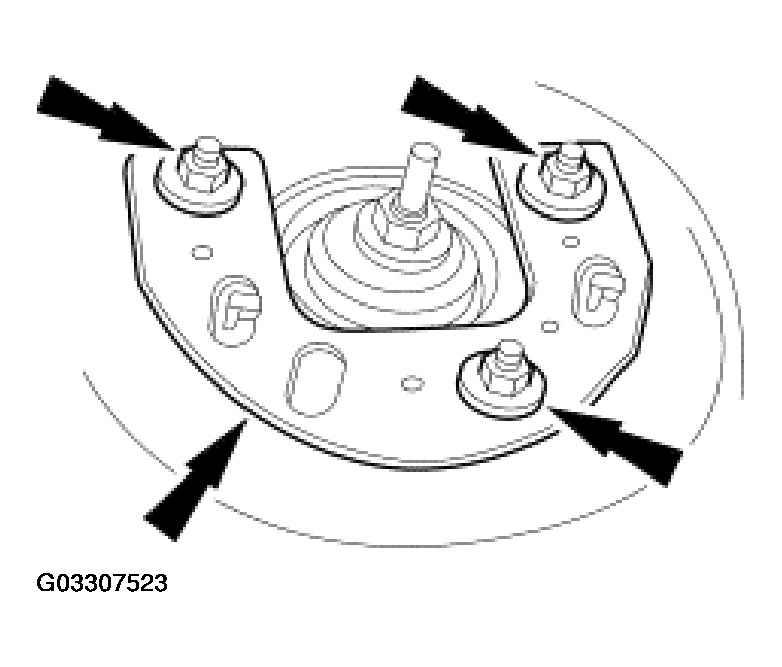

    Fig 6: Installing Alignment Plate
    G03307523Courtesy of FORD MOTOR CO.
  9. Adjust the camber and caster.
  10. Tighten the nuts.

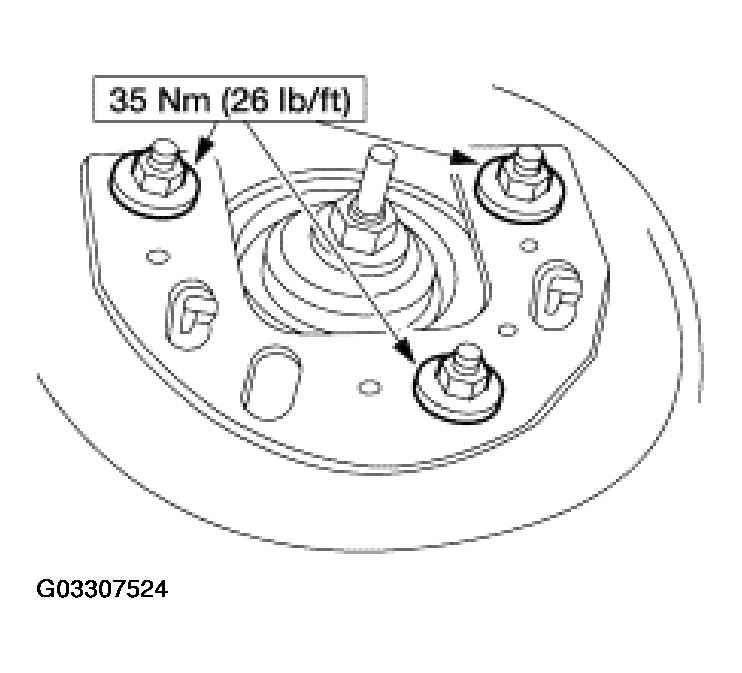

    Fig 7: Tightening Strut Tower Nuts
    G03307524Courtesy of FORD MOTOR CO.
  11. Check the alignment settings. Follow the manufacturer's instructions. Readjust the camber and caster as necessary.
  12. CAUTION: Do not drill deeper than 9.6 mm (0.37 in) into the shock tower.

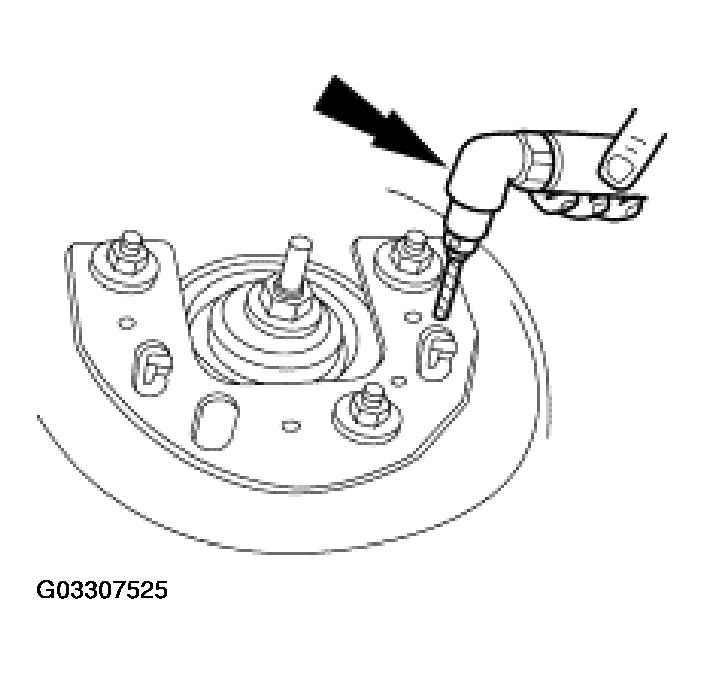

    Fig 8: Drilling Holes Through Alignment Plate And Shock Tower
    G03307525Courtesy of FORD MOTOR CO.

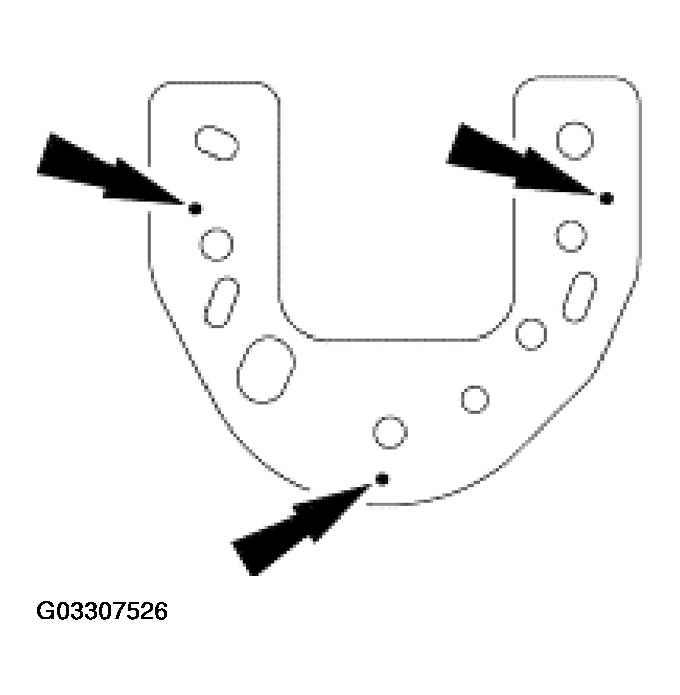

    Fig 9: Identifying Holes On Alignment Plate And Shock Tower
    G03307526Courtesy of FORD MOTOR CO.
  13. Drill three 3.2 mm (0.12 in) holes through the alignment plate and shock tower.
    • Clean and paint any exposed metal.
  14. Install three pop rivets.
    • Use 3.2 mm (0.12 in) diameter x 6.4 mm (0.25 in) grip range steel pop rivets.

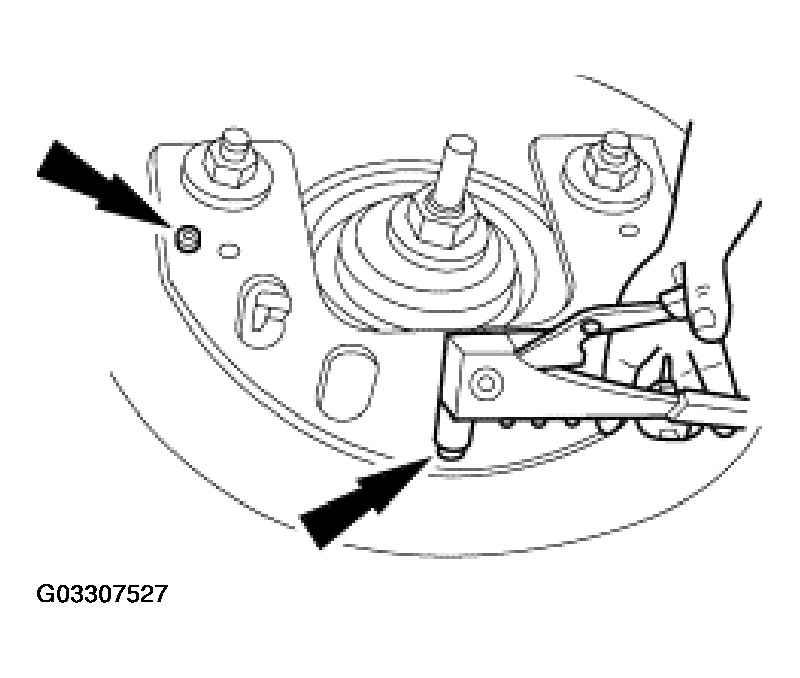

    Fig 10: Installing Pop Rivets
    G03307527Courtesy of FORD MOTOR CO.
  15. Install the cowl top vent panel. For additional information, refer to BODY SYSTEM - EXTERIOR .
