Item 1: Shock Absorber-To-Upper Mount Nut Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the strut and spring assembly top shaft retaining nut.
    • Position a suitable pass-through socket wrench onto the strut shaft top retaining nut.
    • Place a 10-mm six point deep well socket on top of the strut shaft.
    • Remove the strut shaft while holding the retaining nut in place.

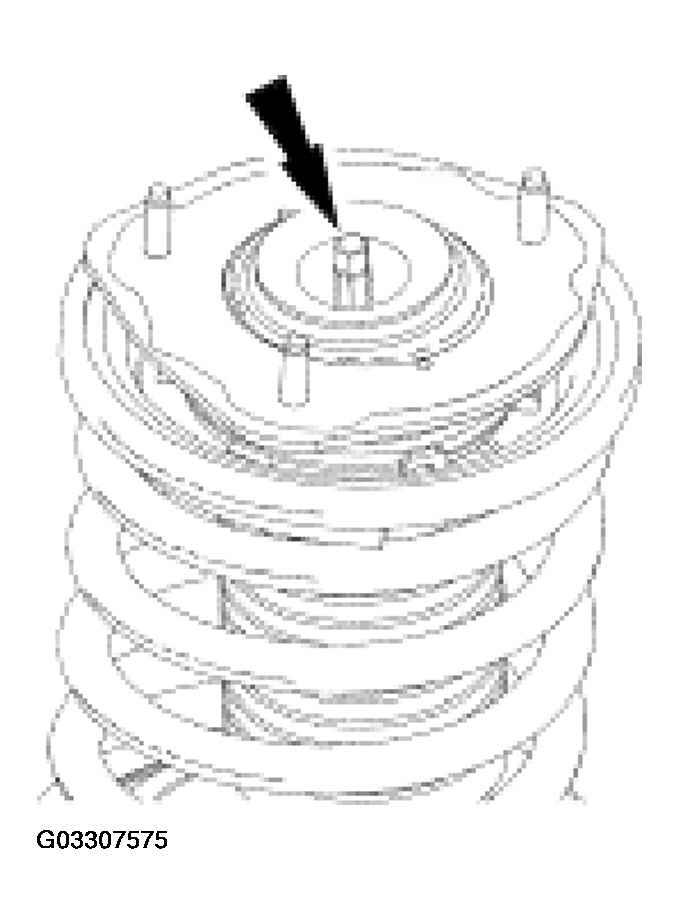

    Fig 1: Removing Strut And Spring Assembly Top Shaft Retaining Nut
    G03307575Courtesy of FORD MOTOR CO.
