Pinpoint Test F: Drumming Noise

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

F1 CHECK THE EXHAUST SYSTEM
- Key in START position.
- Increase the engine rpm until the noise is the loudest. Note the engine rpm.
- Key in OFF position.
- Add approximately 9 kg (20 lb) of weight to the exhaust system. First place the weight at the tail pipe and test, then place it at the front pipe.

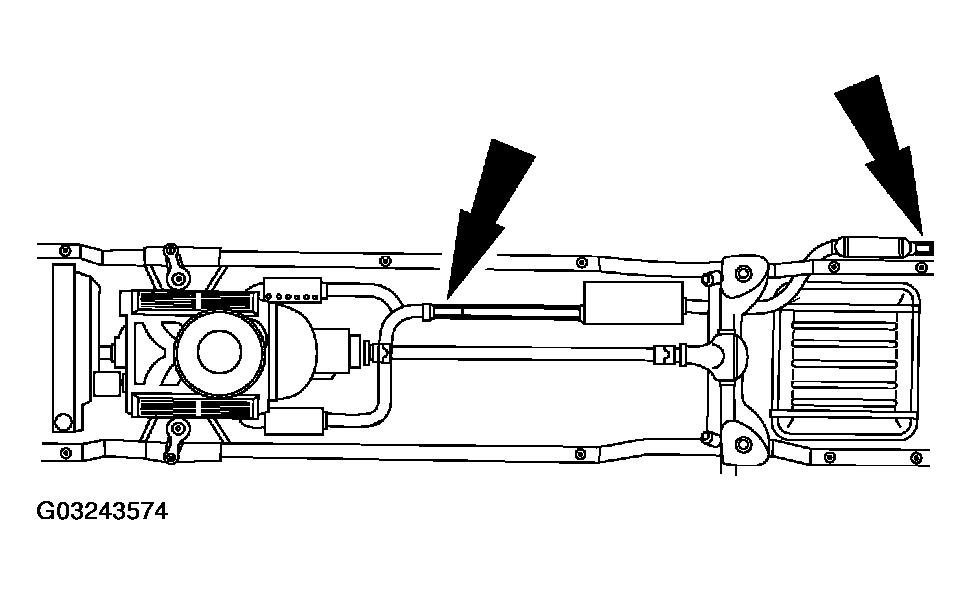

  Fig 1: Checking Exhaust System
  Courtesy of FORD MOTOR CO.
- Key in START position.
- Increase the engine rpm and listen for the drumming noise. Note the engine rpm if the noise occurs.
- Key in OFF position.
- Using a vibration analyzer (VA), determine the amount of vibration that occurs with the drumming noise.
- Is the noise/vibration reduced or eliminated, or does the noise/vibration occur at a different rpm?
Yes

Carry out EXHAUST SYSTEM NEUTRALIZING . TEST the system for normal operation.

No

GO to F2.
F2 POWERTRAIN/DRIVETRAIN MOUNT NEUTRALIZING
- Carry out POWERTRAIN/DRIVETRAIN MOUNT NEUTRALIZING . Test the system for normal operation.
- Is the noise reduced or eliminated?
Yes

Vehicle OK. TEST the system for normal operation.

No

CONDUCT diagnosis of other suspect components.
