Lifting Points - Frame Contact Lift, Drive- On Lift, Two Post Lift, Single Post Lift
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

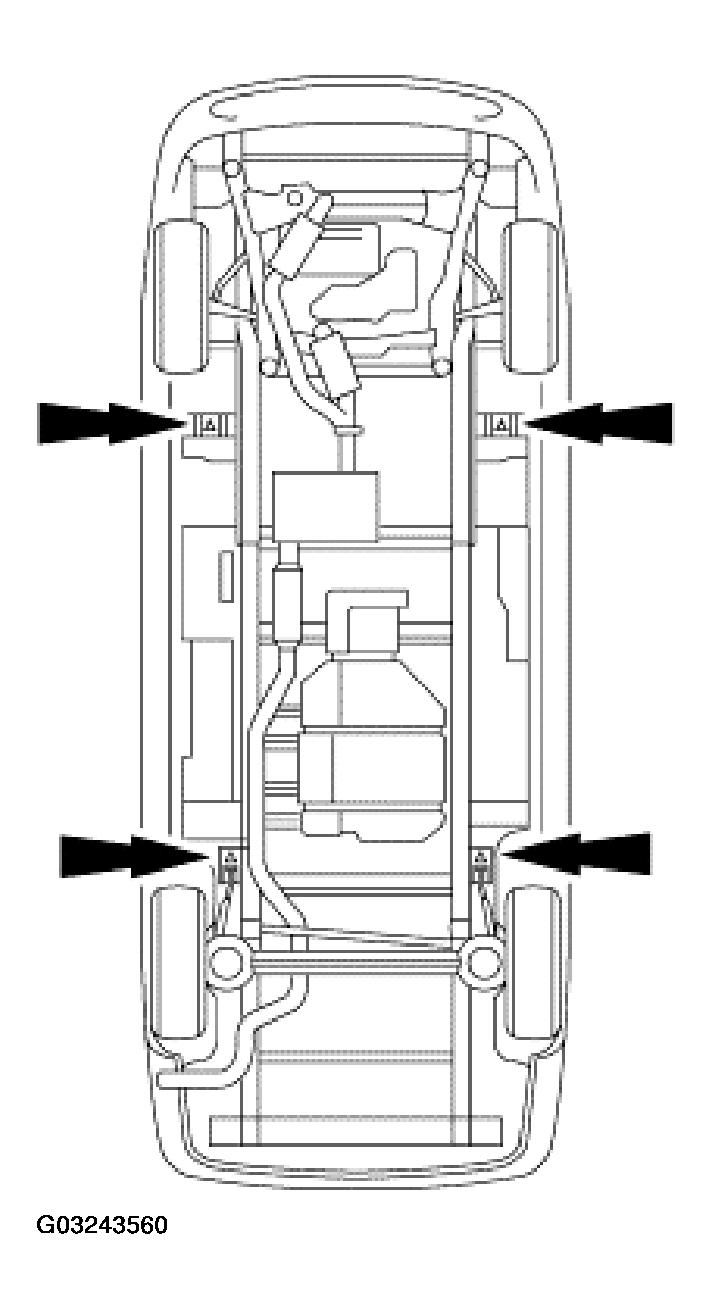

All four hoist contact points must contact the designated vehicle lifting locations, identified by a triangle stamped in the unibody sheet metal. Using other areas to lift the vehicle may cause damage to the vehicle or personal injury. Failure to follow these instructions may result in personal injury.
NOTE:
Adapters may be necessary to clear vehicle components to lift the vehicle safely. The adapters must be placed at the four designated contact points. Position the adapters so they are centered on the adapter contact area.
Lift the vehicle.
