Safety Belt Buckle and Pretensioner - Bucket and 40 Percent Bench: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Install the safety belt buckle pretensioner and install the safety belt buckle pretensioner nut.

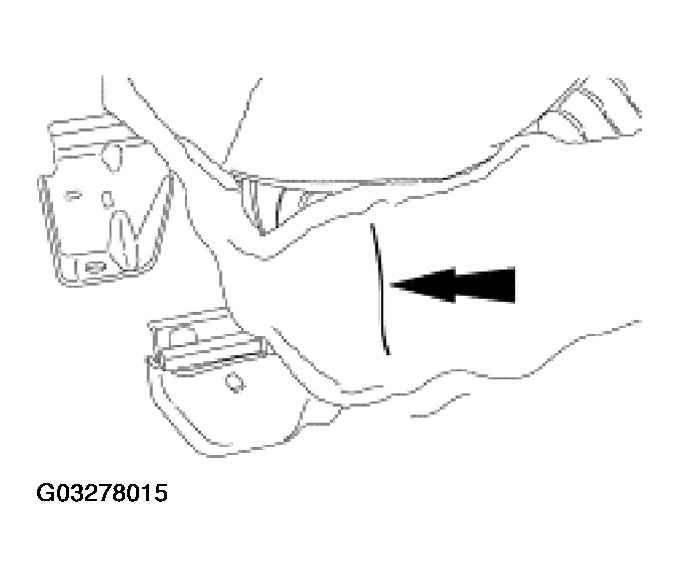

Fig 1: Installing Safety Belt Buckle Pretensioner And Nut

Courtesy of FORD MOTOR CO.

Route the safety belt buckle pretensioner wire harness through the seat frame and attach the safety belt buckle pretensioner wire harness to the seat cushion pan.

Fig 2: Attaching Safety Belt Buckle Pretensioner Wire Harness To Seat Cushion Pan
Courtesy of FORD MOTOR CO.
Install the safety belt buckle pretensioner cover and install the screw.

Fig 3: Installing Safety Belt Buckle Pretensioner Cover
Courtesy of FORD MOTOR CO.
Attach the inboard side J-clip.

Fig 4: Attaching Inboard Side J-Clip
Courtesy of FORD MOTOR CO.
Attach the inboard side rear J-clip.

Fig 5: Attaching Inboard Side Rear J-Clip

Courtesy of FORD MOTOR CO.

Install the affected seat. For additional information, refer to SEATING .
Repower the SRS. For additional information, refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
