Safety Belt Buckle and Pretensioner - 60 Percent Bench: Installation
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

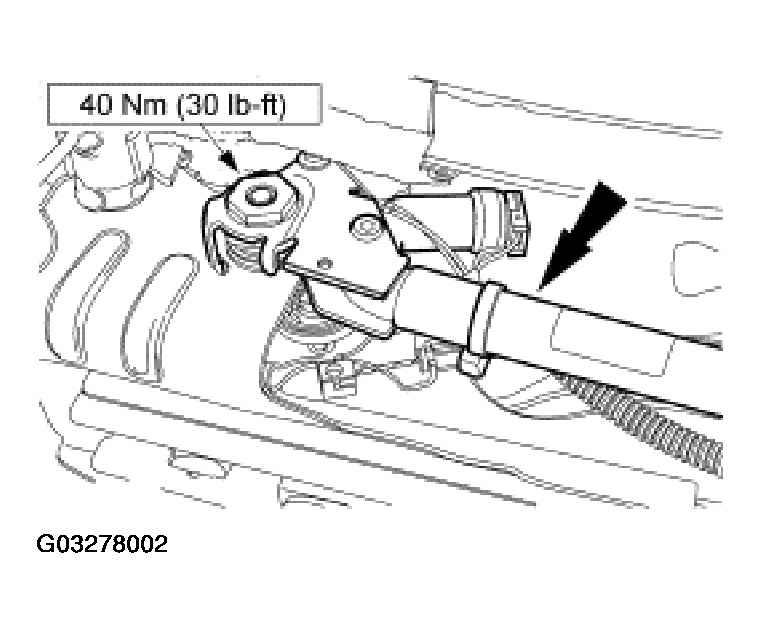

- Install the safety belt buckle pretensioner and install the nut.

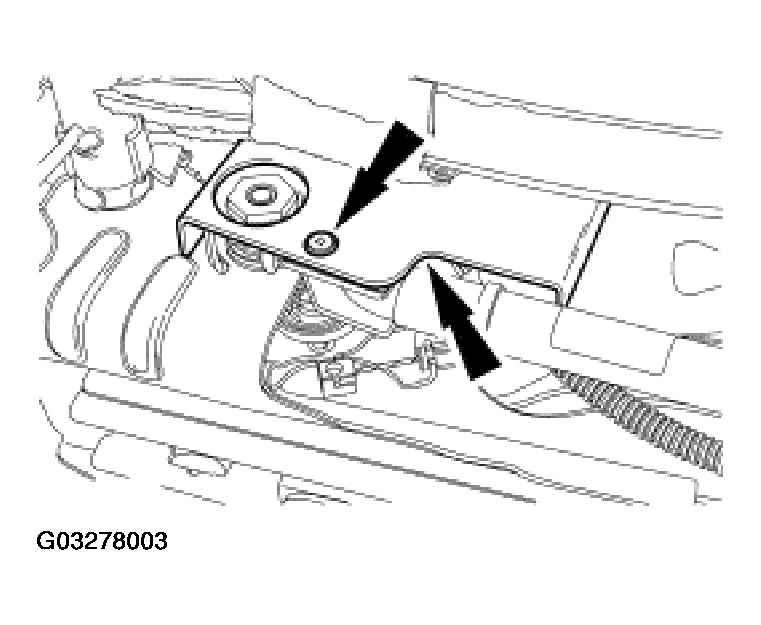

- Install the safety belt buckle pretensioner cover and install the screw.

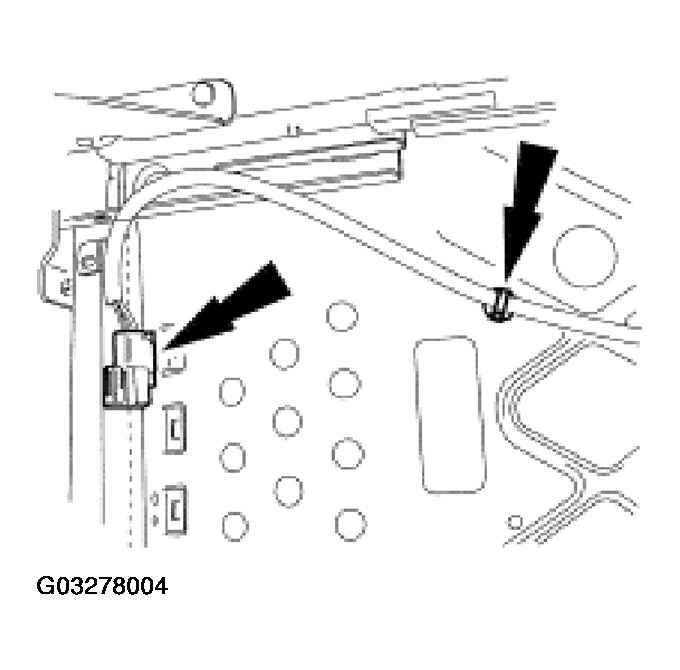

- Route the safety belt buckle pretensioner wire harness through the seat and attach the harness clips and the electrical connector to the seat cushion pan.
- Install the 60 percent bench seat. For additional information, refer to SEATING .
- Repower the SRS. For additional information, refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
- Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
