Safety Belt Buckle - Rear Seat, Four -Door, SuperCab: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the safety belt buckle.
    1. Use Safety Belt Bolt Bit to remove the bolt.
    2. Remove the safety belt buckle.

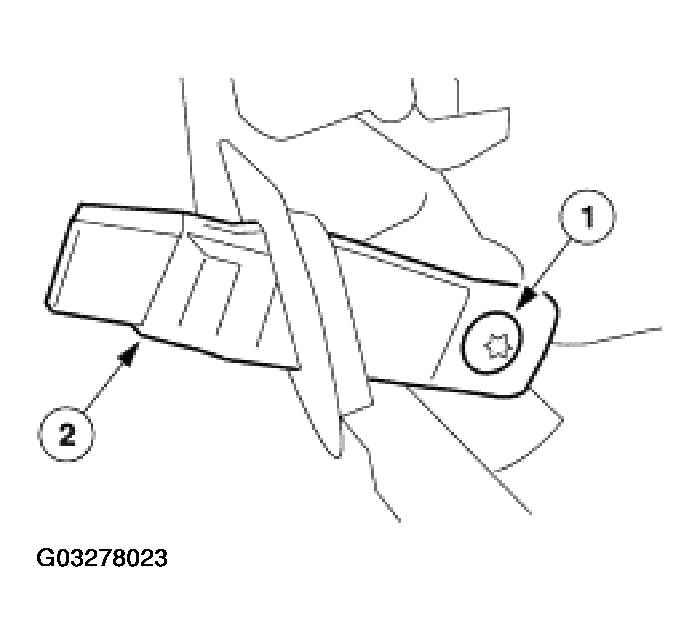

      Fig 1: Removing Safety Belt Buckle
      G03278023Courtesy of FORD MOTOR CO.
