Safety Belt Buckle - Center Facing Rear Seat: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Apply Ford Threadlock 262 (E2FZ-19554-B) or equivalent to fasteners when installing seat belt buckle or retractor assemblies.

Install the seat back trim cover and the safety belt buckle.
1. Install the seat back trim cover and the safety belt buckle.
2. Install the rivets.
  - Use rivet, part number 380335-S or equivalent.

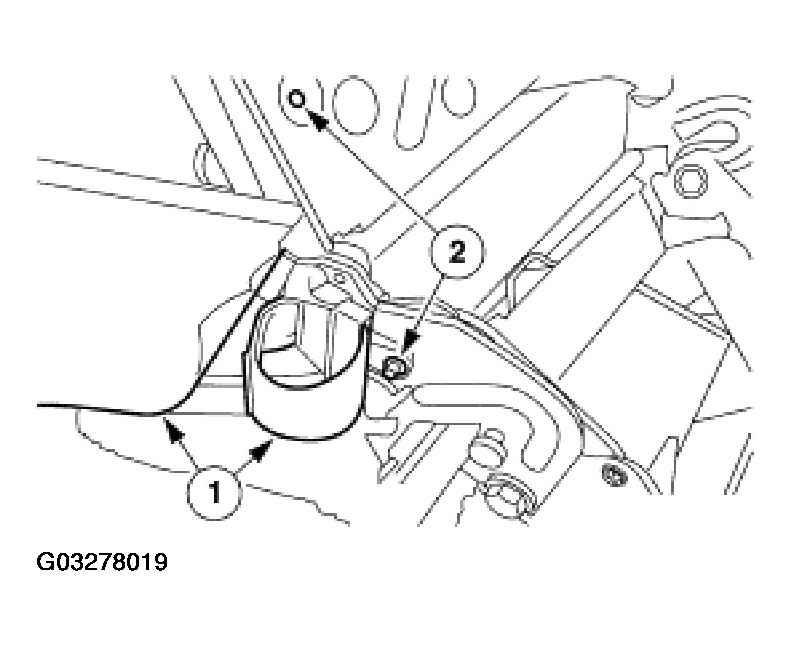

    Fig 1: Installing Rivets
    Courtesy of FORD MOTOR CO.
Install the seat back trim cover.

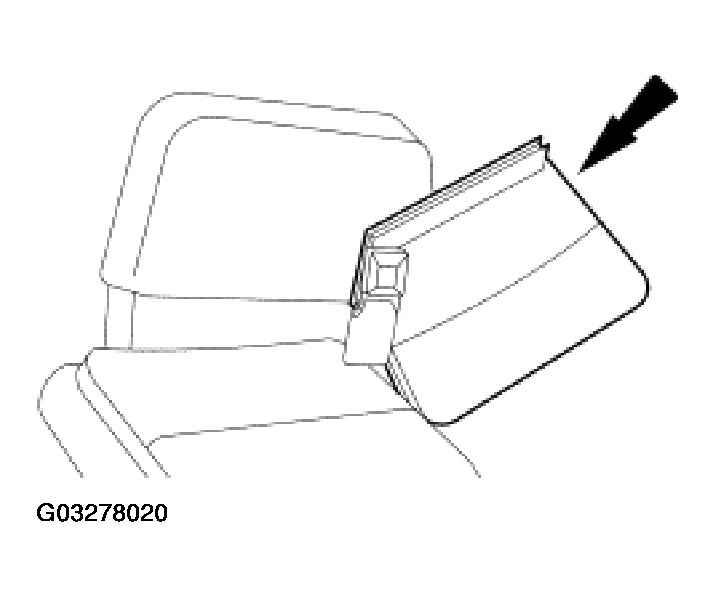

Fig 2: Installing Seat Back Trim Cover
Courtesy of FORD MOTOR CO.
Fasten the trim cover retainer.

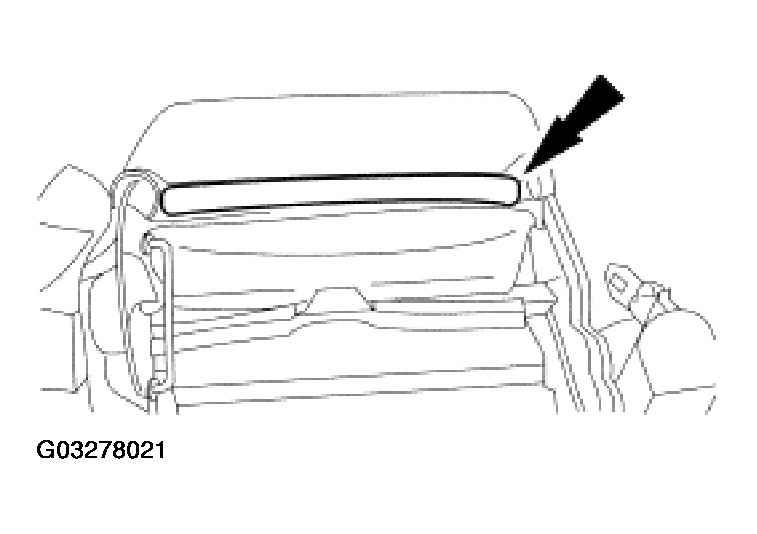

Fig 3: Fastening Trim Cover Retainer
Courtesy of FORD MOTOR CO.
Install the center facing rear seat. For additional information, refer to SEATING .
