Retractor - Center Facing Rear Seat: Notes

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

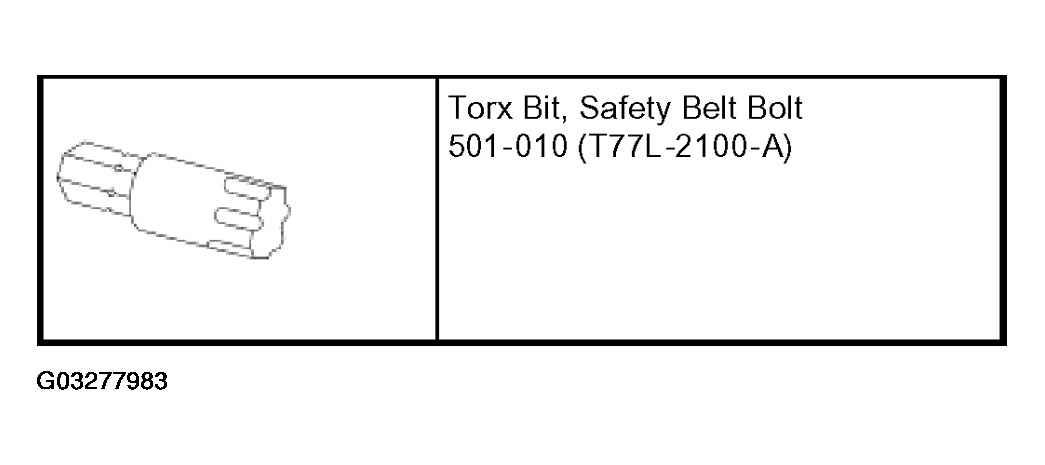

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

Remove the lower rear seat trim panel.
1. Remove the pin-type retainers.
2. Remove the lower rear seat trim panel.

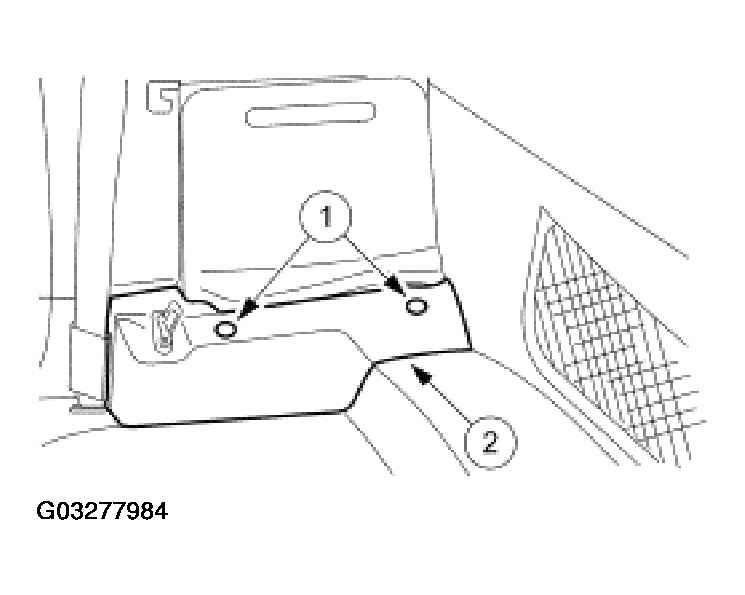

  Fig 2: Removing Lower Rear Seat Trim Panel
  Courtesy of FORD MOTOR CO.
Remove the center facing rear safety belt retractor.
1. Use Safety Belt Bolt Bit to remove the bolt.
2. Remove the center facing rear safety belt retractor.

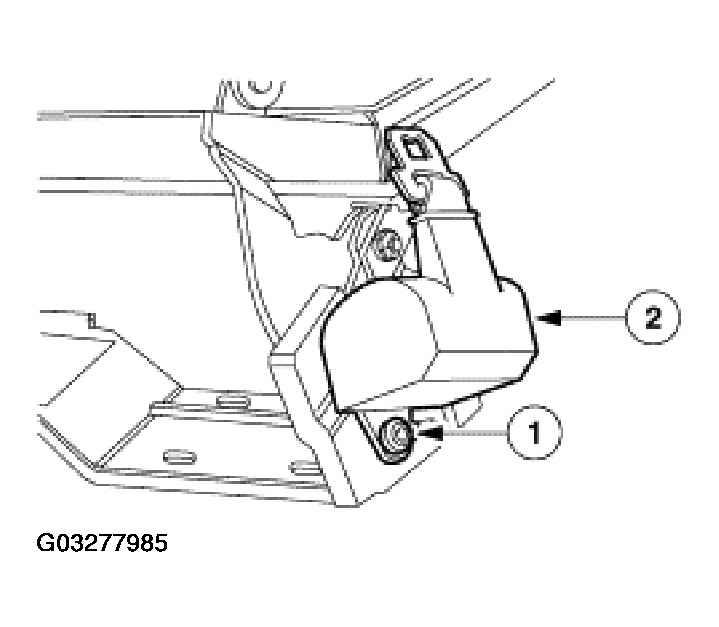

  Fig 3: Removing Center Facing Rear Safety Belt Retractor
  Courtesy of FORD MOTOR CO.
