Height Adjuster: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the shoulder safety belt height adjuster cover.

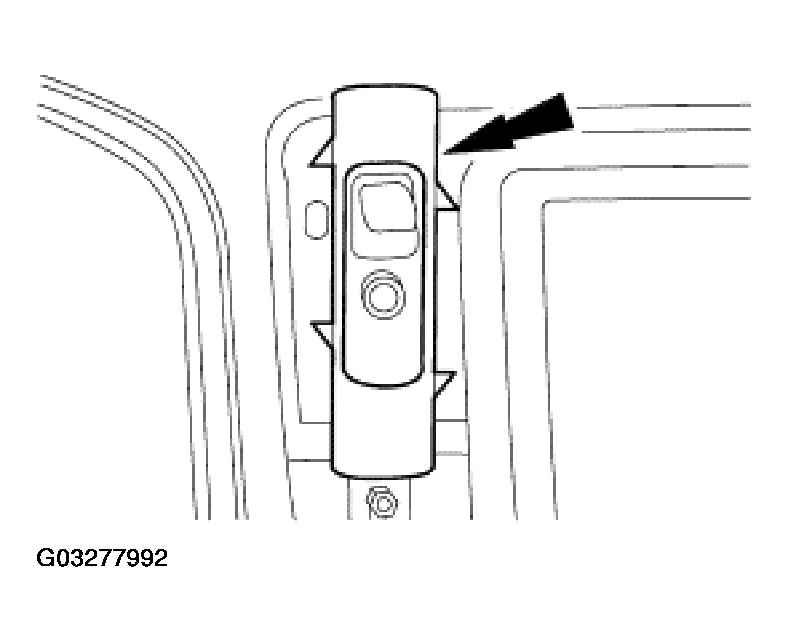

    Fig 1: Removing Shoulder Safety Belt Height Adjuster Cover
    G03277992Courtesy of FORD MOTOR CO.
  3. Remove the shoulder safety belt height adjuster.
    1. Use Safety Belt Bolt Bit to remove the bolts.
    2. Remove the shoulder safety belt height adjuster.

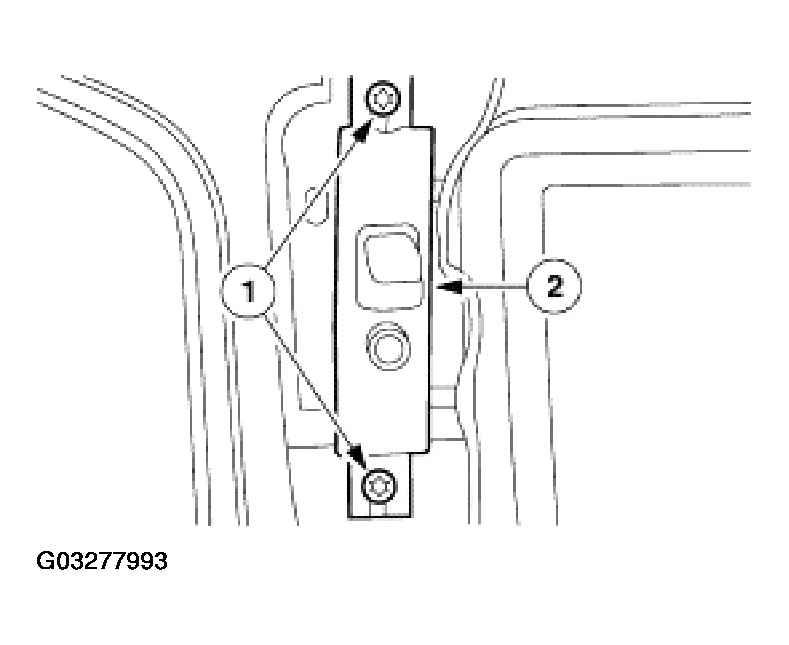

      Fig 2: Removing Shoulder Safety Belt Height Adjuster
      G03277993Courtesy of FORD MOTOR CO.
