Front Safety Belt Retractor: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the front safety belt retractor and tongue.
    1. Use Safety Belt Bolt Bit to remove the bolt.
    2. Remove the front safety belt retractor and tongue.

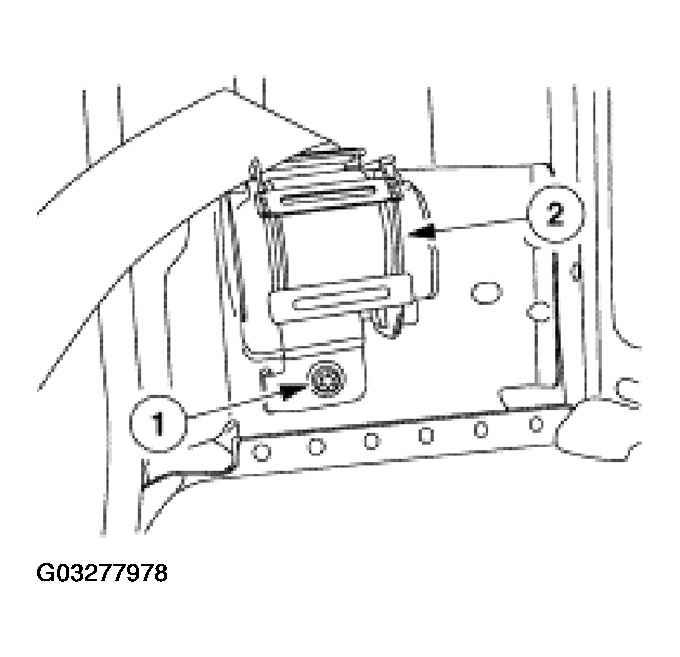

      Fig 1: Removing Front Safety Belt Retractor And Tongue
      G03277978Courtesy of FORD MOTOR CO.
