Pivot Arm: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper pivot arm.
    1. Pull up on the pivot arms.
    2. Pull out on the retainer tabs.

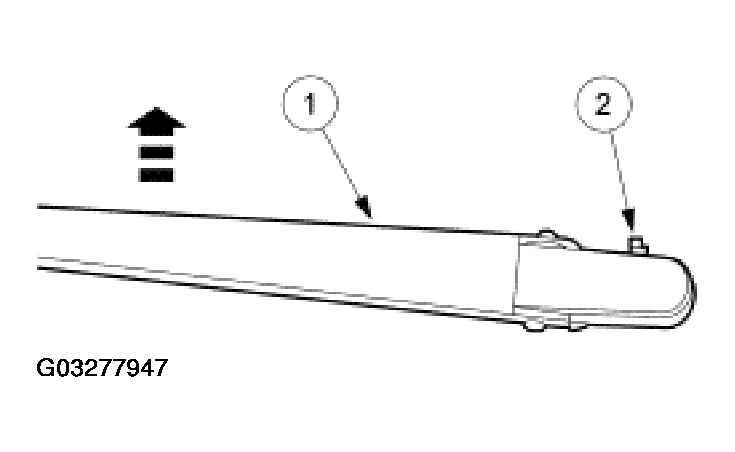

      Fig 1: Removing Windshield Wiper Pivot Arm
      G03277947Courtesy of FORD MOTOR CO.
