Mounting Arm and Pivot Shaft: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To avoid possible damage to the windshield wiper adapter and connecting arm clip (17531), be sure the clip is fully seated before installing the adapter and connecting the arm clip on the windshield wiper motor crank pin.

NOTE: Be sure to install the RH windshield wiper mounting arm and pivot shaft onto the windshield wiper motor crank pin until it snaps into place.

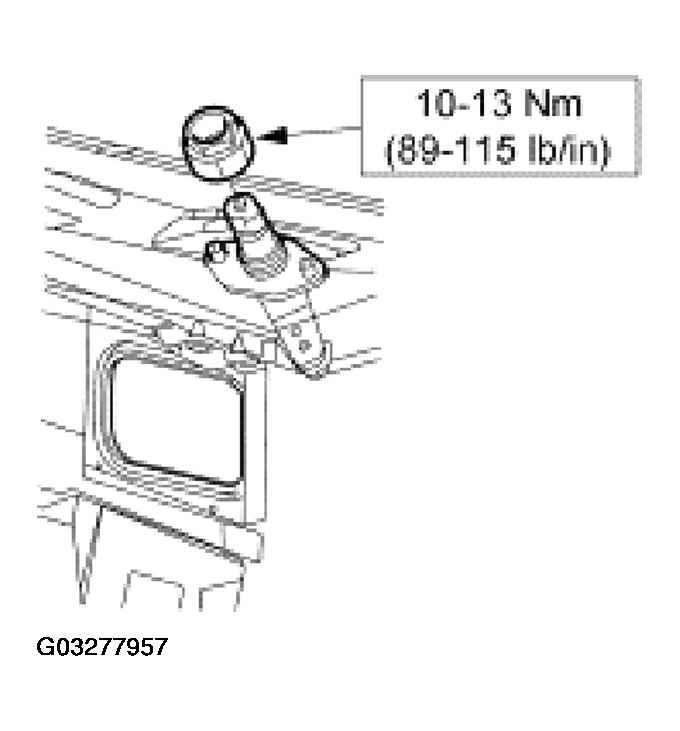

Fig 1: Installing RH And LH Pivot Nuts

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
