Motor - Windshield Wiper: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The internal permanent magnets used in the windshield wiper motor (17504) are made of a glass-like material. To avoid damaging the magnets, do not strike the motor with a hammer or any other object.

NOTE: The windshield wiper motor is not a repairable item. If worn or damaged, the motor must be replaced.

Cycle the windshield wiper blades (17528) until they are in the straight-up position.

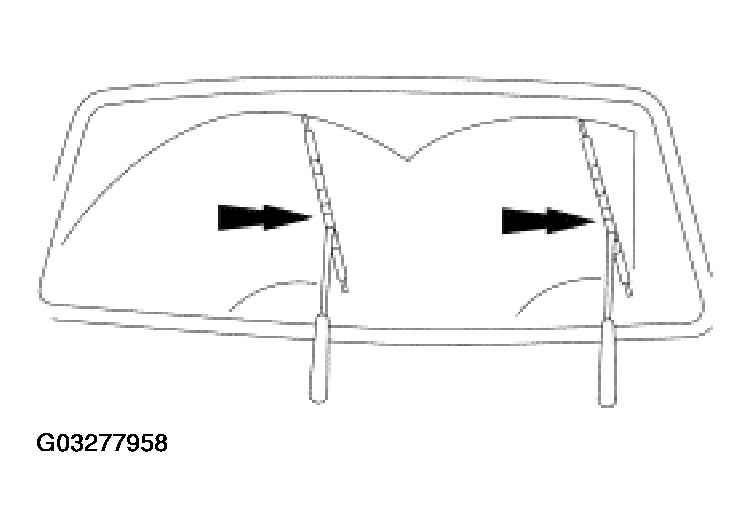

Fig 1: Cycling Windshield Wiper Blades To Straight-Up Position
Courtesy of FORD MOTOR CO.
Disconnect the battery ground cable (14301).

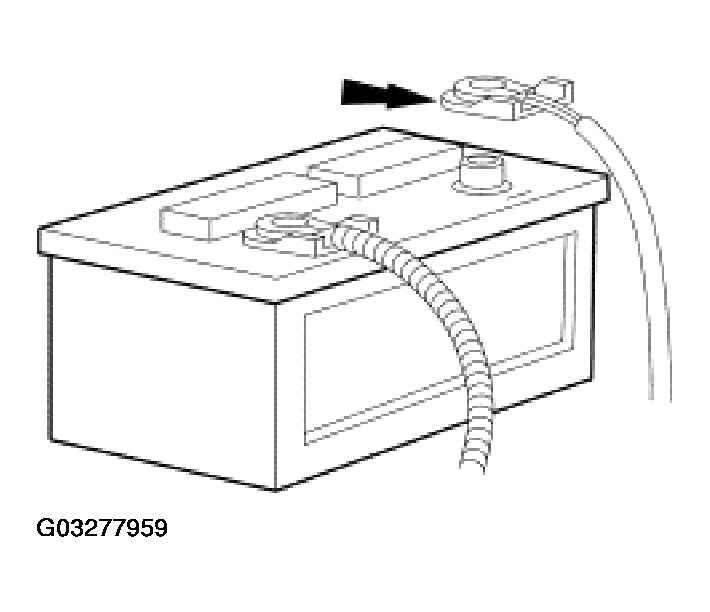

Fig 2: Disconnecting Battery Ground Cable
Courtesy of FORD MOTOR CO.
Disconnect the windshield wiper motor electrical connector.

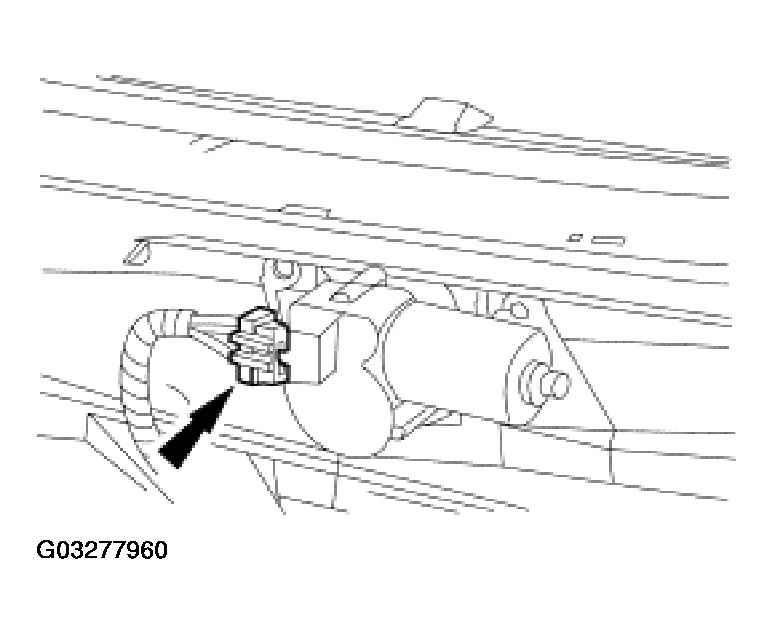

Fig 3: Disconnecting Windshield Wiper Motor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the RH access cover.
1. Remove the screws.
2. Remove the access cover.

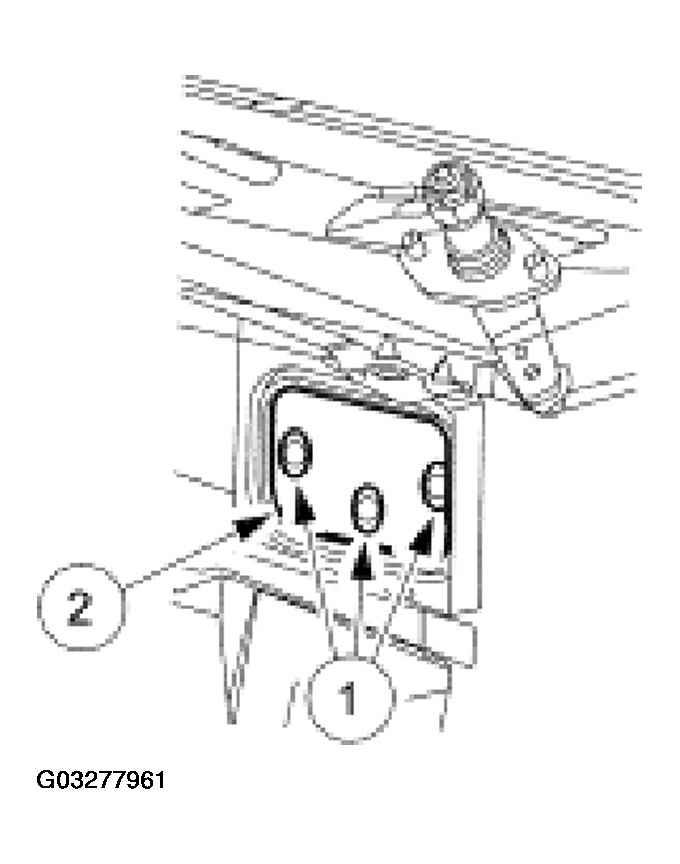

Fig 4: Removing RH Access Cover
Courtesy of FORD MOTOR CO.
Reach through the RH access cover opening and unsnap the wiper motor clip from the RH mounting arm and pivot shaft.

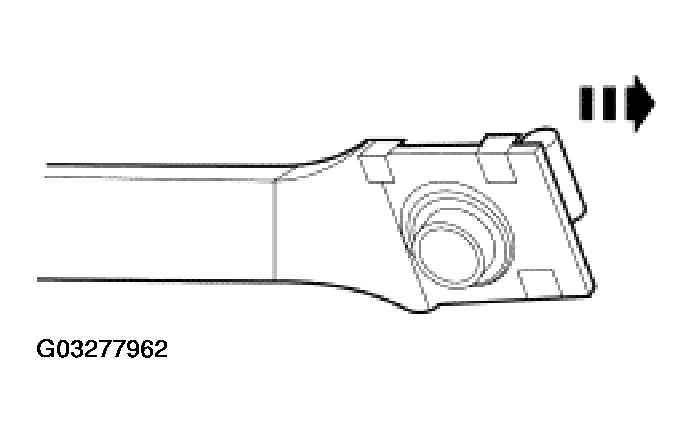

Fig 5: Unclipping Wiper Motor From RH Mounting Arm And Pivot Shaft
Courtesy of FORD MOTOR CO.
Disconnect the (A) RH windshield wiper mounting arm and pivot shaft (17566) from the (B) LH windshield wiper mounting arm and pivot shaft (17567) and move both away from the (C) windshield wiper motor.

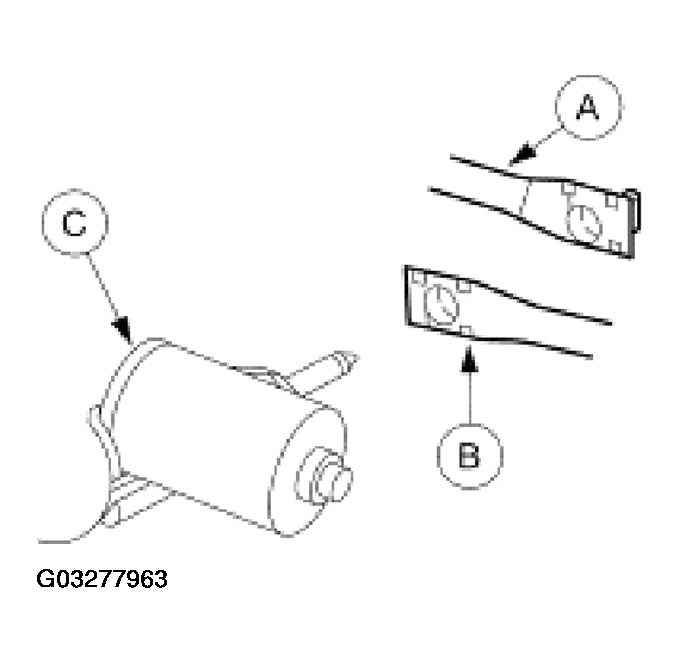

Fig 6: Disconnecting RH Windshield Wiper Mounting Arm And Pivot Shaft
Courtesy of FORD MOTOR CO.
Remove the windshield wiper motor.
- Remove the stud bolt.
- Remove the bolts.

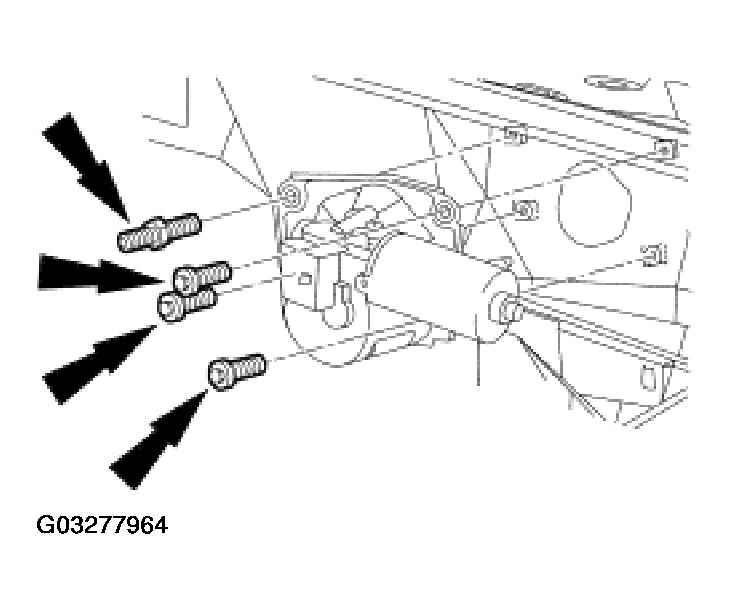

  Fig 7: Removing Windshield Wiper Motor
  Courtesy of FORD MOTOR CO.
