Motor - Windshield Wiper: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To avoid possible damage to the mounting arm and pivot shaft retainer clip, be sure the clip is fully seated before installing on the motor crank pin.

NOTE: Install the LH mounting arm and pivot shaft to the motor before installing the RH mounting arm and pivot shaft.

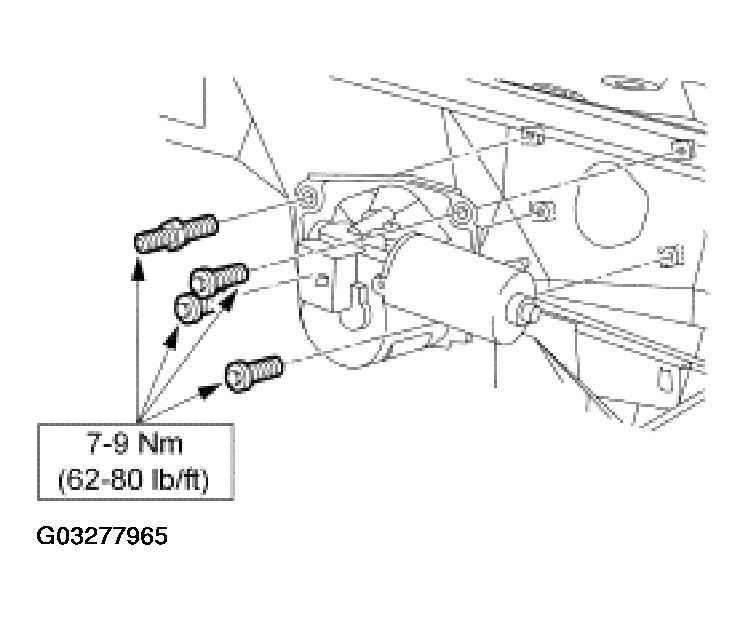

Fig 1: Installing Windshield Wiper Motor

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
