Tailgate Latch: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the tailgate access cover.
1. Remove the screws.
2. Remove the tailgate access cover.

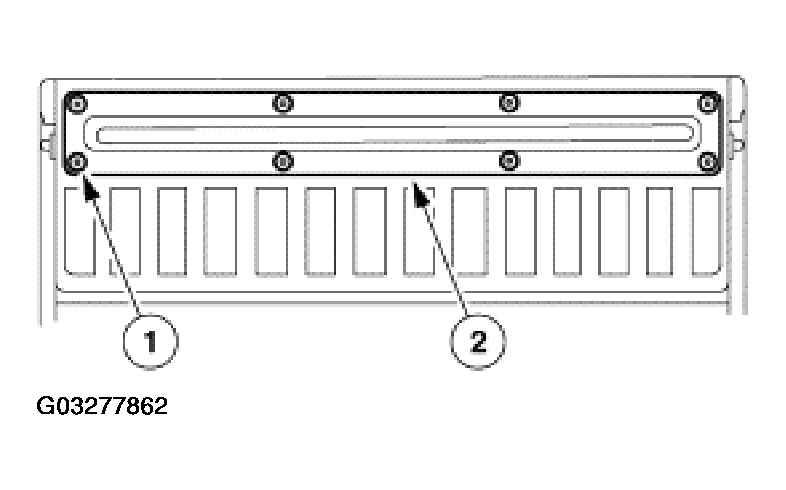

  Fig 1: Removing Tailgate Access Cover
  Courtesy of FORD MOTOR CO.
Disconnect the tailgate latch release link from the tailgate latch remote control.
1. Open the tailgate latch rod retainer.
2. Disconnect the tailgate latch release link from the tailgate latch remote control.

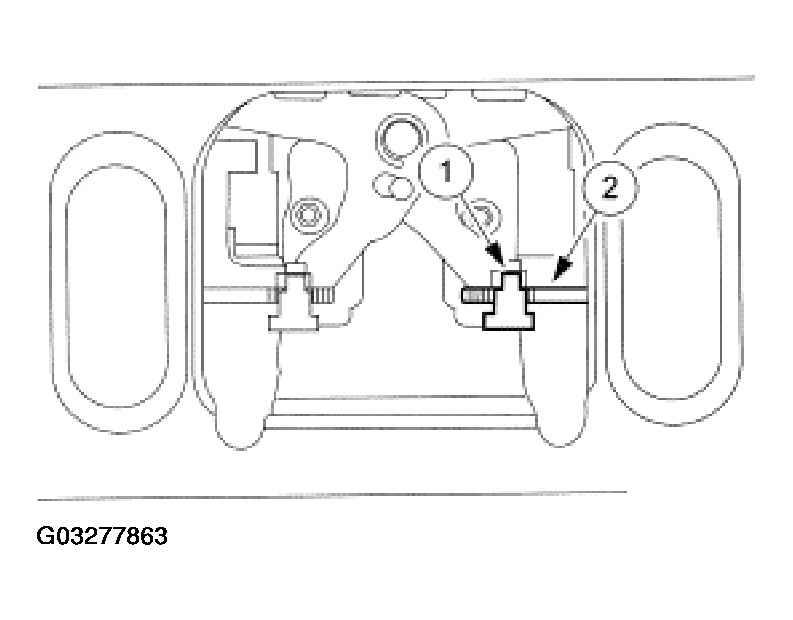

  Fig 2: Disconnecting Tailgate Latch Releasing Link From Tailgate Latch Remote Control
  Courtesy of FORD MOTOR CO.
Disconnect the tailgate support cables from the pickup bed strikers.

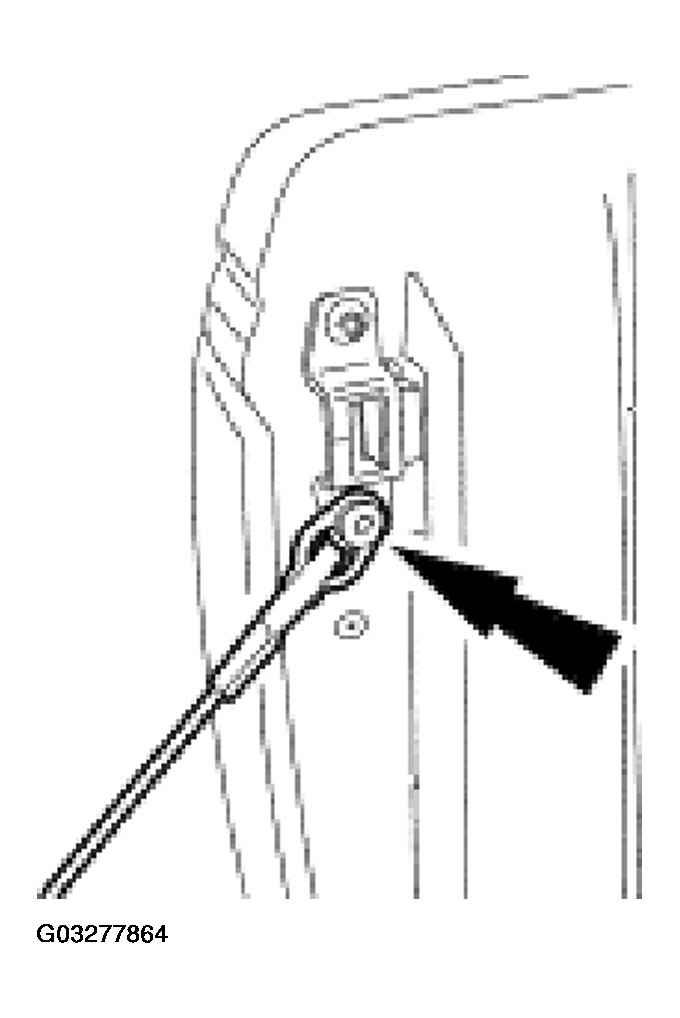

Fig 3: Disconnecting Tailgate Support Cables From Pickup Bed Strikers
Courtesy of FORD MOTOR CO.
Remove the tailgate latch.
1. Remove the bolts.
2. Remove the tailgate latch.
  - Remove the tailgate latch release link.

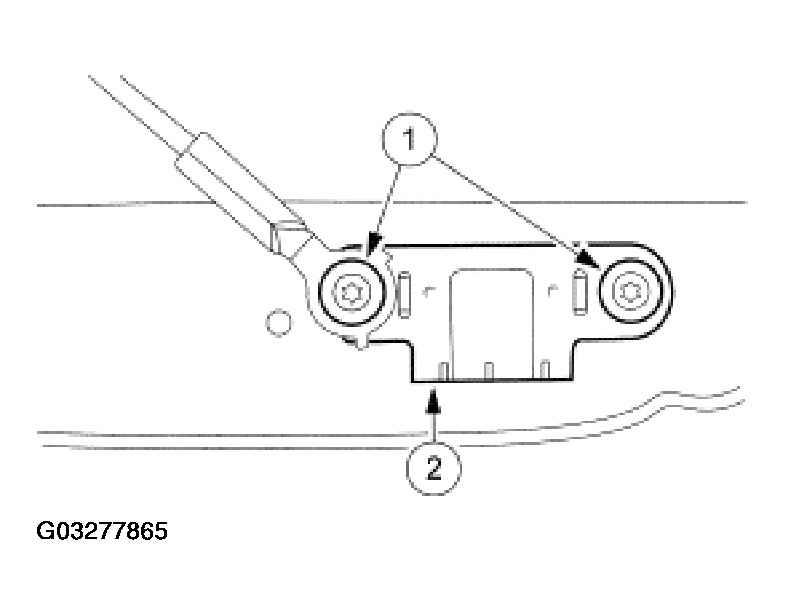

Fig 4: Removing Tailgate Latch

Courtesy of FORD MOTOR CO.
