Tailgate Latch: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Prior to installation, remove the slack in the tailgate latch release link by pulling the tailgate latch release link to the center of the tailgate. Close the tailgate latch rod retainer over the thread of the tailgate latch release link.

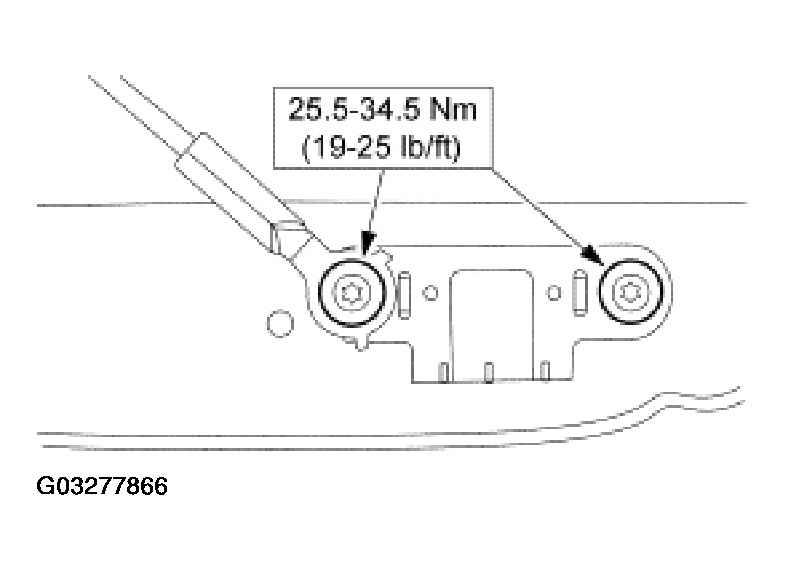

Fig 1: Installing Tailgate Latch

Courtesy of FORD MOTOR CO.

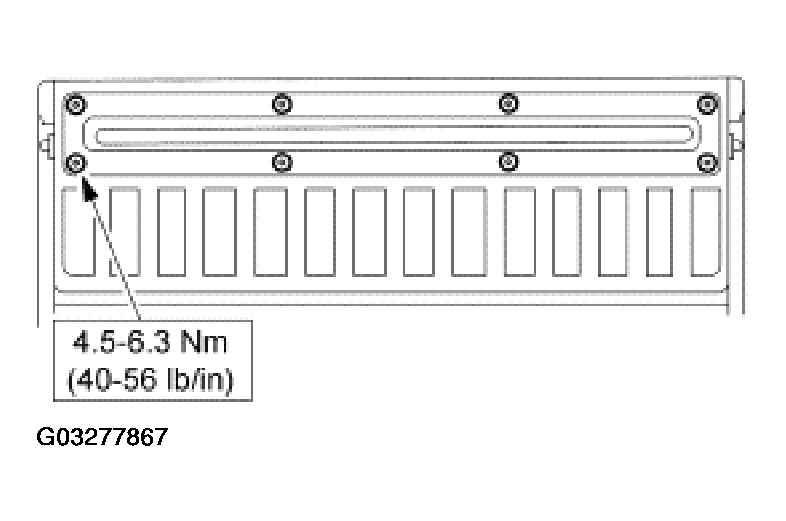

Fig 2: Installing Tailgate Access Cover

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
