Tailgate Latch Remote Control: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

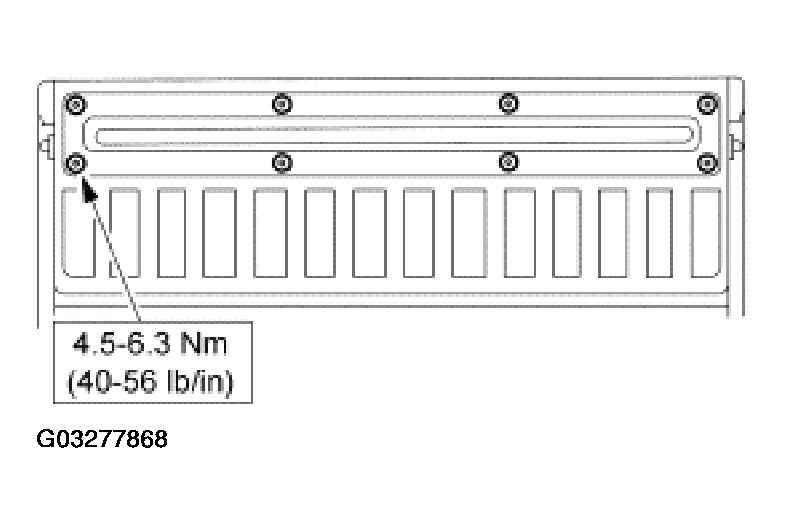

Remove the screws and the tailgate access cover.

Fig 1: Removing Tailgate Access Cover
Courtesy of FORD MOTOR CO.

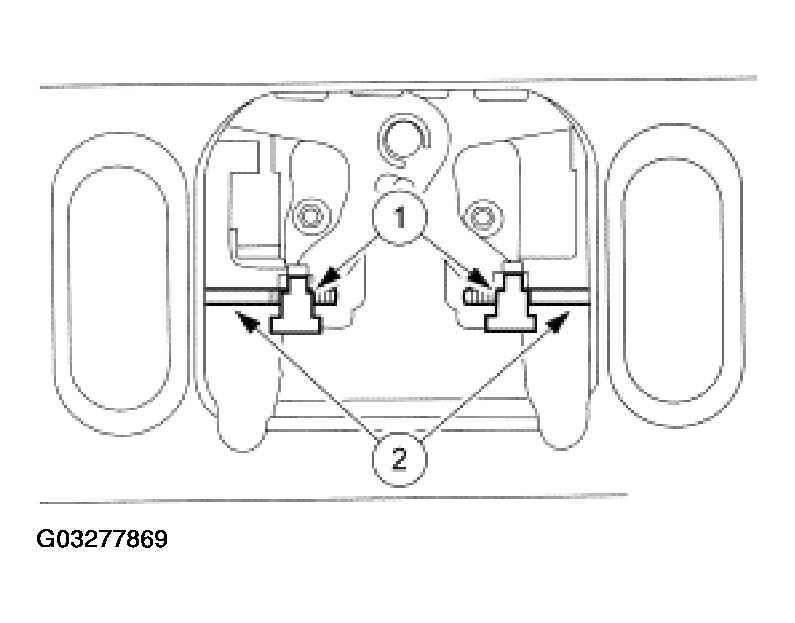

Disconnect the tailgate latch release links from the tailgate latch remote control.
1. Open the tailgate latch rod retainers.
2. Disconnect the tailgate latch release links from the tailgate latch remote control.

  Fig 2: Disconnecting Tailgate Latch Releasing Links From Tailgate Latch Remote Control
  Courtesy of FORD MOTOR CO.

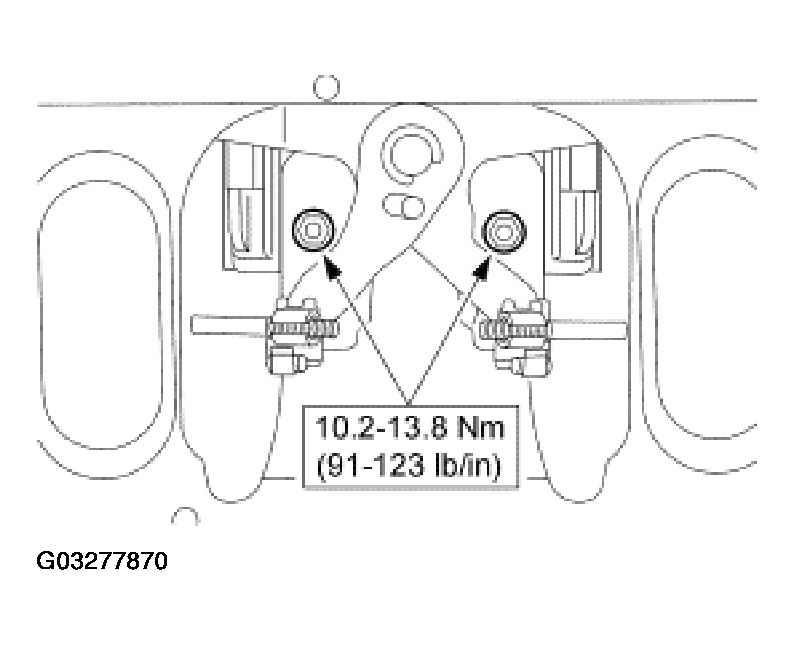

Remove the tailgate latch remote control nuts.

Fig 3: Removing Tailgate Latch Remote Control Nuts
Courtesy of FORD MOTOR CO.
Remove the tailgate latch remote control.
Transfer all components as necessary.

NOTE: Prior to installation, remove the slack in the tailgate latch release links by pulling the tailgate latch release links to the center of the tailgate. Close the plastic clip over the thread of the tailgate latch release links.

To install, reverse the removal procedure.
