Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The hood latch control handle and cable are removed and installed as an assembly.

Remove the hood latch. For additional information, refer to HOOD LATCH .
Unclip the hood latch control handle and cable from the inner fender retainer.

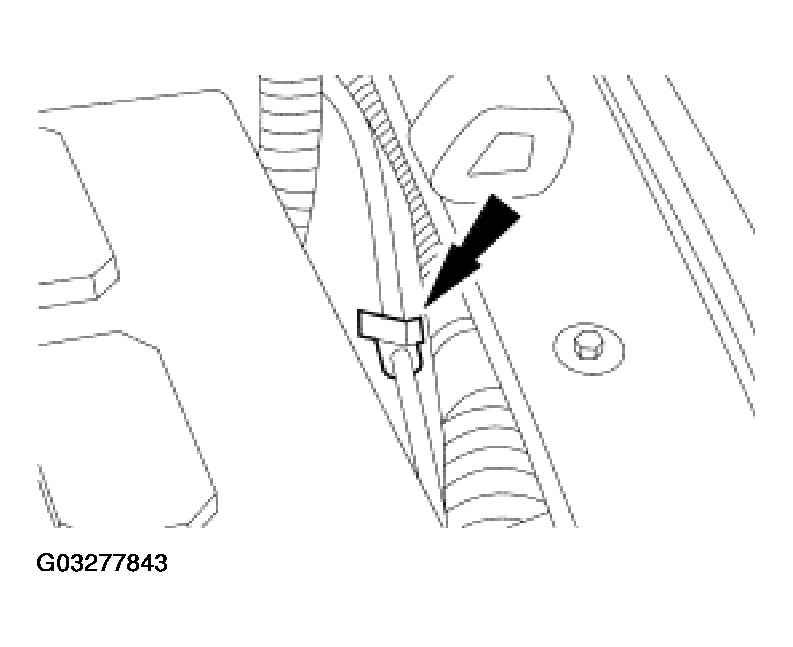

Fig 1: Unclipping Hood Latch Control Handle And Cable From Inner Fender Retainer
Courtesy of FORD MOTOR CO.
Unclip the hood latch control handle and cable retainer from the inner fender splash shield.

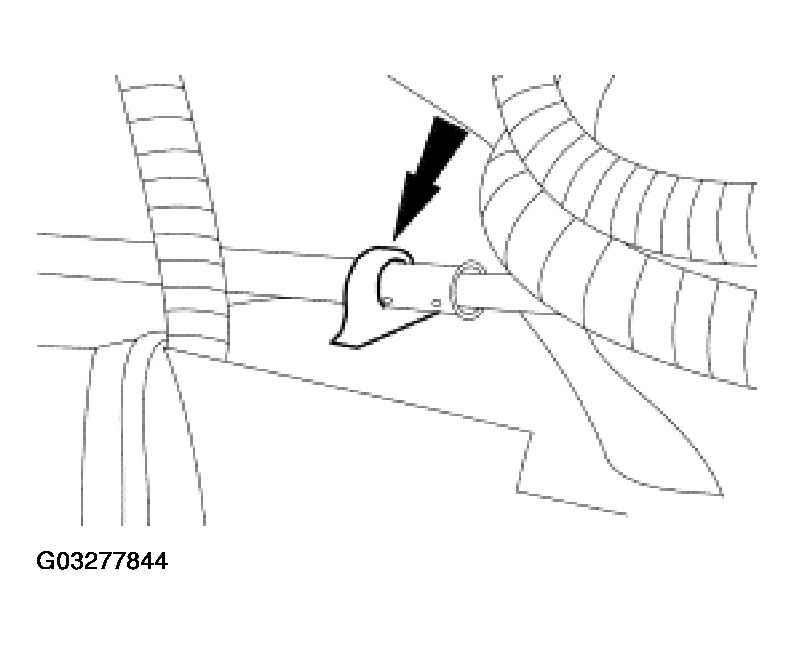

Fig 2: Unclipping Hood Latch Control Handle And Cable Retainer From Inner Fender Splash Shield
Courtesy of FORD MOTOR CO.
Remove the 2 screws and position the hood latch control handle and cable aside.

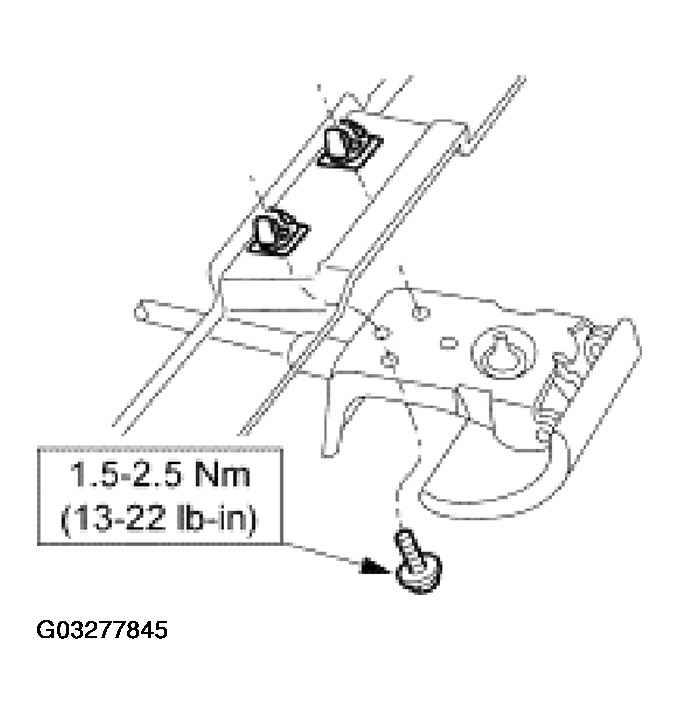

Fig 3: Positioning Hood Latch Control Handle And Cable Aside
Courtesy of FORD MOTOR CO.
Remove the hood latch control handle and cable.
1. Remove the hood latch control and cable grommet from the dash panel.
2. Remove the hood latch control handle and cable.

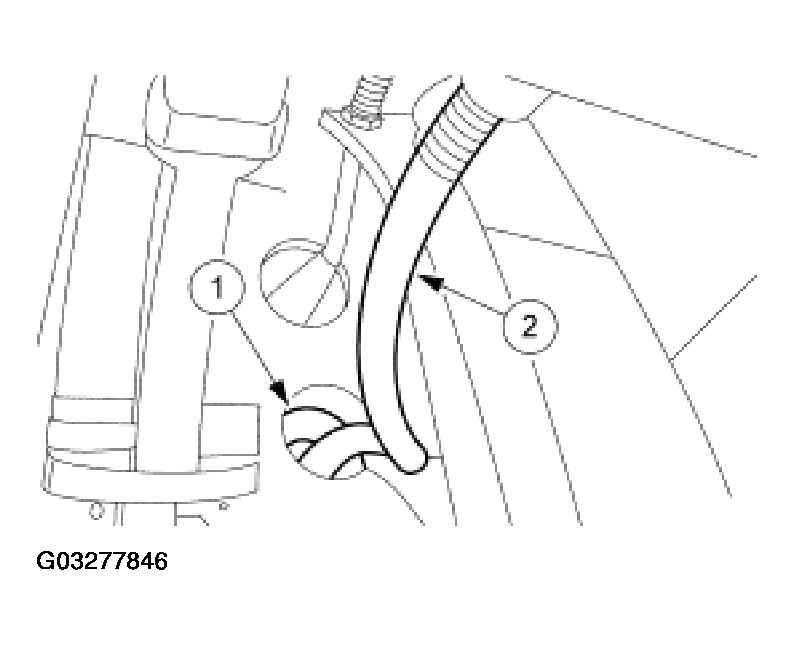

Fig 4: Removing Hood Latch Control Handle And Cable
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
