Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door latch. For additional information, refer to FRONT DOOR LATCH .
  2. Remove the door ajar switch.
    1. Lift the locking tab.
    2. Rotate and remove the door ajar switch.

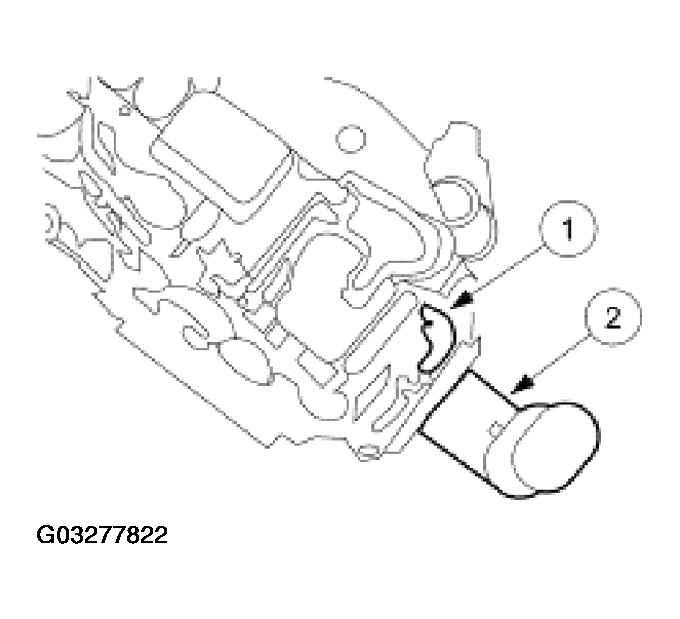

      Fig 1: Removing Door Ajar Switch
      G03277822Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
