Keyless Entry
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
The keyless entry system consists of the following components:

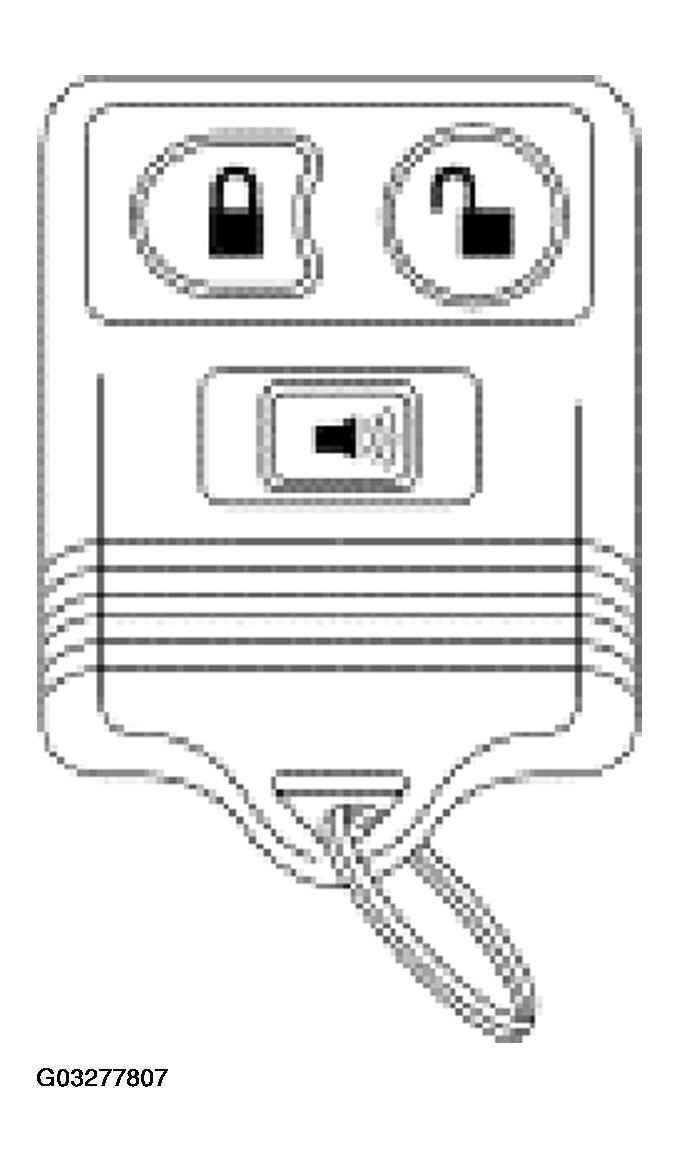

- Remote transmitter
- Smart junction box (SJB)
The remote transmitter initiates the following electronic door lock system functions:
- Unlocks the driver door
- Unlocks all doors
- Locks all doors
- Activates/deactivates the panic alarm
- Commands the interior lamps on (when unlocking) and off (when locking)
- Sounds the horn and flashes lamps once when LOCK is pressed twice within 3 seconds, and doors are closed
- Sounds the horn twice when LOCK is pressed twice within 3 seconds, and any door is ajar
The remote transmitter has a minimum operating range of 10 m (33 feet).
NOTE:
The panic alarm feature only operates when the key is OFF.
NOTE:
The LOCK and UNLOCK buttons on the remote transmitter operate independently of key position.
The remote transmitters (up to 4) are reprogrammable and must be set at the same time.
To confirm that the doors have been locked, press the LOCK button again within 3 seconds of the first press. The lamps will flash if the doors have locked and all doors are closed.
To activate the panic alarm:
- Press the red PANIC button on the remote transmitter. The horn will sound and the parking lamps will flash for a maximum of 2 minutes and 45 seconds.
To deactivate the panic alarm:
- Press the red PANIC button on the remote transmitter.
- Turn the key to RUN/START.
