Console - Floor: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat center armrest.
    1. Remove the two covers.
    2. Remove the four bolts.
    3. Remove the armrest.

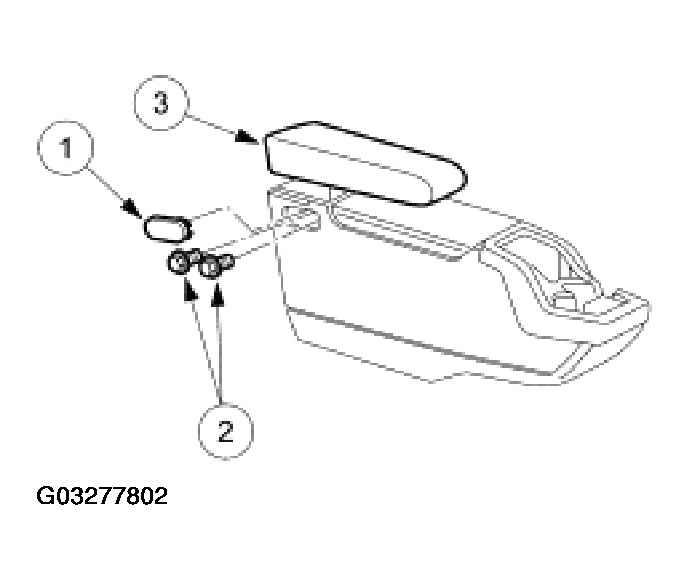

      Fig 1: Removing Front Seat Center Armrest
      G03277802Courtesy of FORD MOTOR CO.
  2. Remove the beverage tray.

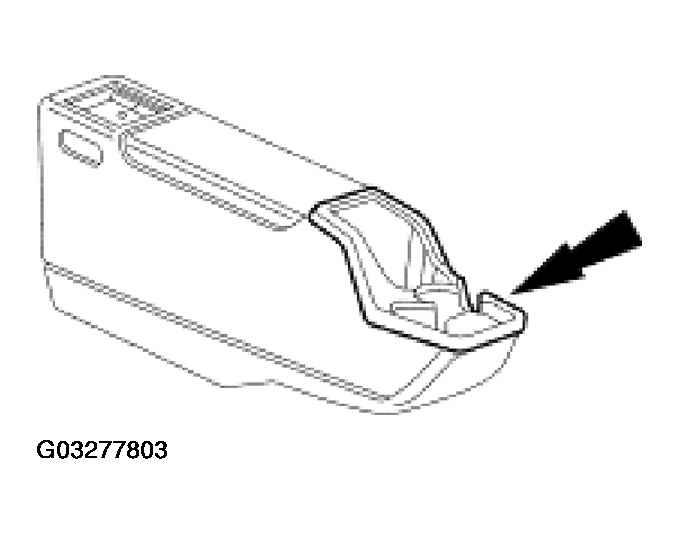

    Fig 2: Removing Beverage Tray
    G03277803Courtesy of FORD MOTOR CO.
  3. Remove the floor console.
    1. Remove the screws.
    2. Remove the floor console.

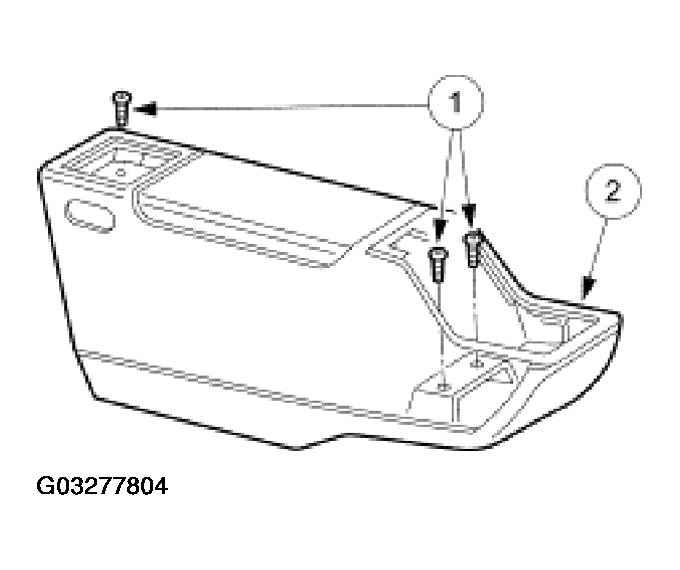

      Fig 3: Removing Floor Console
      G03277804Courtesy of FORD MOTOR CO.
