Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Position the window glass half-way up to gain access to the rivets.

Remove the front door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the watershield.

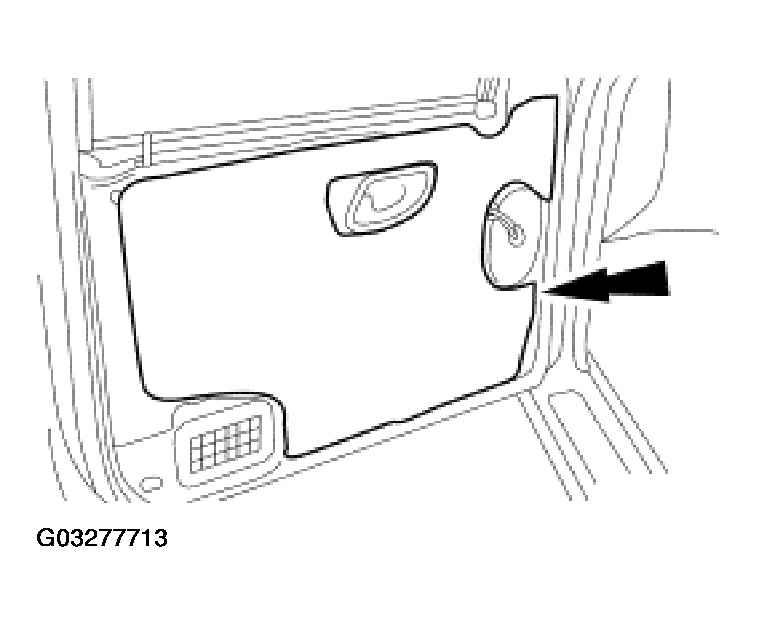

Fig 1: Removing Watershield
Courtesy of FORD MOTOR CO.
Remove the window glass rear run channel.
1. Remove the bolt.
2. Remove the window glass rear run channel.

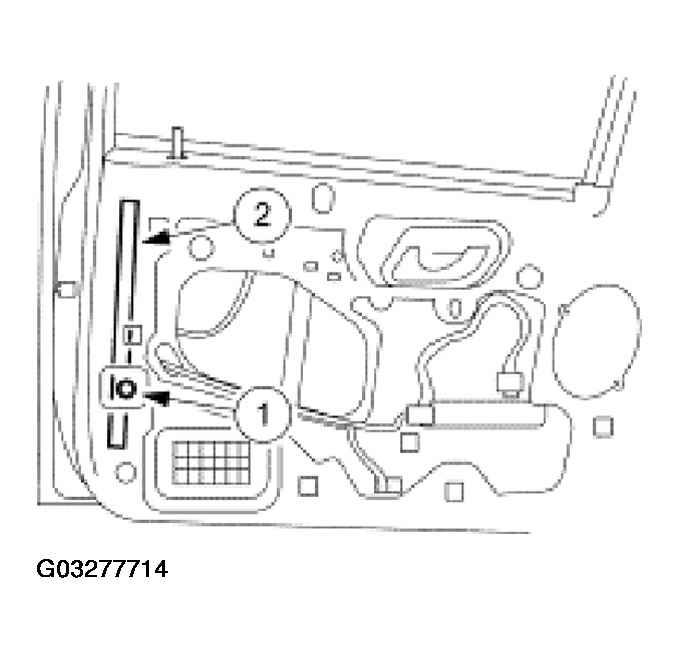

  Fig 2: Removing Window Glass Rear Run Channel
  Courtesy of FORD MOTOR CO.

NOTE: Support window glass before removing the rivets.

NOTE: To remove the rivets, use a drift punch to remove the steel centers and a 6 mm (1/4 in) diameter drill bit to remove the rivets.

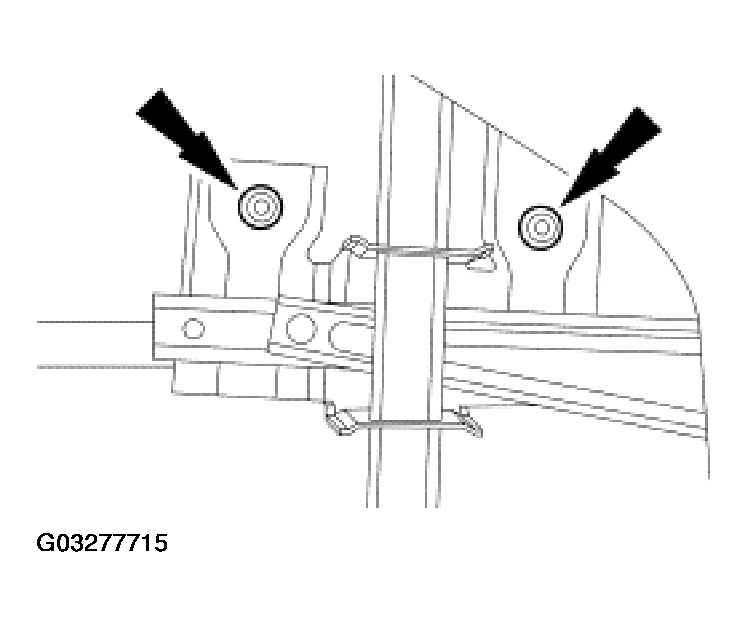

Fig 3: Removing Window Glass Rivets

Courtesy of FORD MOTOR CO.

Remove the window glass rivets.
Remove the front door window glass through the window opening.

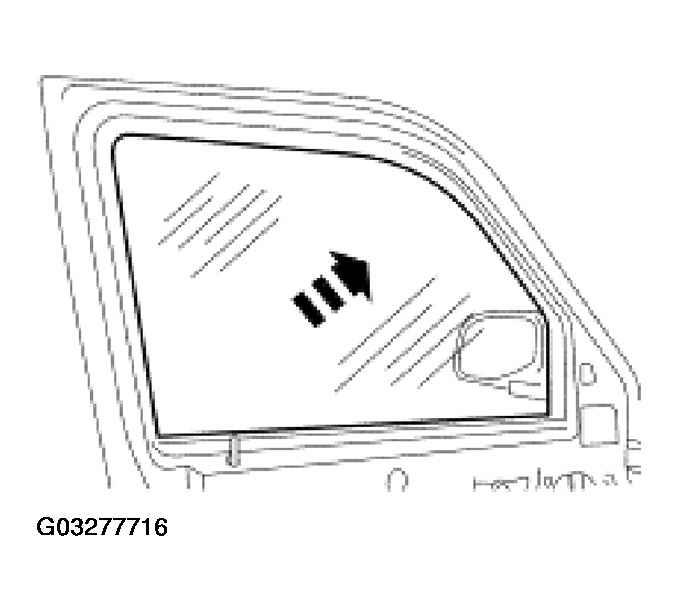

Fig 4: Removing Front Door Window Glass Through Window Opening
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Use Heavy Duty Riveter to install the new rivets.

  Fig 5: Installing New Rivets
  Courtesy of FORD MOTOR CO.
