Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the nuts.

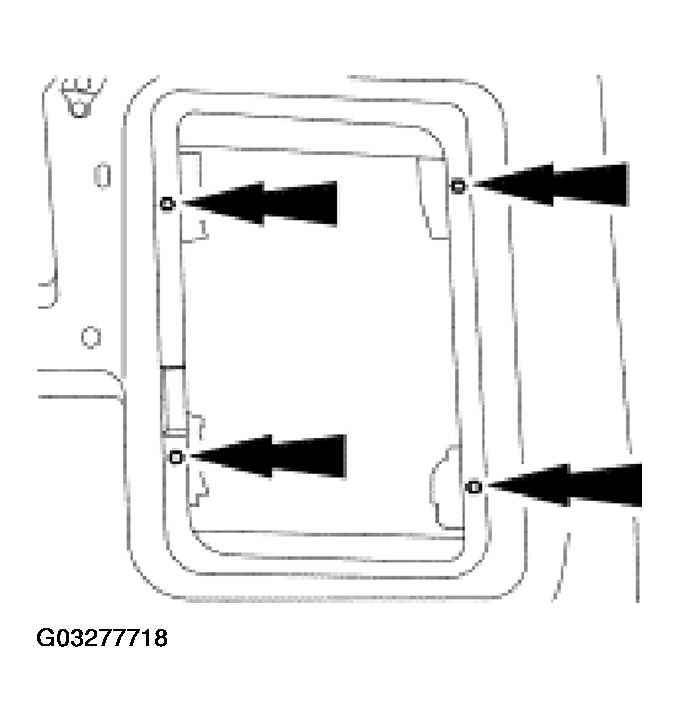

    Fig 1: Removing Nuts
    G03277718Courtesy of FORD MOTOR CO.
  3. Remove the fixed quarter window glass.
  4. To install, reverse the removal procedure.
    • Test the quarter window glass for water leaks.

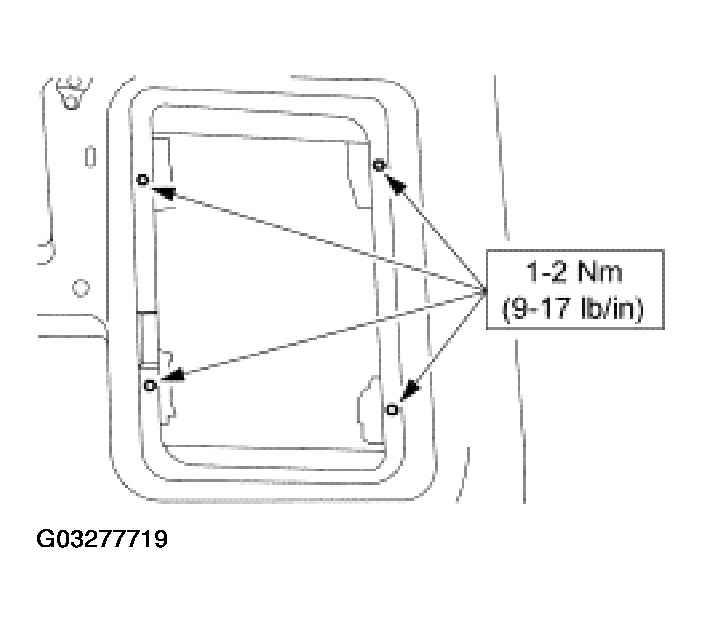

      Fig 2: Installing Nuts
      G03277719Courtesy of FORD MOTOR CO.
