Window Glass - Back: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the back window garnish moulding.

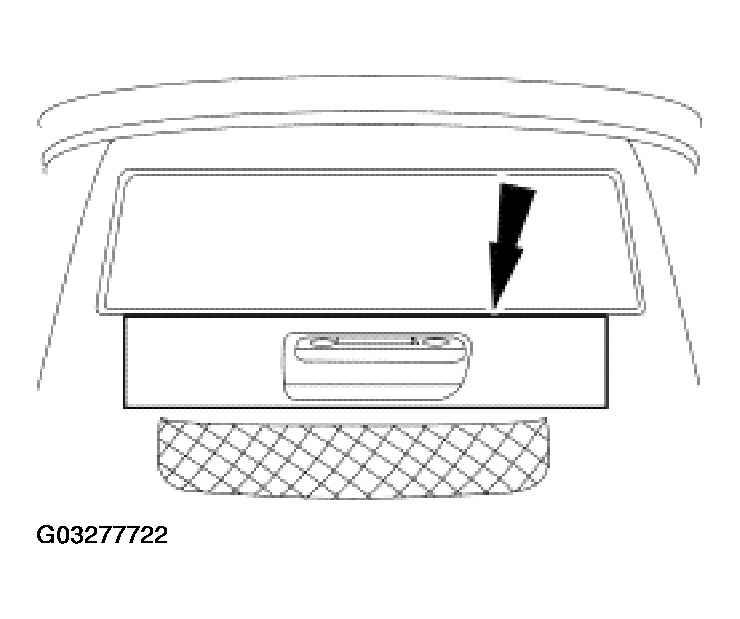

    Fig 1: Removing Back Window Garnish Moulding
    G03277722Courtesy of FORD MOTOR CO.
  2. Remove the headliner. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  3. Remove the back window glass.
    1. Remove the 8 nuts.
    2. Remove the back window glass.

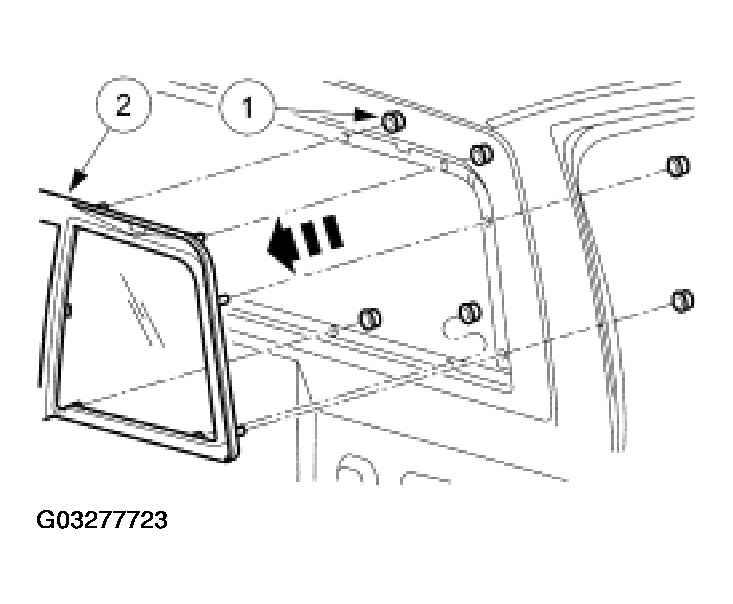

      Fig 2: Removing Back Window Glass
      G03277723Courtesy of FORD MOTOR CO.
